Furuno FELCOM 12 Installation Manual page 11

Cable Fabrication, Connector Attachment
Antenna cable connector at the Communication unit
How to attach the antenna cable connector N-P-5DFB/N-P-8DFB
Outer Sheath Dimensions in millimeters.
Armor
50
Cover with heat-shrink tubing and heat.
30
Clamp
Nut
Clamp Nut

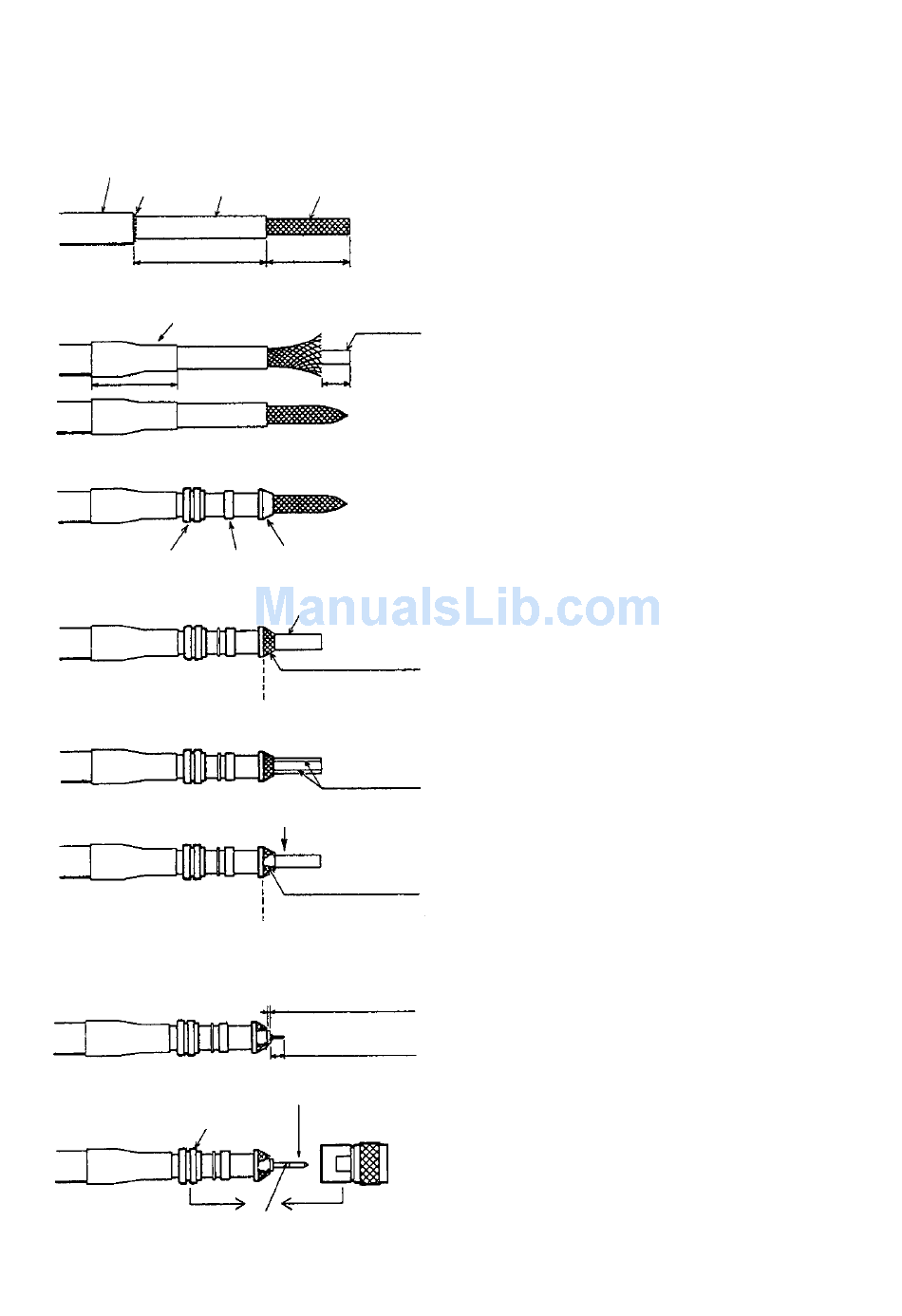

Figure 4-2 How to attach antenna cable connector N-P-5DFB/N-P-8-DFB
8
Inner Sheath Shield
30
10
Gasket Clamp
(reddish
brown)
Aluminum Foil
Trim shield here.
Insulator
Trim aluminum
tape foil here.
1
5
Pin
Shell
Solder through
the hole.
Remove outer sheath and armor by the
dimensions shown left.
Expose inner sheath and shield by the
dimensions shown left.
Remove insulator and core by 10 mm.
Twist shield end.
Slip on clamp nut, gasket and clamp as shown
left.
Fold back shield over clamp and trim.
Cut aluminum foil at four places, 90˚ from one
another.
Fold back aluminum tape foil onto shield and trim.
Expose the insulator by 1 mm.
Expose the core by 5 mm.
Slip the pin onto the conductor. Solder them
together through the hole on the pin.
Insert the pin into the shell. Screw the clamp
nut into the shell.
(Tighten by turning the clamp nut. Do not
tighten by turning the shell.)
