Furuno FELCOM 12 Installation Manual page 13

Connection between the Communication unit and the Distress alert unit/
Received call unit
At the Communication unit (Connector SRCN6A16-7P)
SOLDER UNUSED
CORES AND EARTH
WIRE TO BRAIDED
SHIELD
VINYL SHEATH
Connection between the Communication unit and a navigation device
At the Communication unit (Connector SRCN6A16-10P)
VINYL SHEATH
(OUTER)
10
2 cm
VINYL SHEATH
WIND VINYL TAPE

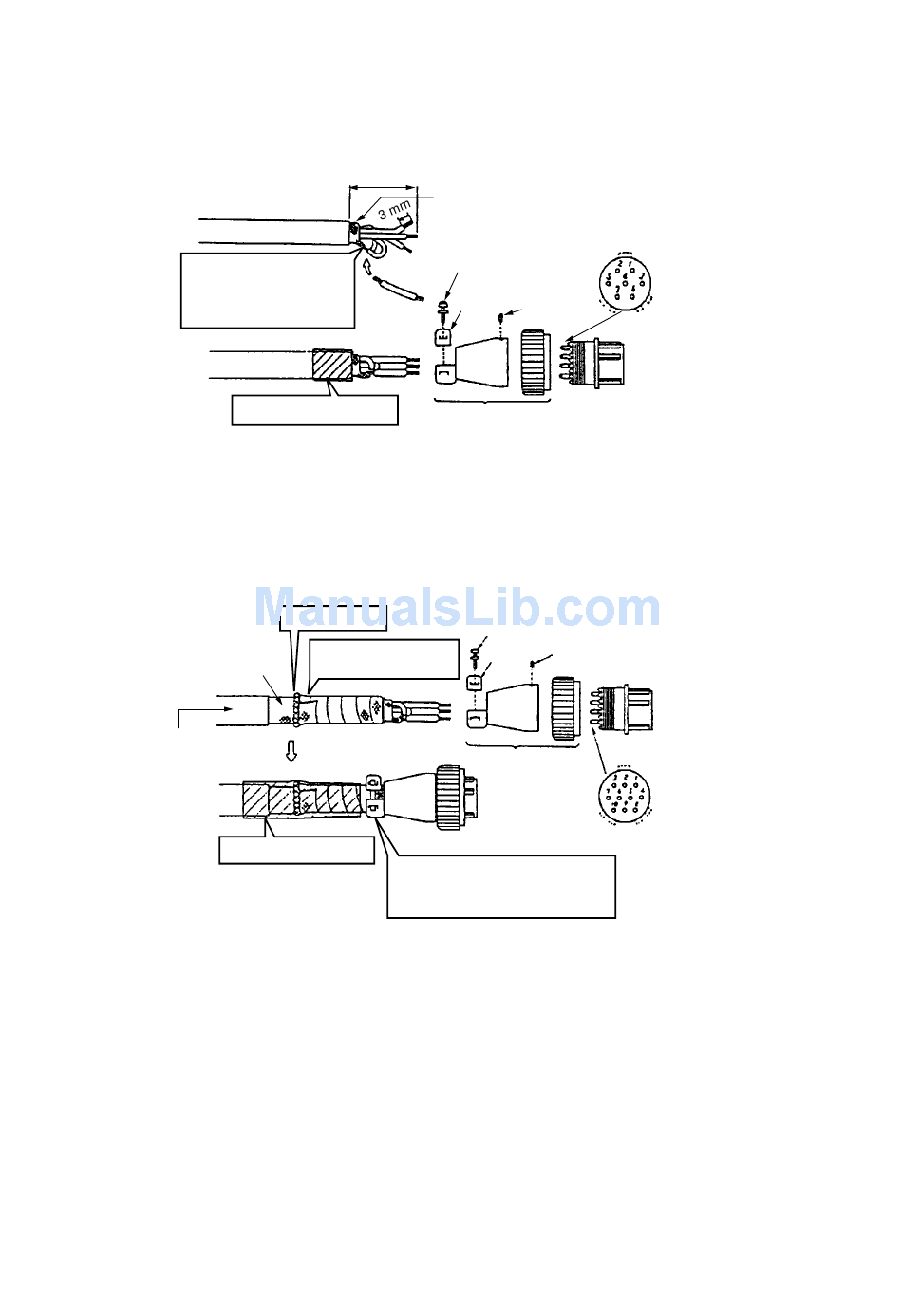

Figure 4-4 How to attach connector SRCN6A16-7P
SOLDERING
WIND SHIELDING
ARMOR
TAPE
WIND VINYL TAPE
Figure 4-5 How attach connector SRCN6A16-10P
BRAIDED SHIELD
SOLDERING-SIDE
EARTH
CLAMP FIXING
WIRE SCREW
CLAMP SET
SCREW
CONNECTOR CASE
CLAMP FIXING SCREW
CLAMP SET SCREW
CONNECTOR
CASE
SOLDERING-SIDE
CLAMP SHIELDING TAPE
WITH CONNECTOR CLAMP
TO GROUND
