How to attach the antenna cable connector N-P-12DSFA
Outer Sheath Dimensions in millimeters.
Armor Inner Sheath Shield
80
Nut
Washer
Clamp Nut

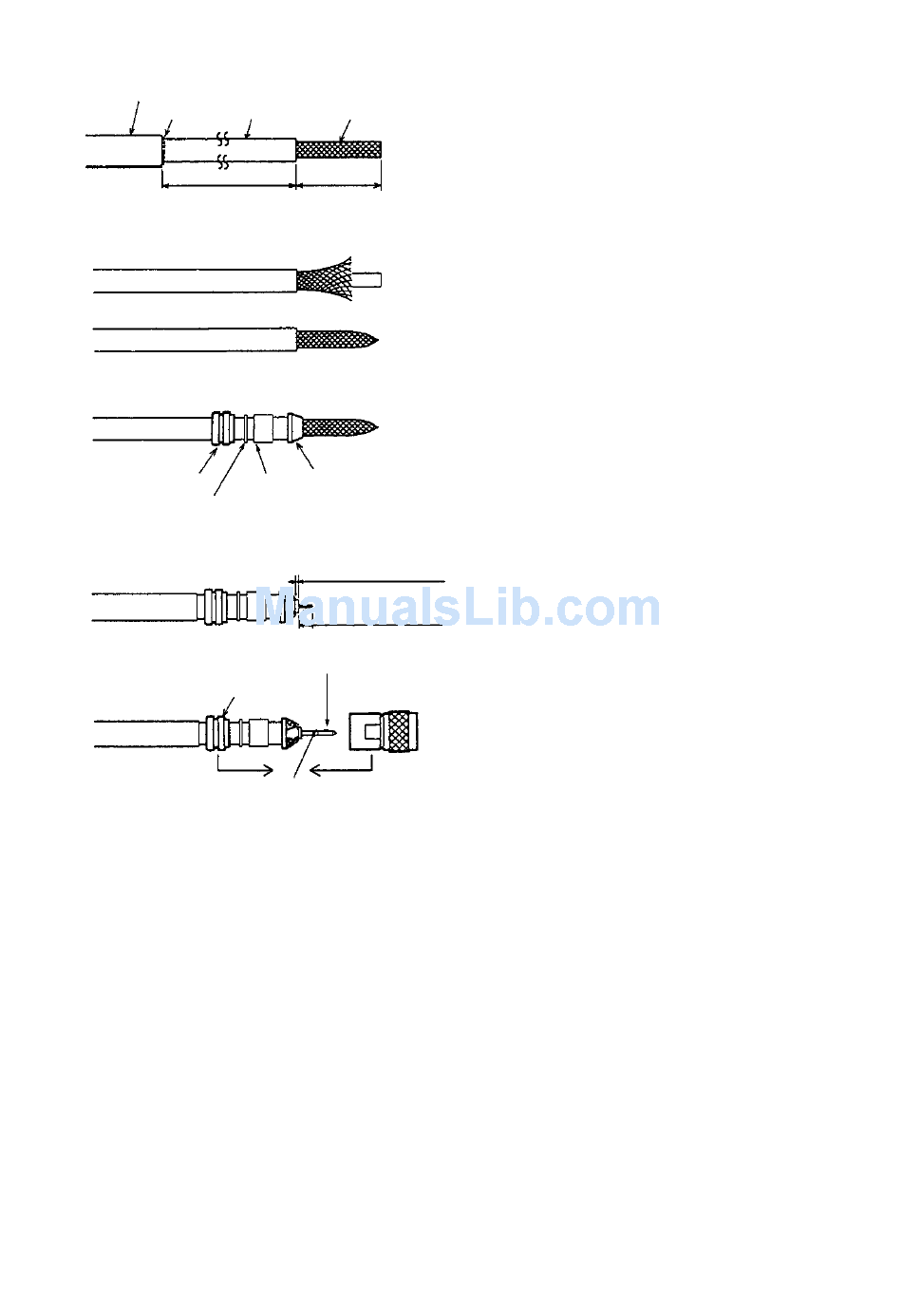

Figure 4-3 How to attach antenna cable connector N-P-12-DSFA
12
Gasket Clamp
1.8
4.5
Pin
Shell
Solder through
the hole.
Remove outer sheath and armor by the
dimensions shown left.
Expose inner sheath and shield by the
dimensions shown left.
Twist shield end.
Slip on clamp nut, gasket and clamp as shown
left.
Expose the insulator by 1.8 mm.
Expose the core by 4.5 mm.
Slip the pin onto the conductor. Solder them
together through the hole on the pin.
Insert the pin into the shell. Screw the clamp
nut into the shell.
(Tighten by turning the clamp nut. Do not
tighten by turning the shell.)
