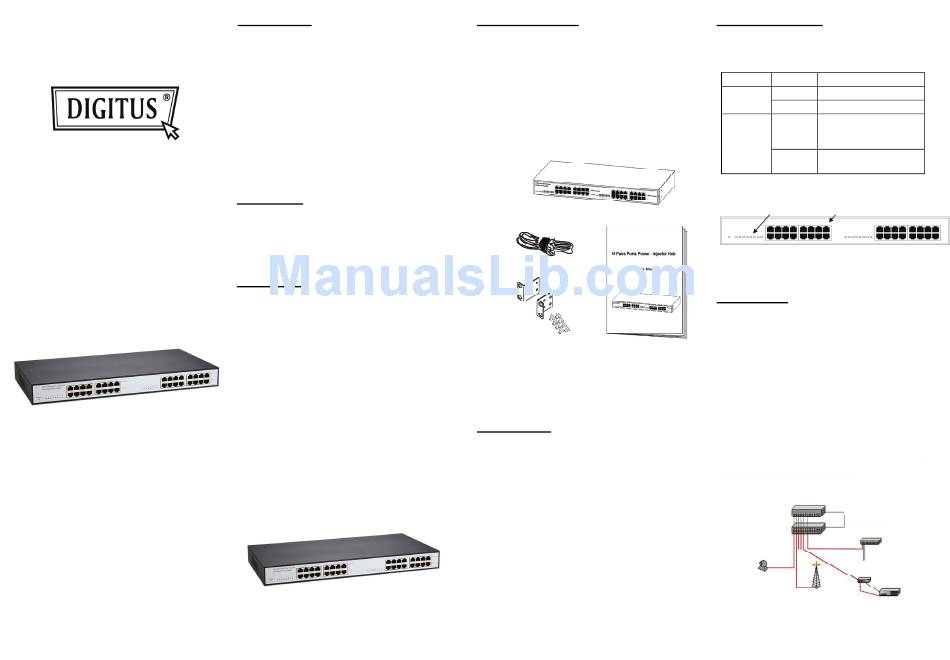

Digitus DN-95113 User Manual

32-port (16 Pair) PoE
Mid-Span Power Supply
User's Manual
DN-95113

FCC Warning

This device has been tested and found to
comply with limits for a Class A digital device,
pursuant to Part 15 of FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates and
radiates radio frequency energy and, if not
installed and used in accordance with the user's
manual, it may cause interference in which case
users will be required to correct interference at
their own expenses.

CE Warning

This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may be
required to take adequate measures.

Introduction

This PoE Mid-span is 16-pair port power supply
consisting of 16 Ethernet data input ports, and
16 Ethernet data output ports with 48V power
equipped, which is fully IEEE 802.3af compliant.
Any Ethernet "Data" cable can directly connect
to the input port and then come out "Data +
Power" from output port. It is smart plug and
play and very easy to install in any existing
networking system, to bring in PoE features
without any new reconfiguration.
The rack-mount size was specifically designed
for medium to large workgroups. The Switch can
be installed where space is limited; moreover it
provides smooth network migration and easy
upgrade to network capacity. The 483mm (19")
size can be rack-mount on cabinet.

Package Contents

Before you start to install this switch, please
verify your package that contains the following
items:
One PoE Mid-Span Power Supply

 Rack-mount Kit for Rack Installation
 One Power Cord
 One User's Manual
16 Pairs Ports Power- Injector Hub
User's Manual
Power Cord
Rack-mount Kit
Note: If any of these items is found missing or
damaged, please contact your local supplier for
replacement.

Key Features

 16 "Data" input ports compliant with
IEEE 802.3 10BaseT and IEEE 802.3u
100BaseTX
 16 "Data + Power" PSE/PoE output ports
compliant with IEEE 802.3 10BaseT, IEEE
802.3u 100BaseTX and IEEE 802.3af PoE
 Supporting the power Max. 15.4 W for each
PSE/PoE port
 Rack-mount size
 Each output port has output current limited,
short-circuit protection, complete Power
Device (PD) detection and classification
Smart plug & play


Front Panel (LEDs)

Led Indicators of 16 Pair Port PoE
Mid-Span Power Supply
LED Status Description
Power On Power is on.
Off Power is off.
PD Link On Port is connected to a
Power Device port and
supplies 48
Off No Power Device is
connected
LED-Display RJ-45 Port

Connections

Power Device/Existing Switch to this 16
Pair Port Mid-Span Power Supply
Use Cat. 5 twisted-pair cable from the existing
switch to the "Data" input port of this Mid-span
Power Supply, and then connect the "Data +
Power" output port to the Power Device, such
as Wireless AP, another switches with PD
function...etc.
Power-over-Ethernet Switches
Existing 10/100
Ethernet Switches
10/100 Mbps DATA
Power-over Ethernet
Power- injector Hub
(a) PSE ports PoE Switch with (1) PD port
10/100 Mbps DATA 10/100 Mbps DATA
+ POWER
IP camera with
PoE Support
Power-over Ethernet Spliter
10/100 Mbps DATA
Wireless Access Point
with PoE Support
POWER only
Terminal Server
(without PoE Support)
