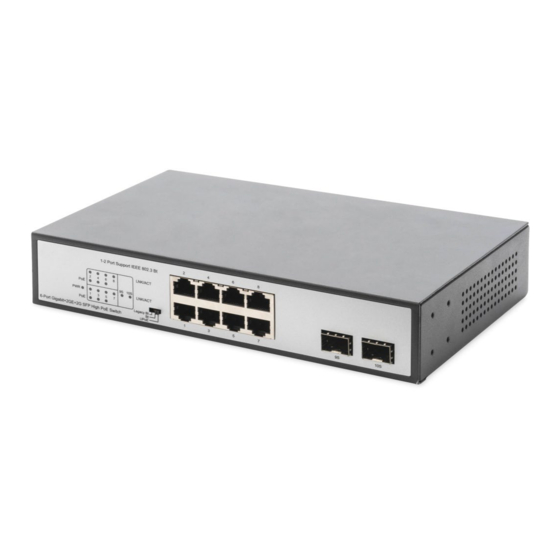

- Page 1 8-Port Gigabit Switch with 6 x PoE Ports, 2 x RJ45, 2 x SFP Uplink, 802.3 af/at/bt User Manual DN-95140...
- Page 2 Specifications ......................7 Introduction The DIGITUS® 8 Port Gigabit PoE Switch provides you with a multifunctional switch for many application scenarios. You can use all 8 ports for conventional network devices without a PoE supply. You can use six ports for PoE-cable network devices, two of those ports even with 90 watt (IEEE 802.3bt) per port.
- Page 3 Package Content Check the following contents of your package: • 1x PoE Switch • 1x User Guide • 1x Power Cord • 1x Accessories (4x Rubber Feet) • 1x Mounting Bracket set If any part is lost and damaged, please contact your local agent immediately. Hardware Description LED indicator 2x 10/100/1000 Mbps SFP Slot...
- Page 4 Front Panel (left) The Front Panel Consists of Ethernet Ports. The LED indicators are also located on the panel. DIP Switch: Control port 1-2 in different power supply modes Note: After change the mode, there is no need to restart manually to make the corresponding configuration take effect.
- Page 5 Installation the Switch This part describes how to install your Ethernet Switch and make connections to it. Please follow the following instructions in avoid of incorrect installation causing device damage and security threat. • Before cleaning the switch, unplug the power plug of the switch first. Do not clean the switch with wet cloth or liquid;...
- Page 6 Wall-mounted installation Fasten 2 screws in the wall at the distance of the switch mounting holes as shown in the drawing. Then you can mount the switch on the wall by hooking the screws into the mounting holes. Turn on the switch Please connect the AC power cord into the rear of the switch and to an electrical outlet (preferably one that is grounded).
- Page 7 Specifications 8-Port Gigabit Switch mit 6 x PoE-Ports, 2 x RJ45, Model 2 x SFP Uplink, IEEE 802.3 af/at/bt IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3i, Standard IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3az 1000BASE-T: UTP category 5e cable (≤100m) Network Media 10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5 cable (≤100m)
