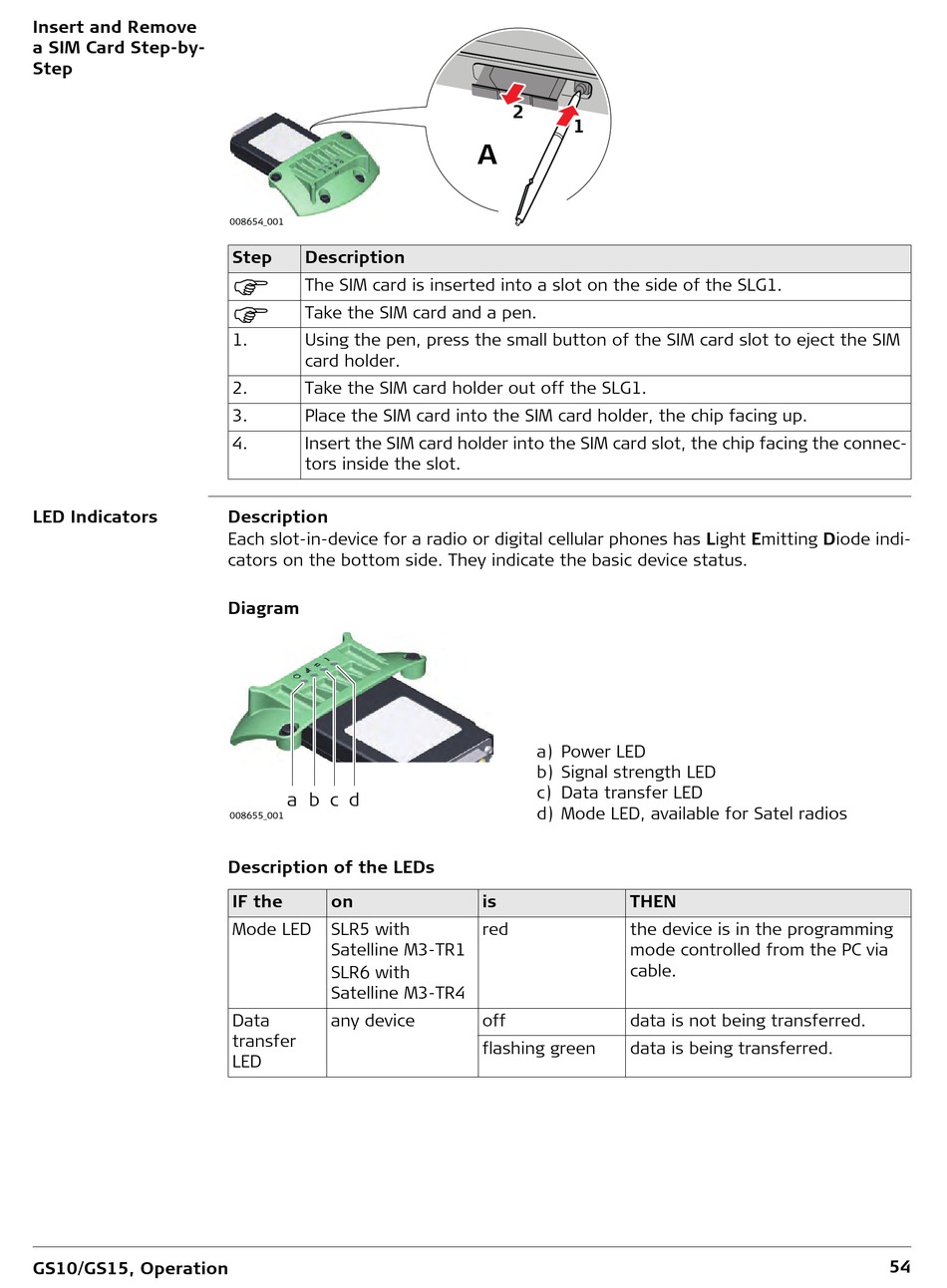

Insert and Remove
a SIM Card Step-by-
Step
LED Indicators
GS10/GS15, Operation
008654_001
Step Description

The SIM card is inserted into a slot on the side of the SLG1.

Take the SIM card and a pen.
1. Using the pen, press the small button of the SIM card slot to eject the SIM
card holder.
2. Take the SIM card holder out off the SLG1.
3. Place the SIM card into the SIM card holder, the chip facing up.
4. Insert the SIM card holder into the SIM card slot, the chip facing the connec-
tors inside the slot.
Description
Each slot-in-device for a radio or digital cellular phones has Light Emitting Diode indi-
cators on the bottom side. They indicate the basic device status.
Diagram
a b c d
008655_001
Description of the LEDs
IF the on
Mode LED SLR5 with
Satelline M3-TR1
SLR6 with
Satelline M3-TR4
Data any device
transfer
LED
2
1
A
a) Power LED
b) Signal strength LED
c) Data transfer LED
d) Mode LED, available for Satel radios
is THEN
red the device is in the programming
mode controlled from the PC via
cable.
off data is not being transferred.
flashing green data is being transferred.
