Leica Viva Quick Guide

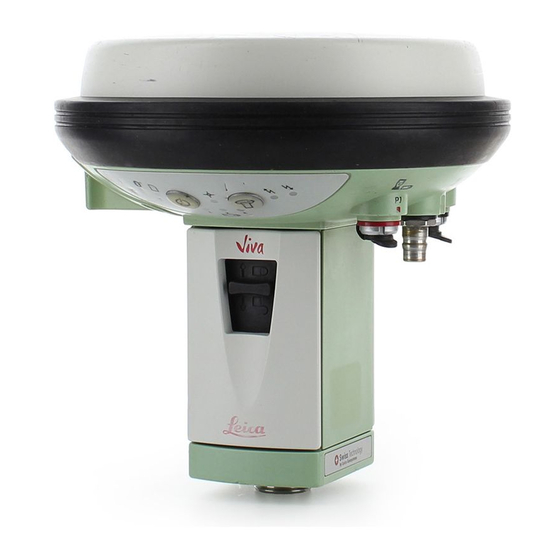

Leica Viva: GS15 Base and Rover Set up
This guide will go through the necessary steps to
configure GS15's to be used with Pacific Crest ADL
radios, as a reference and rover RTK set up, using one
CS10/CS15 and making use of the Rover and Base Worlds.
1. Configuring the Base Sensor for Pacific Crest PDL or
ADL Radios.
2. Starting the Base, recording Static Data at the Base
and Base Status messages.
3. Configuring the Rover Sensor.
Leica Geosystems Ltd
Davy Avenue, Knowlhill
Milton Keynes. MK5 8LB
Technical Support Phone. +44 1908 256 529
Email: uk.support@leica-geosystems.com
www.leica-geosystems.co.uk
Advertisement
Related Manuals for Leica Viva GS15
Summary of Contents for Leica Viva GS15
- Page 1 Leica Viva Quick Guide Leica Viva: GS15 Base and Rover Set up This guide will go through the necessary steps to configure GS15’s to be used with Pacific Crest ADL radios, as a reference and rover RTK set up, using one CS10/CS15 and making use of the Rover and Base Worlds.
-
Page 2: Step Instruction
GS15 Base & Rover Setup Leica Viva Quick Guide ▪ Leica GS15 Base and Rover Setup – Configuring the Base Sensor Step Instruction Screenshots Position the GS15 to be used as the base sensor, and switch it on. If you wish to use a GEB171 battery, connect it to P1 on the underside. - Page 3 All Other Connections Screen. If using a blue PDL base radio, go to step 1.6 If using the ADL radio slotted into the GS15, go to step 1.9 Leica Geosystems UK Technical Support Group 3/10...
- Page 4 GS15 Base & Rover Setup Leica Viva Quick Guide ▪ Leica GS15 Base and Rover Setup – Configuring for PacCrest Blue PDL Radio Step Instruction Screenshots Make sure the blue PDL base radio is connected to P2 on the underside of the GS15.
- Page 5 GS15 Base & Rover Setup Leica Viva Quick Guide ▪ Leica GS15 Base and Rover Setup – Configuring for PacCrest ADL Base Radio Step Instruction Screenshots Tick the Transmit RTK base info box, select GS Port 3 for Connect using, and RTK Data Format to be Leica.
- Page 6 Note the 1.13 radio channel number. The rover radio will need to be set to the same channel number later. Press OK. 1.14 Press OK until you are back at the Base Menu. Leica Geosystems UK Technical Support Group 6/10...
- Page 7 GS15 Base & Rover Setup Leica Viva Quick Guide ▪ Leica GS15 Starting the Base, Recording Static Data & Base Status Messages Step Instruction Screenshots To log static data while the base is running, insert an SD card into the slot in battery compartment 1 of the GS15.
- Page 8 When you are ready to return to the Rover menu, press then The Bluetooth with disconnect from the base GS15, and connect to the rover GS15. Leica Geosystems UK Technical Support Group 8/10...
- Page 9 GS15 Base & Rover Setup Leica Viva Quick Guide ▪ Leica GS15 Configuring the Rover Sensor Step Instruction Screenshots If the CS15 Bluetooth connects to the rover GS15, then the Bluetooth pairing has already been set up. Go straight to Step 3.3.
- Page 10 RTK Data format to be Leica. Once you have completed the configuration, the connection status page should have all boxes ticked, and the lightning strike will be pulsing. Press next. You will now be ready to survey. Leica Geosystems UK Technical Support Group 10/10...
