- Page 1 Leica GS10/GS15 Quick Guide Version 1.0 English...
- Page 2 GS10/GS15, Important Information about your Instrument Important Information about your Instrument Read and follow the User Manual on the accompanying DVD before using the product. Keep for future reference! Intended use • Computing with software. • Carrying out measurement tasks using various GNSS measuring techniques.
- Page 3 • FCC Part 15, 22 and 24 (applicable in US) Conformity • Hereby, Leica Geosystems AG, declares that the product GS10 is in compliance to national with the essential requirements and other relevant provisions of Directive regulations 1999/5/EC. The declaration of conformity can be consulted at http://www.leica-geosystems.com/ce.
- Page 4 Conformity • FCC Part 15, 22 and 24 (applicable in US) • Hereby, Leica Geosystems AG, declares that the product GS15 is in compliance to national with the essential requirements and other relevant provisions of Directive regulations 1999/5/EC. The declaration of conformity can be consulted at http://www.leica-geosystems.com/ce.
-
Page 5: Instrument Components

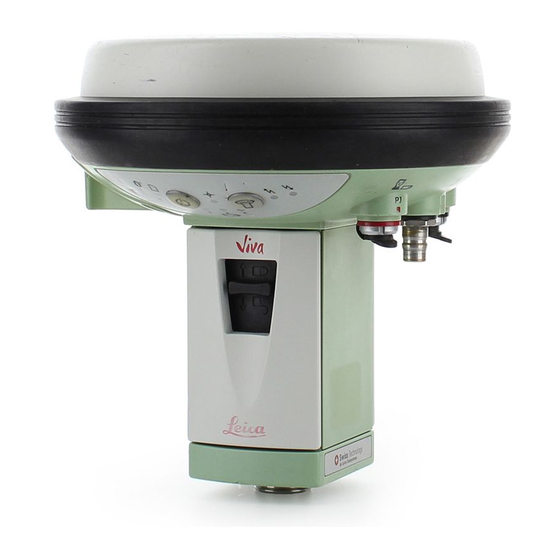

LEMO port P3 Power port g) Antenna port h) LED indicators Battery compartment A including SD card compartment Battery compartment B c d e f g k) LEMO port P2 GS_081 LEMO port P1 including USB port GS10/GS15, Instrument Components... - Page 6 GS10/GS15, Instrument Components GS15 components a) RTK device compartment including port P3 b) RTK device LEDs c) Battery compartment 2 d) LEDs, ON/OFF button and Function button e) LEMO port P1 including USB port QN-connector for external UHF or digital cellular phone antenna...
- Page 7 Keyboard GS10 a) ON/OFF button b) Function button GS_082 Keyboard GS15 a) ON/OFF button b) Function button GS_080 GS10/GS15, Instrument Components...
-
Page 8: Technical Data
GS10/GS15, Technical Data Technical Data Environmental Temperature specifications Operating temperature [°C] Storage temperature [°C] -40 to +65 -40 to +80 Protection against water, dust and sand IP67 (IEC 60529) Humidity Up to 100 %. The effects of condensation are to be effectively counteracted by periodically drying... -
Page 9: Care And Transport
Care and Transport Care and transport • Carry the product in its original container or carry the tripod with its legs splayed across your shoulder, to protect the product against shock and vibration. GS10/GS15, Care and Transport... -
Page 10: Operation
GS10/GS15, Operation Operation The battery must be charged before using it for the first time. Turning on and off the instrument GS_131... - Page 11 GS10/GS15, Operation...
- Page 12 International Standards of Quality Management and Quality Systems (ISO standard 9001) and Environmental Management Systems (ISO standard 14001). Ask your local Leica Geosystems dealer for more information about our TQM program. Leica Geosystems AG Heinrich-Wild-Strasse...
