Installation

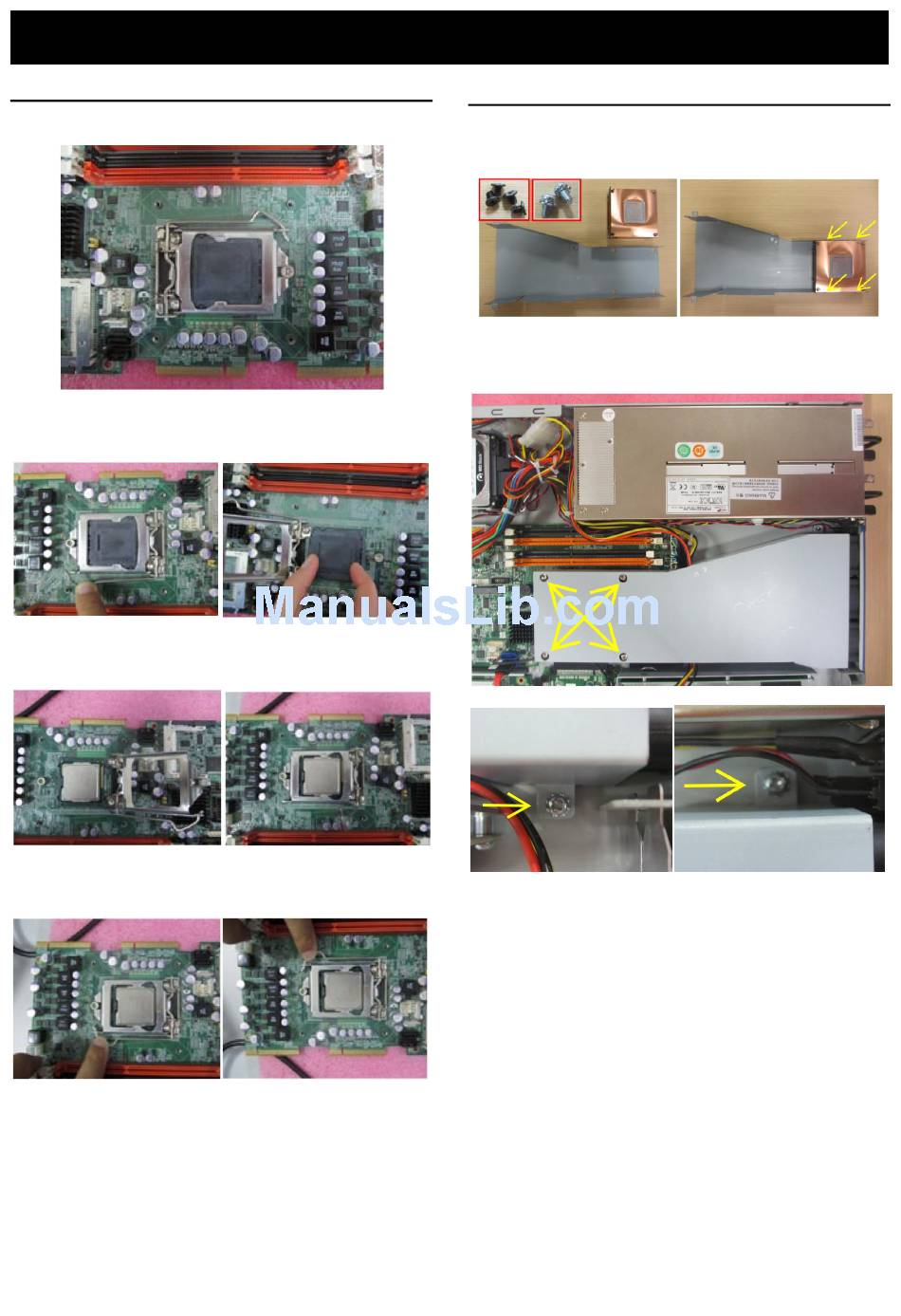

Installing the CPU

1. Locate the CPU sockets on the board
2. Taking one CPU at a time, remove the protective shield, if
present, and press the load lever and move it out till it is clear of
the retention tab, and raise it.
3. Make sure that alignment triangle on the CPU lines up with
the correct corner on the socket, and ease the CPU into place.
4. Close the load plate and push the load lever back down until
it engages the retention tab.
Installing the heatsink and air scoop
1. Take out the heatsink, air scoop,2pcs of silvery screws and
4pcs of black screws;Place the heatsink into air scoop and lock
them with the 4pcs black screw as the picture shows.
2. Put the air scoop and heatsink on the board. Insert and
tighten the heatsink screws on the diagonal. Then make the
scoop fixed on the chassis with the silvery screws.
