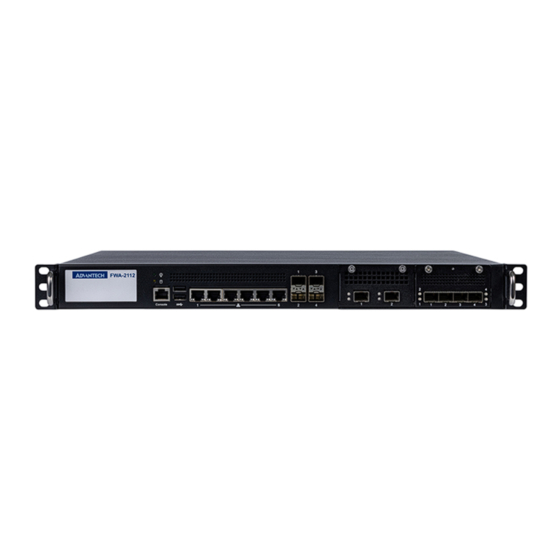

Advantech FWA-2112 User Manual
  1. Manuals
  2. Brands
  3. Advantech Manuals
  4. Network Hardware
  5. FWA-2112
  6. User manual

Advantech FWA-2112 User Manual

Network security platform
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
FWA-2112
Network Security Platform

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FWA-2112 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech FWA-2112

Summary of Contents for Advantech FWA-2112

  • Page 1 User Manual FWA-2112 Network Security Platform...
  • Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 3 Product Warranty (2 years) Advantech warrants the original purchaser that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or products that have been subject to misuse, abuse, accident, or improper installation.
  • Page 4 Declaration of Conformity FCC Class A This equipment has been tested and found to comply with the limits for a Class A dig- ital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro- vide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 5 Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service centre for technical support if you need additional assistance. Worldwide con- tact information can be found on www.advantech.com.Please have the following...
  • Page 6 Safety Instructions Read these safety instructions carefully. Keep this User Manual for later reference. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. For plug-in equipment, the power outlet socket must be located near the equip- ment and must be easily accessible.
  • Page 7 ZONE D'ACCES RESTREINTE: L'équipement ne doit être installé que dans une zone d'accès restreint. AVERTISSEMENT: Cet ensemble d'instructions est donné conformément à la CEI 704-1. Advantech décline toute responsabilité quant à l'exactitude des déc- larations contenues dans ce document. FWA-2112 User Manual...
  • Page 8 安全指示 请仔细阅读此安全操作说明。 请妥善保存此用户手册供日后参考。 用湿抹布清洗设备前，请从插座拔下电源线。请不要使用液体或去污喷雾剂清洗 设备。 对于使用电源线的设备，设备周围必须有容易连接到的电源插座。 请让设备远离潮湿环境。 请在安装前确保设备放置在可靠的平面上，意外跌落可能会导致设备损坏。 设备外壳的开口是用于空气对流，从而防止设备过热。请不要覆盖这些开口。 当您连接设备到电源插座上前，请确认电源插座的电压是否符合要求。 请将电源线安置在人们不易绊到的位置，并不要在电源在线覆盖任何杂物。 请注意设备上的所有警告和注意标语。 如果长时间不使用设备，请将设备与电源插座间的电线断开，避免设备被超目标 电压波动损坏。 请不要让任何液体流入通风口，以免引起火灾或者电路短路。 请不要自行打开设备。为了确保您的安全，请由经过认证的工程师来打开设备。 如遇下列情况，请由专业人员来维修： 电源线或者插头损坏。 设备内部有液体流入。 设备曾暴露在过于潮湿的环境中使用。 设备无法正常工作，或您无法通过用户手册来使其正常工作。 设备跌落或者损坏。 设备有明显的外观破损。 请不要把设备放置在超出我们建议的温度范围的环境，即不要低于 0°C(-20°C ~ -4°F) 或高于 40°C(60°C ~ 140°F)，否则可能会损坏设备。 注意：如果电池放置不正确，将有爆炸的危险，因此，只可以使用制造商推荐的 同一种或者同等型号的电池进行替换。请按照制造商的指示处理已使用过的电 池。 根据 IEC 704‐1:1982 规定，设备产生的音量不高于 70 分贝。 免责声明：请安全训示符合...

  • Page 9: Table Of Contents

    Command and Usage ..............21 Advanced LAN Bypass Control Utility ............. 22 1.8.1 Introduction ................. 22 1.8.2 Command and Usage ..............23 NDI (Network Device Identifier)............... 25 1.9.1 Introduction ................. 25 1.9.2 Command and Usage ..............25 Appendix A Glossary ..........27 FWA-2112 User Manual...
  • Page 10 FWA-2112 User Manual...
  • Page 11 Chapter Linux Platform Software Guide Introduction...

  • Page 12: Introduction1

    Centos7.7 3.10.0-1062.4.1.el7.x86_64 1.1.5 Files and Software Tools The followings are files and software tools which are needed for demonstration with this guide, contact your local Advantech FAE for these files and software tools. Software tools & driver Version Description wdt_nct5523 0.04...

  • Page 13: Watchdog Function

    /dev/watchdog successfully. # sudo wd_identify wdat_wdt If the command output is ‘device or resource busy’, use the following command to free the watchdog device. # pkill -9 watchdog FWA-2112 User Manual...

  • Page 14: Watchdog On Hwm

    # sudo watchdog -f -c ~/watchdog_test.conf 1.2.2 Watchdog on HWM SuperIO watchdog could be accessed by Linux I/O port 0x2E/0x2F. Advantech pro- vides sample code to demonstrate watchdog function on SuperIO. This sample code is written in C language, nct5523.c, nct5523.h. Most important watchdog instructions are in function nct5523.c.
  • Page 15 Enter following command and the system will reboot after 5 seconds. (Please do not do it in a service online system.) # sudo ./ wdt_nct5523 5 s FWA-2112 User Manual...

  • Page 16: Gpio Function

    PCH_GPIO2 NCSI_ARB_IN PCH_GPIO3 NCSI_ARB_OUT For more details about LED Defined, please refer to the FWA-2112 User’s Manual. Note! On current BIOS V005, please set Chipset->Relax Security [Disabled] firstly. For control GPIOs, kernel’s GPIO sysfs which provide file interface in user space, however, it have to re-compile kernel if configuring kernel to enable it.

  • Page 17: Hw Gpio

    Linux distribution enabled GPIO sysfs by default like Ubuntu, and some are not like Fedora/CentOS. Please check CONFIG_GPIO_SYSFS and CONFIG_GPIO_ICH in kernel config to confirm if GPIO sysfs is enabled. For more details about kernel config and compile, please refer to https://kernelnewbies.org/KernelBuild. FWA-2112 User Manual...
  • Page 18 60: -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- 70: -- 71 -- -- -- -- -- -- Open smbus switch, 0x71, channel 8 for I/O expender. # i2cset -y 8 0x71 0x80 FWA-2112 User Manual...
  • Page 19 “0000 0000”, which means pin 0 to 7 and pin 8 to 15 is set to bit “0” (out- put mode). Please note pin number could be different due to hardware configuration, product SKU, please contact Advantech FAE if you have problem with this pin map- ping.
  • Page 20 For FWA-2112, pin mapping are defined as below: LED Name GPIO_0 GPIO_8 GPIO_1 GPIO_9 GPIO_2 GPIO_10 GPIO_3 GPIO_11 GPIO_4 GPIO_12 GPIO_5 GPIO_13 GPIO_6 GPIO_14 GPIO_7 GPIO_15 Control GPIOs. # sudo i2cset -y 8 0x23 0x02 0xff (GPIO0~7 high) # sudo i2cset -y 8 0x23 0x03 0xff...
  • Page 21 (chan_id 0) SMBus adapter i2c-16 smbus i2c-8-mux (chan_id 7) SMBus adapter i2c-7 igb BB I2C adapter i2c-14 smbus i2c-8-mux (chan_id 5) SMBus adapter i2c-5 igb BB I2C adapter i2c-12 smbus i2c-8-mux (chan_id 3) SMBus adapter FWA-2112 User Manual...
  • Page 22 # echo 355 > /sys/class/gpio/export # echo 356 > /sys/class/gpio/export # echo 357 > /sys/class/gpio/export # echo out > /sys/class/gpio/gpio342/direction # echo out > /sys/class/gpio/gpio343/direction # echo out > /sys/class/gpio/gpio344/direction # echo out > /sys/class/gpio/gpio345/direction # echo out > /sys/class/gpio/gpio346/direction FWA-2112 User Manual...

  • Page 23: Lcm Reset

    LCM will be down, and LCM will back to online when it is disabled. The LCM reset is controlled by the denverton pinctrl GPIO, thus GPIO device id need to be find first before control it. For FWA-2112, GPIO are defined as below: GPIO Name Software Controllable...

  • Page 24: Command Example

    112: INTC3000:00 GPIOS [470 - 501] PINS [112 - 143] 144: INTC3000:00 GPIOS [502 - 511] PINS [144 - 153] Expose the GPIO pins and set it to output mode. # echo 422 > /sys/class/gpio/export # echo out > /sys/class/gpio/gpio422/direction FWA-2112 User Manual...

  • Page 25: Fru Utility

    Retrieve FRU information for the system and motherboard: #sudo ./afru -R Found device on bus 8 FRU Information =============== Chassis Part Number: FWA-2112 Chassis Type: Rack Mount Chassis Chassis Serial Number: KSA1234567 Board Mfg: Advantech Board Mfg Date: UTC Mon May 11 15:50:00 2020...

  • Page 26: Other Command Options

    Product Part Number: FWA-2112-00A1E Product Version: A101-1 Product Serial: KSA1234567 Multirecord data 1: 05 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 Retrieve FRU information for the system on NMC card.

  • Page 27: Sensors

    A configuration file has been prepared for your platform in the ‘conf’ folder, type fol- lowing command to show all sensor values. Please note different platform or SKU might need different configuration files. Please contact Advantech AE if there is prob- lem about it.

  • Page 28: Lm-Sensors

    FAN sensors on platforms without BMC. Refer to https:// linux.die.net/man/1/sensors for more details about lm-sensors. A kernel driver of nct6106 for Advantech NCG platform is necessary to make the lm- sensors work, insert the Advantech sample nct6106.ko. Please contact Advantech FAE for sample driver of nc6106.
  • Page 29 -v, --version Display the program version Use `-' after `-c' to read the config file from stdin. If no chips are specified, all chip info will be printed. Example chip names: lm78-i2c-0-2d*-i2c-0-2d lm78-i2c-0-**-i2c-0-* lm78-i2c-*-2d*-i2c-*-2d lm78-i2c-*-**-i2c-*-* lm78-isa-0290*-isa-0290 lm78-isa-**-isa-* lm78-* FWA-2112 User Manual...

  • Page 30: Psu-Status

    Status, which is the utility described here. PSU-Status is a user space command line utility developed for Non-BMC platform. It provides usability to read and show out status of PSU. Please note, readable status is depends on what PSU provide and support. FWA-2112 User Manual...

  • Page 31: Command And Usage

    1.7.2 Command and Usage Detailed commands and usages please refer to PSU-Status user manual. Please contact Advantech FAE to get it. The following is usage: #sudo ./aps -h PSU-Status for reading sensors with PMbus. Usage: aps [OPTION] Sort entries alphabetically [-h], Show this help message [-p], Platform name.

  • Page 32: Advanced Lan Bypass Control Utility

    Advance LAN Bypass Control Utility (SLA required) is for control advance LAN Bypass. The host software can access the LAN bypass micro controllers in the sys- tem in order to change behaviour and to activate and use features like the integrated watchdog functionality. FWA-2112 User Manual...

  • Page 33: Command And Usage

    1.8.2 Command and Usage Detailed commands and usages please refer to Advance LAN Bypass Control Utility user manual. Please contact Advantech FAE to get it. The following is usage: #sudo ./lbpcu Usage: LBPCU {op} {op}: The operation you want to do.
  • Page 34 FUN: 0 TYPE: PCIE Following is a sample of run this utility. # sudo ./lbpcu -VF a ================================================ Seg 1 : Firmware version: 01.22 ================================================ Seg 2 : Firmware version: 01.22 ================================================ # sudo ./lbpcu -LoadDefault a COPPER FWA-2112 User Manual...

  • Page 35: Ndi (Network Device Identifier)

    (eth devices’ name, bus, id, subsystem id, slot name, panel name, fea- ture, and model name of Advantech.). Advantech provides a Linux command line util- ity that uses the libapdi library. The utility can also be used in scripts, rather than requiring full integration of the libapdi library into applications.
  • Page 36 APDI can't identify the slot number to output corresponding seg number. (u) means this NIC device is from USB. The vid and did are from USB. (!!) means there is no valid type 9/41 SMBIOS record. Please contact Advantech. FWA-2112 User Manual...

  • Page 37: Appendix A Glossary

    Appendix Glossary...
  • Page 38 Terminology Description ACPI Advanced Configuration and Power Interface specification AHCI Advanced Host Controller Interface APIC Advanced Programmable Interrupt Controller Alert Standard Format Ball Grid Array BIST Built-in self test Base Board Management Controller BSCAN Boundary Scan Connector Boot Strap Processor Fourth generation Double Data Rate SDRAM memory technol- DDR4 Direct Memory Access...
  • Page 39 Platform Event Trap Physical Layer Device PICMG PCI Industrial Computer Manufacturers Group Quick Path Interconnect. A cache-coherent, link-based inter- connect specification for Intel Processors, chipsets, and I/O bridge Redundant Array of Inexpensive Disks or Redundant Array of RAID Independent Disks A unit of DRAM corresponds to four to eight devices in parallel, RANK ignoring ECC.
  • Page 40 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2021...
