i323-411EX
remove these bolts
remove these
bolts
remove these
covers
The ignition must be turned OFF before
installation.

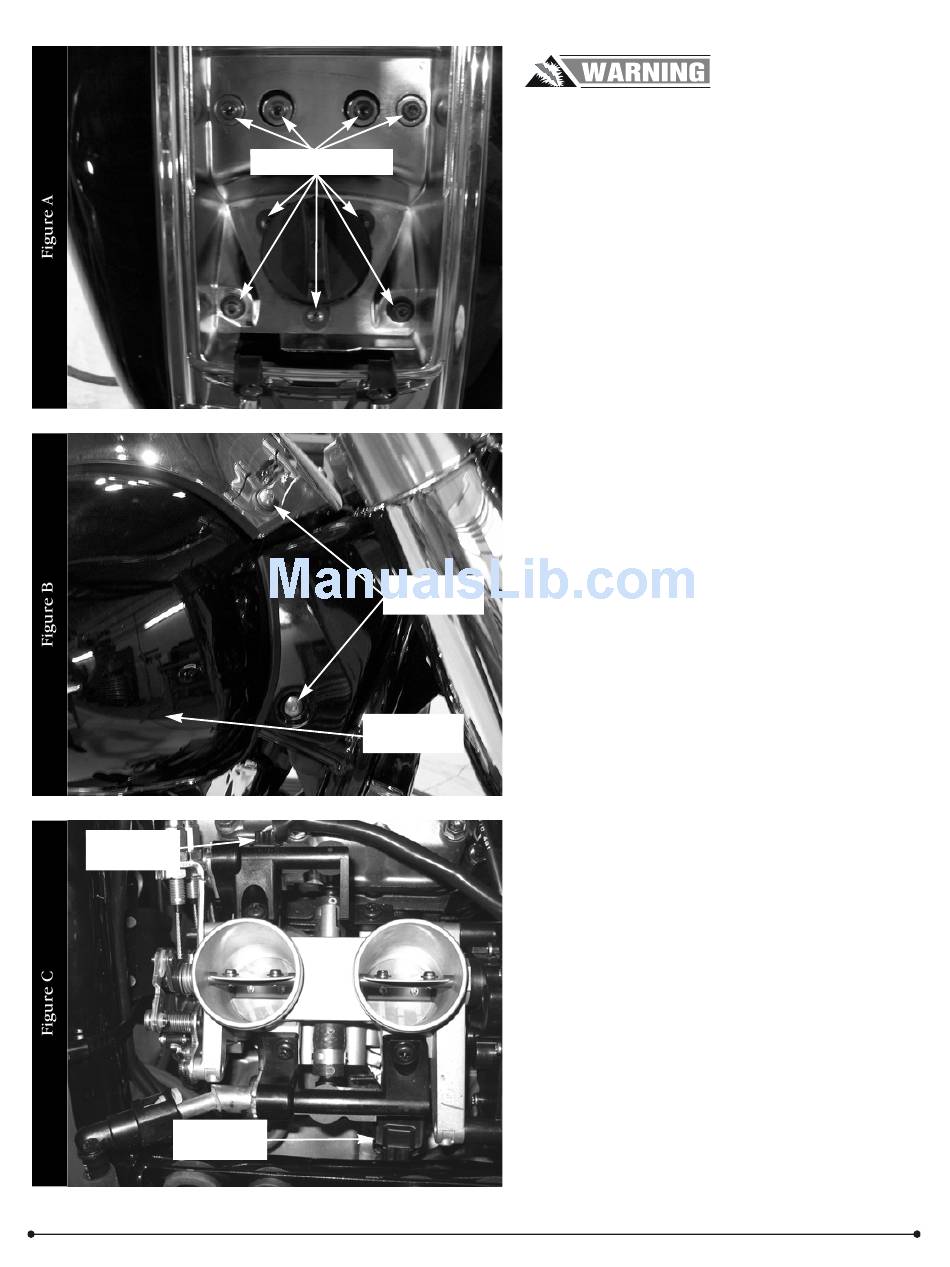

1
Remove the main seat and the passenger seat.
2
Remove the center gauge cluster as shown in
Figure A.
3
Remove the right and left cosmetic covers as
shown in Figure B.
4
Remove the air box by loosening the two hose
clamps and disconnecting the air box temp
sensor harness.
5
Unplug the wiring harness from each injector
as shown in Figure C.
6
Temporarily lay the PCIII USB EX on top of the
front valve cover.
2005-2007 Suzuki C90 - PCIII USB EX - 2
