PCIII USB EX
connectors
stock
connector
i323-411EX
stock
connector
PCIII USB EX
connectors
unplug this
connector
7

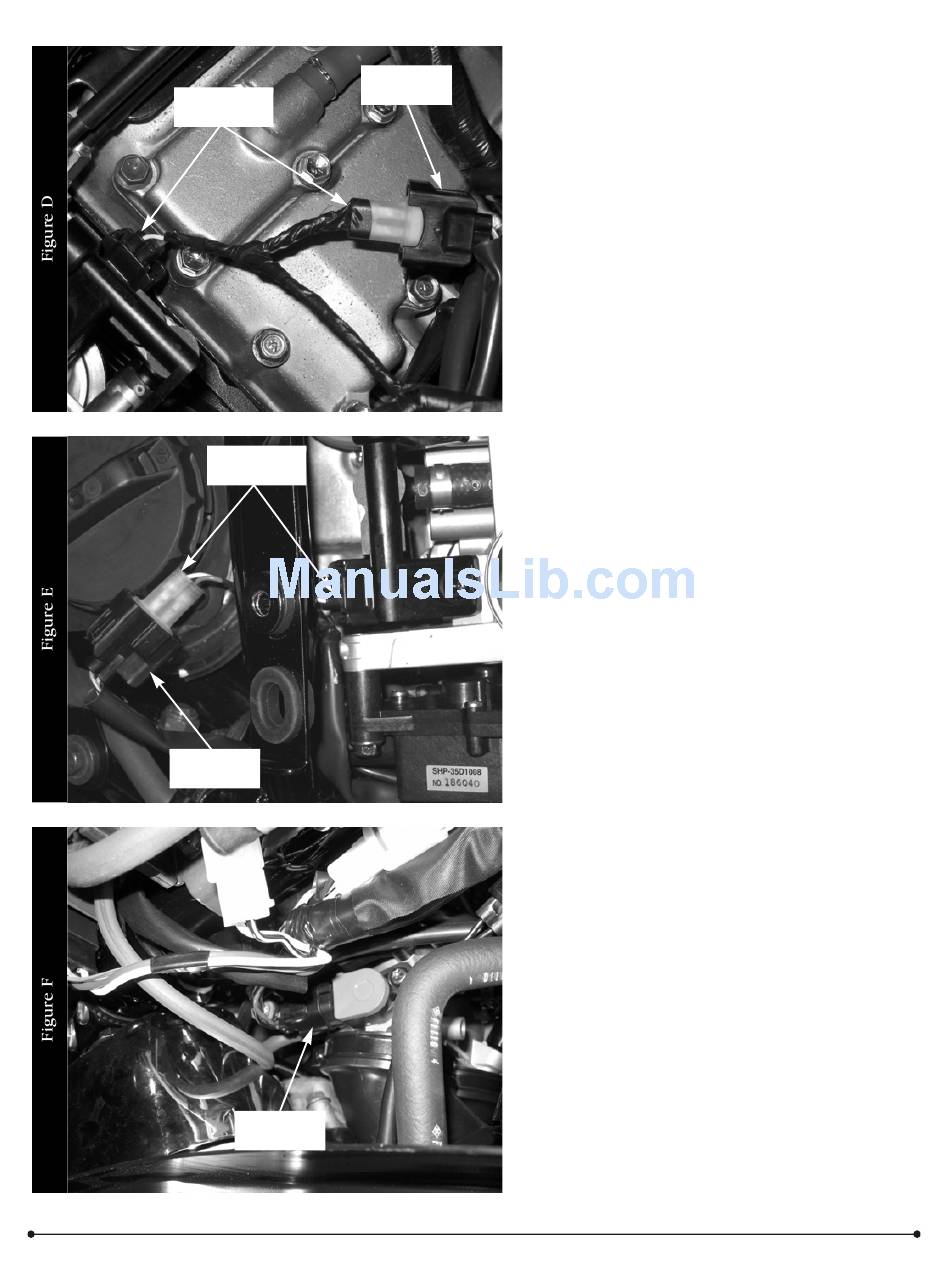

Attach the orange wires from the PCIII USB EX
to the stock wiring harness and front injector
as shown in Figure D.
8
Attach the yellow wires from the PCIII USB EX
to the stock wiring harness and rear injector as
shown in Figure E.
9
Locate the Throttle Position Sensor (TPS) on
the right hand side of the throttle bodies as
shown in Figure F.
10 Disconnect the wiring harness from the TPS.
2005-2007 Suzuki C90 - PCIII USB EX - 3
