Final Steps - Dynojet POWER COMMANDER III USB EX Installation Manual

wire tap
i323-411EX
grey wire from
ground wire
PCIII USB EX
11 Crimp the supplied wire tap to the blue/black
wire.

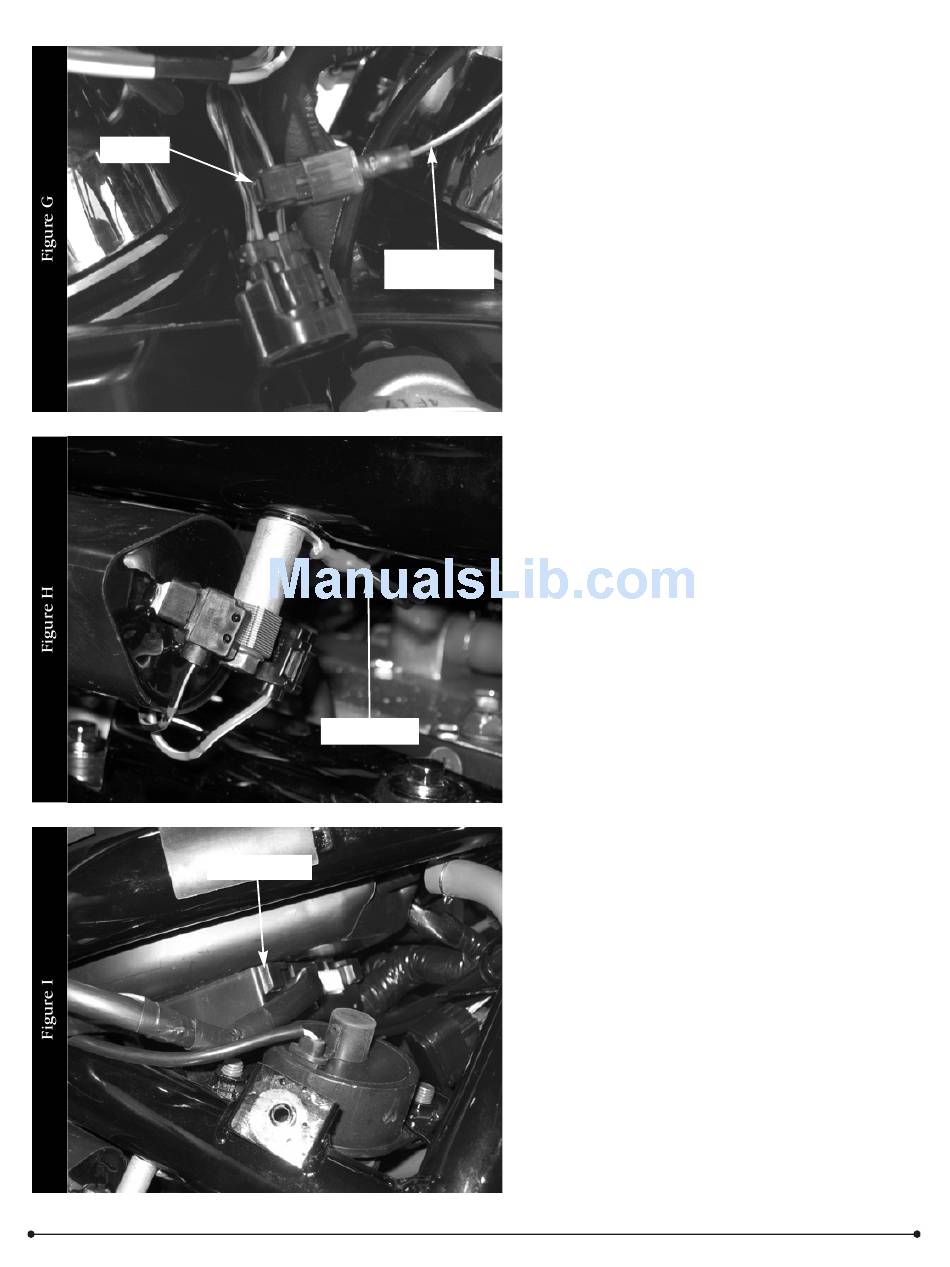

12 Attach the grey wire from the PCIII USB EX to
the wire tap as shown in Figure G.
Note: It is recommended to use dielectric
grease on these connections.
13 Attach the TPS connector back to the throttle
body.
PCIII USB EX
14 Unscrew the front bolt that holds the ignition
coil to the frame. Screw the bolt back in
through the ground wire from the
PCIII USB EX as shown in Figure H.
15 Reinstall the air box.
16 Secure the PCIII USB EX to the bottom side of
the air box using the supplied velcro. Make
sure to clean both surfaces with the alcohol
swab first.
17 Reinstall the removed bodywork.
18 Insert the cd provided into your computer's
cd-rom drive.
19 Follow the on-screen instructions to install the
PCIII USB EX software.
Visit www.powercommander.com to download
software tutorials and the latest maps.
2005-2007 Suzuki C90 - PCIII USB EX - 4
