3. Move and attach the plug at the 115 volt position.
The plug will now cover 2 metal tabs. The arrow on
the plug will point to 115V.4. Attach the power lead
wires to the power lead terminals. Make sure the
wires are secure.
5. Attach the ground wire to the green ground screw
Ground
Screw
Voltage
Change Dial

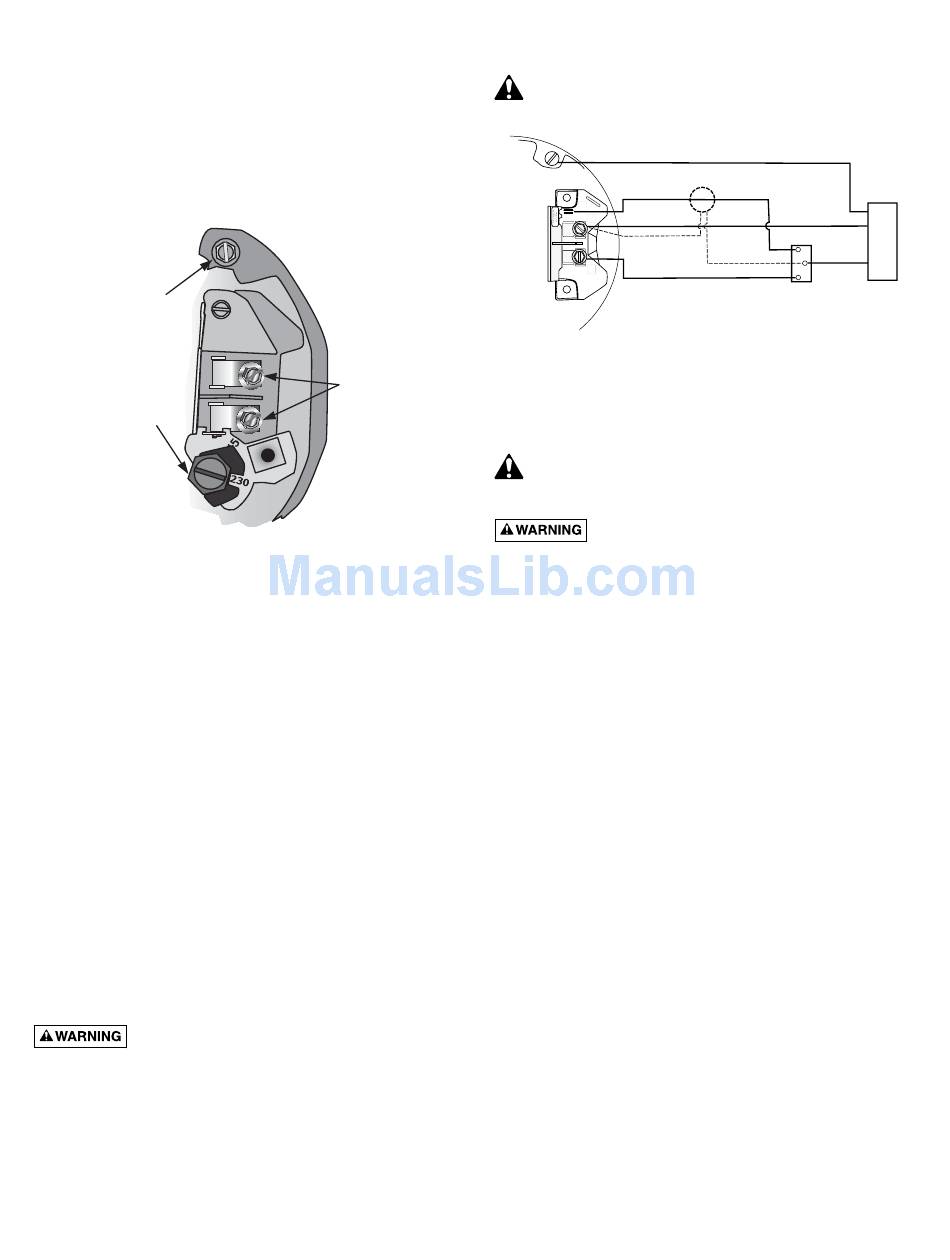

Figure 6 – Voltage set to 230 volts, Dial Type.
6. Reinstall the Motor end cover
Dial Type Voltage Selector
To change to 115 volts:
1. Make sure power is off.
2. Turn the dial counter-clockwise until 115 shows in
the dial window.
3. Attach the power lead wires to the power lead
terminals. Make sure the wires are secure.
4. Attach the ground wire to the green ground screw
5. Reinstall the Motor end cover.
To Wire a Two-Speed Motor
Wire the pump as shown in the diagram.
OPERA TION
NOTICE: NEVER run pump dry. Running pump dry may
damage seals, causing leakage and flooding. Fill pump
with water before starting motor.
Before removing trap cover:
1. STOP PUMP before proceeding.
2. CLOSE GATE VALVES in suction and discharge
pipes.
3. RELEASE ALL PRESSURE from pump and piping
system.
Back of
motor
with
Terminal
Board
Power Lead
Terminals
Figure 7 – 2-Speed motor wiring diagram.
using pool must ALWAYS have close adult supervision.
at high temperatures. To reduce the risk of fire, do not
allow leaves, debris, or foreign matter to collect around
the pump motor. To avoid burns when handling the
motor, let it cool for 20 minutes before trying to work on
it. An automatic internal cutoff switch protects the motor
from heat damage during operation.
Priming Pump
Release all pressure from filter, pump, and piping
system; see the filter owner's manual.
In a flooded suction system (water source higher than
pump), pump will prime itself when suction and
discharge valves are opened.
If pump is not in a flooded suction system, unscrew and
remove trap cover (see Figure 8); fill trap and pump with
water.
Clean and inspect O-Ring; reinstall on trap cover.
Do not lubricate the trap cover O-Ring. The original
equipment O-Ring contains a permanent internal
lubricant.
NOTICE: If you replace the O-Ring with a non-internally
lubricated O-Ring, you may need to apply a silicone
based lubricant.
Replace trap cover on trap; turn clockwise to tighten
cover.
NOTICE: Tighten trap cover by hand only (no
wrenches)!
7
If pump is being pressure tested, be sure pressure
has been released before removing trap cover.
Ground (Green)
A
L2
Common
Power Supply for
Optional Timer.
L1
If using timer, Connect
Timer Motor to Low Speed Only
Minimum switch and timer amp rating must equal Branch Fuse
Rating given in "Recommended Fusing and Wiring Data" table.
Do not block pump suction. To do so with body
may cause severe or fatal injury. Small children
Fire and burn hazard. Modern motors run
Low Speed
230
Volt
Lines
High Speed
Circuit
Remote
SPDT
Protector
Switch
