Water Velocity
The maximum water velocity through the suction fitting
or cover for any suction outlet must be 1.5 feet per
second unless the outlet complies with the latest
ASME/ANSI Specification for Suction Fittings For Use in
Swimming Pools, Spas, Hot Tubs, and Whirlpool
Bathtub Applications. In any case, do not exceed the
suction fitting's maximum designed flow rate.
If 100% of the pump's flow comes from the main drain
system, the maximum water velocity in the pump
suction hydraulic system must be six feet per second or
less even if one main drain (suction outlet) is completely
blocked. The flow through the remaining main drain(s)
must comply with the latest ASME/ANSI Specification
for Suction Fittings For Use in Swimming Pools, Spas,
Hot Tubs, and Whirlpool Bathtub Applications.
Testing and Certification
Suction outlet covers must have been tested by a
nationally recognized testing laboratory and found to
comply with the latest ASME/ANSI Specifications for
Suction Fittings For Use in Swimming Pools, Spas, Hot
Tubs, and Whirlpool Bathtub Applications.
Fittings:
Fittings restrict flow; for best efficiency use fewest
possible fittings (but at least two suction outlets).
Avoid fittings which could cause an air trap.
Pool fittings must conform to International Association
of Plumbing and Mechanical Officials (IAPMO)
standards.
Use only non-entrapping suction fitting or double suction.
IAPMO Certified
Anti-entrapment
Cover or Suction Fitting,
screw-fastened to
Main Drain Sump
Suction Outlet
(Main Drain)

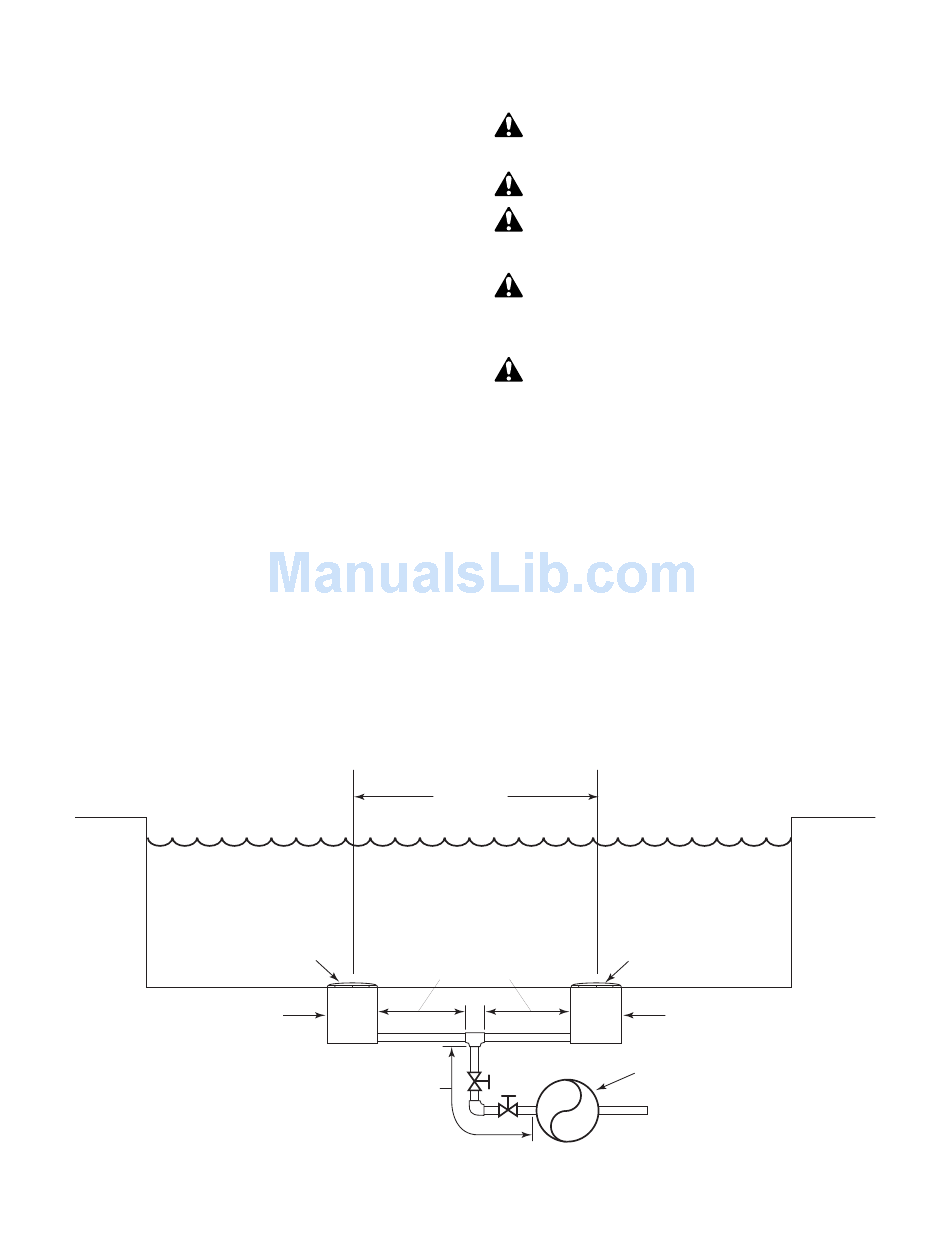

Figure 2 – Recommended pump suction layout.
At Least
3 Feet
No valves between
Tee and Main Drains
Valves OK between
pump and Tee

ELECTRICAL

Ground motor before connecting to electrical
power supply. Failure to ground motor can cause
severe or fatal electrical shock hazard.
Do not ground to a gas supply line.
To avoid dangerous or fatal electrical shock, turn
OFF power to motor before working on electrical
connections.
Ground Fault Circuit Interrupter (GFCI) tripping
indicates an electrical problem. If GFCI trips and
will not reset, have a qualified electrician inspect and
repair electrical system.
Exactly match supply voltage to nameplate
voltage. Incorrect voltage can cause fire or
seriously damage motor and voids warranty. If in doubt
consult a licensed electrician.
Voltage
Voltage at motor must be not more than 10% above or
below motor nameplate rated voltage or motor may
overheat, causing overload tripping and reduced
component life. If voltage is less than 90% or more than
110% of rated voltage when motor is running at full
load, consult power company.
IAPMO Certified
Anti-entrapment
Cover or Suction Fitting,
screw-fastened to
Main Drain Sump
Pump
5
Suction Outlet
(Main Drain)
2762 0197
