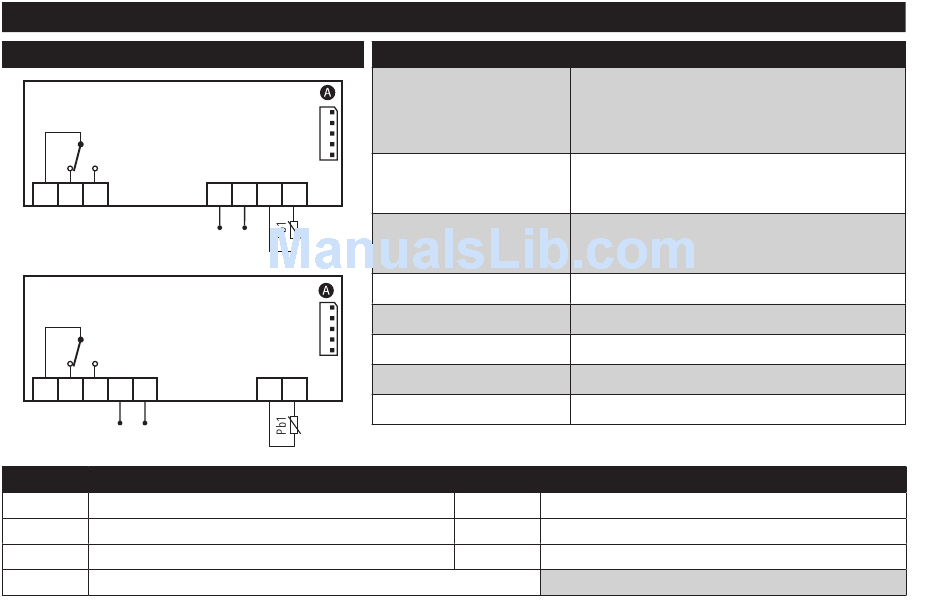

CONNECTIONS
NTC/PTC - 12V, 12-24V
OUT1
1
2
3
NTC/PTC - 24V, 115V, 230V
OUT1
1
2
3
4
5
Supply
1-2
N.C. regulator relay OUT1
1-3
N.O. regulator relay OUT1
10-11
Probe Pb1 Input
A
TTL input for Copy Card and TelevisSystem connection
NTC/PTC MODEL
Display range:
Analogue input
8
9 10 11
Supply
Serial
Digital outputs
Buzzer output
Measurement range
Accuracy
10 11
Resolution
INPUT/OUTPUT CHARACTERISTICS
NTC: -50...110°C (-58...230°F)
PTC: -50...140°C (-58...302°F)
on display with 3½ digits + sign
1 NTC or 1 PTC
(selectable by parameter H00)
TTL for connection to Copy Card or
Televis/Modbus remote control systems
OUT1: 1 SPDT relay 8(4)A 250 V
only on models where this is provided
-50 ... 140°C (-58 ... 284°F)
better than 0.5% of end of scale +1 digit
0.1°C (0.1°F up to +199.9°F; 1°F over)
TERMINALS
*4-5
Power supply 24V
*8-9
Power supply 12V
* depends on model
a
, 115V
and 230V
.
a
a
a
and 12-24V
12-36V
a/c
a/
.
c
