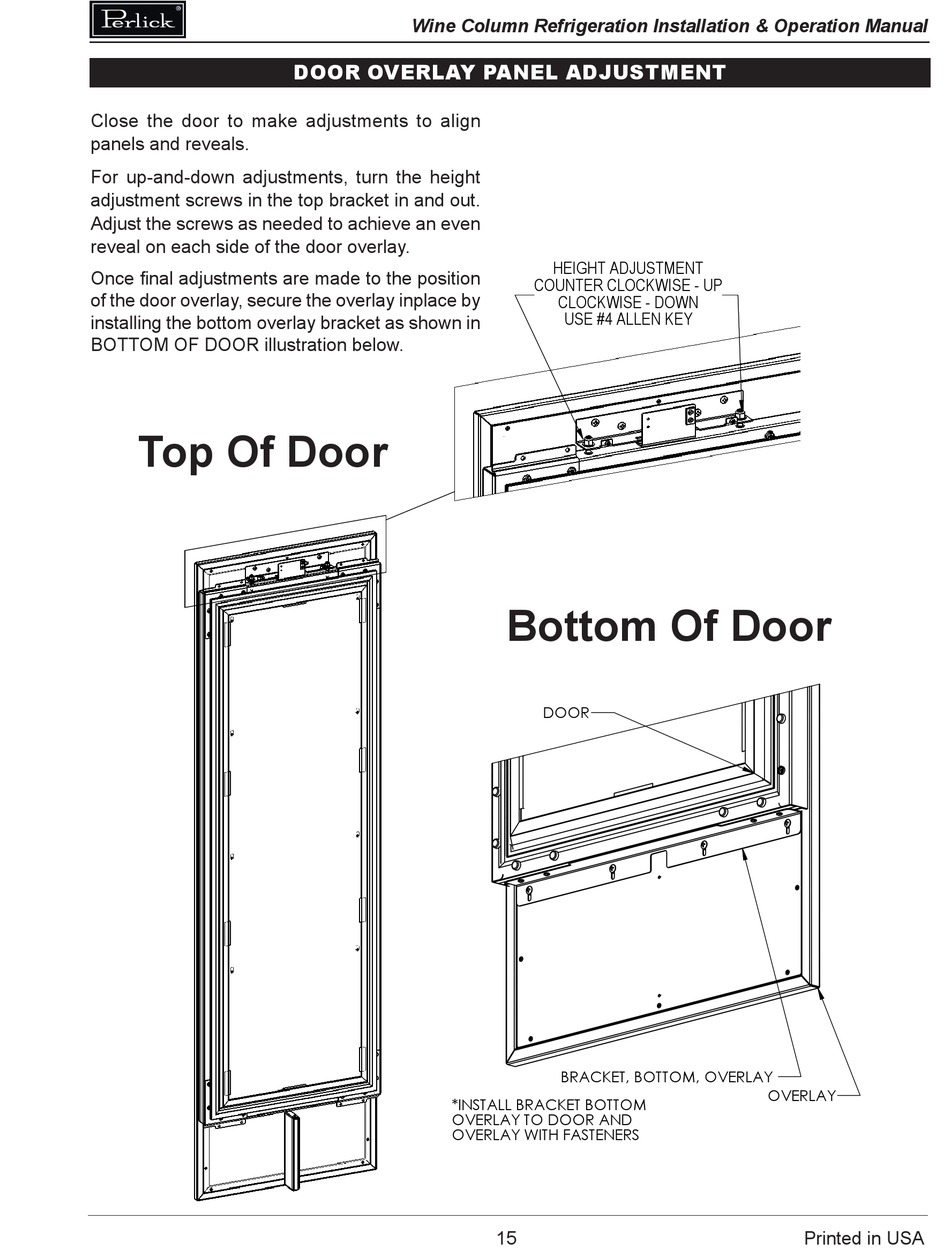

Perlick CC24W Series Installation & Operation Manual page 15

Close the door to make adjustments to align
panels and reveals.
For up-and-down adjustments, turn the height
adjustment screws in the top bracket in and out.
Adjust the screws as needed to achieve an even
reveal on each side of the door overlay.
Once final adjustments are made to the position
of the door overlay, secure the overlay inplace by
installing the bottom overlay bracket as shown in
BOTTOM OF DOOR illustration below.
Top Of Door
Wine Column Refrigeration Installation & Operation Manual
DOOR OVERLAY PANEL ADJUSTMENT
BRACKET, BOTTOM, OVERLAY
G
*INSTALL BRACKET BOTTOM
OVERLAY TO DOOR AND
OVERLAY WITH FASTENERS
DOOR
HEIGHT ADJUSTMENT
COUNTER CLOCKWISE - UP
CLOCKWISE - DOWN
USE #4 ALLEN KEY
DETAIL H
Bottom Of Door
SCALE 1 : 6
DETAIL G
SCALE 1 : 5
DOOR
BRACKET, BOTTOM, OVERLAY
15
OVERLAY
OVERLAY
