Anti-Tip Bracket - Perlick CC24W Series Installation & Operation Manual

The anti-tip bracket and supporting hardware
is included with your unit. In the case of dual
installation, each individual unit must be outfitted
with the included anti-tip brackets.
For drawings of the anti-tip bracket installation on
integrated unit, see below. For drawings of the
anti-tip bracket installation on freestanding units,
see page 8.
WARNING
electrical wires or plumbing in the area which
the screws could penetrate.
NOTE: Do not fasten anti-tip brackets to adjacent cabinetry until the cabinet has been leveled.

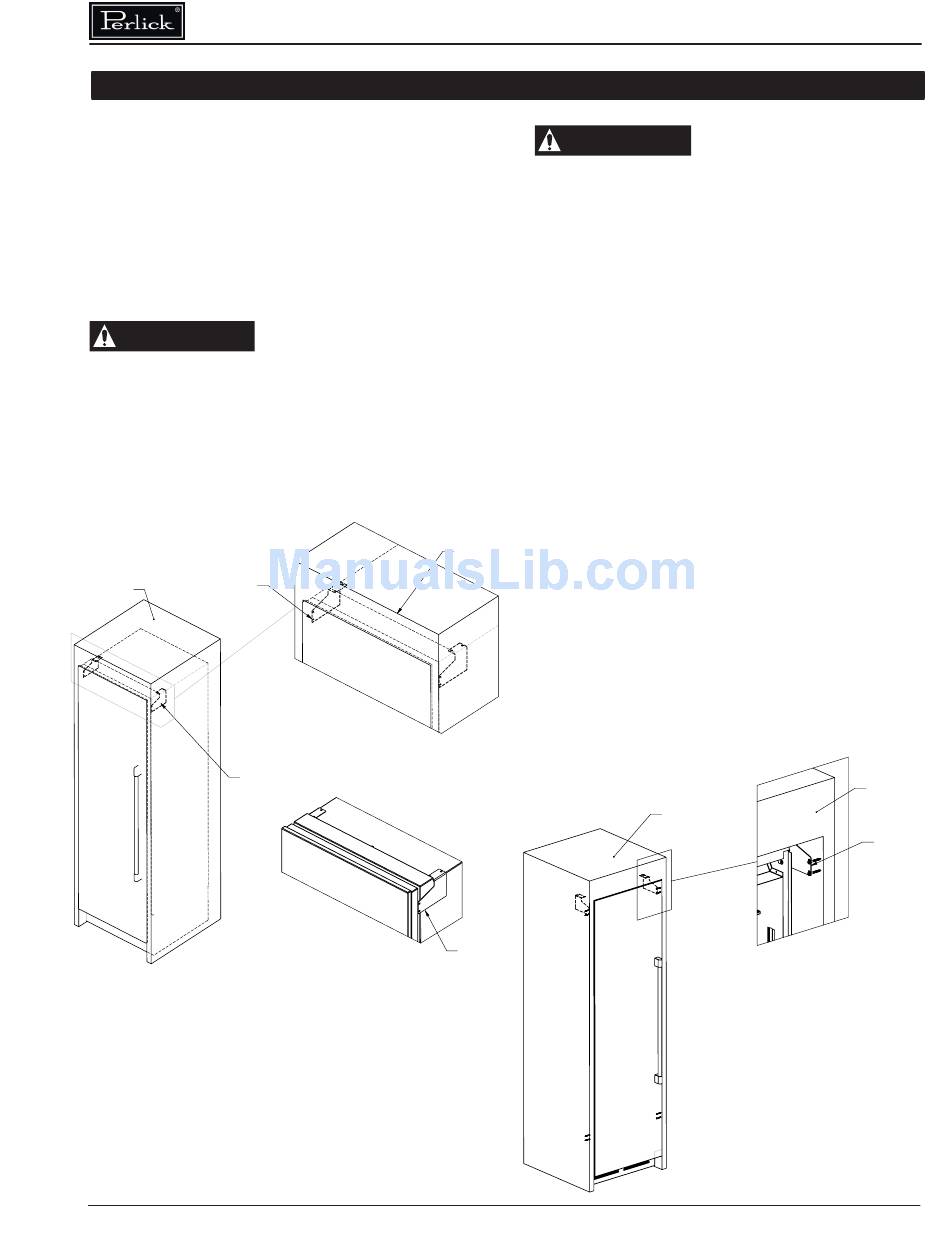

Anti-Tip Bracket Installation for Built-In Applications
ANTI-TIP
BRACKETS
OUTER FRAME
ANTI-TIP BRACKETS
SIDE
POSITIONS FOR ANTI-TIP BRACKETS
Wine Column Refrigeration Installation & Operation Manual
ANTI - TIP BRACKET
Ve r i f y t h e r e a r e n o
ANTI-TIP BRACKETS
INSTALLATION WITH OUTER FRAME
ANTI-TIP BRACKETS
INSTALLATION WITH CABINET WALLS
CAUTION
glasses and use other necessary protective
devices or apparel when installing or working
with anchors. Anchors are not recommended
for use in lightweight masonry material such
as block or brick, or for use in new concrete
which has not had sufficient time to cure. The
use of core drills is not recommended to drill
holes for anchors.
OUTER FRAME
ANTI-TIP
BRACKETS
11
A l w a y s w e a r s a f e t y
OUTER FRAME
ANTI-TIP BRACKETS
INSTALLATION WITH OUTER FRAME
DOOR NOT SHOWN
DETAIL P
SCALE 1 : 6
Printed in USA
OUTER FRAME
ANTI-TIP
BRACKETS
