TriStar II 3020 Service
Power Module

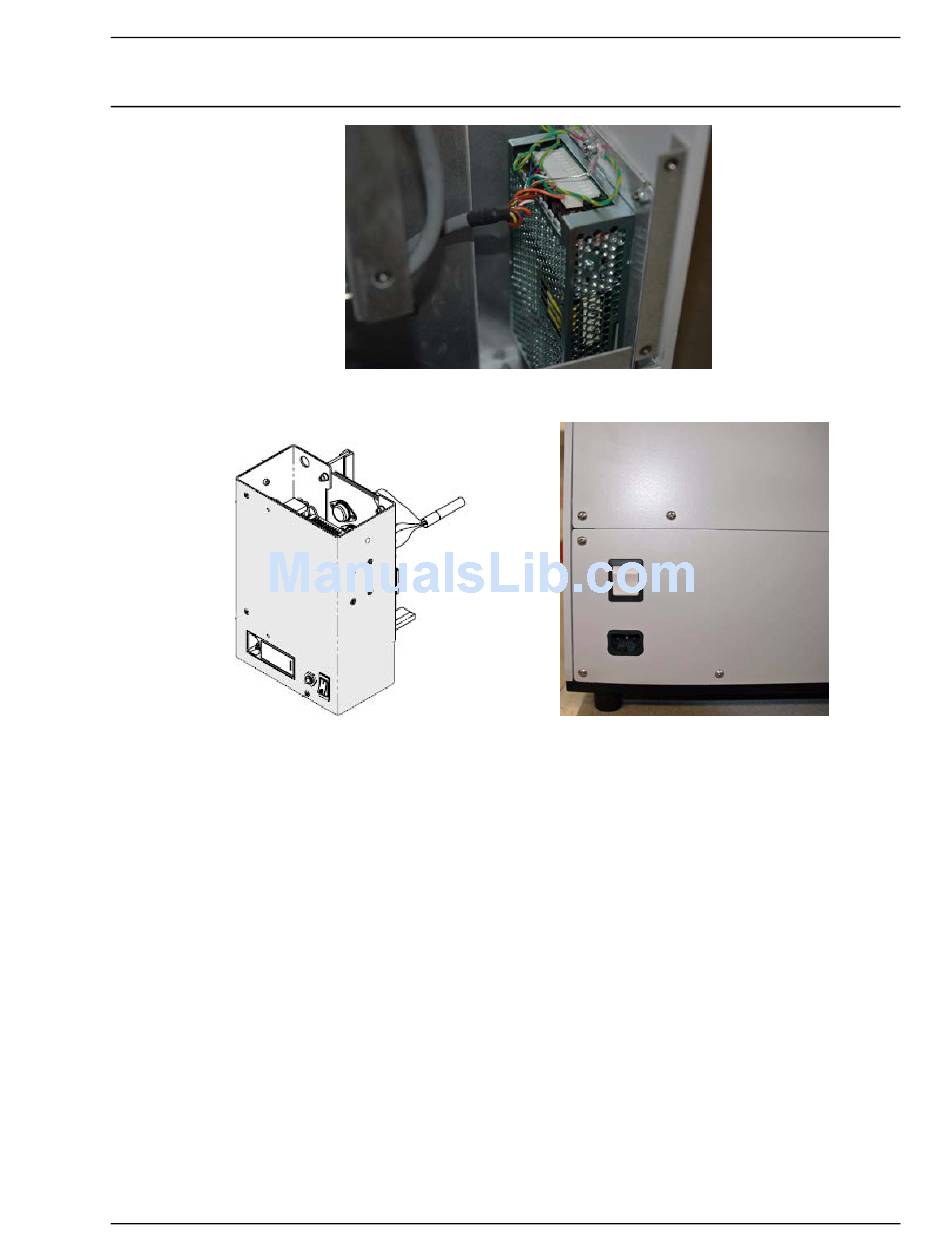

Power supply (from rear of instrument)
The TriStar's power supply assembly is the same model as used in the SediGraph 5120. The
power supply is mounted at the rear of the instrument providing access to the power switch.
Jul 09
Power supply (from interior of instrument)
Power switch (from rear of instrument)
Power Module
2-11
