TriStar II 3020 Service

Instrument Components

The TriStar 3020 Analyzer is comprised of these major components and modules:
•

Cabinetry/Sample Chamber

• Interior
• Printed Circuit Boards (PCBs)
• Power Module

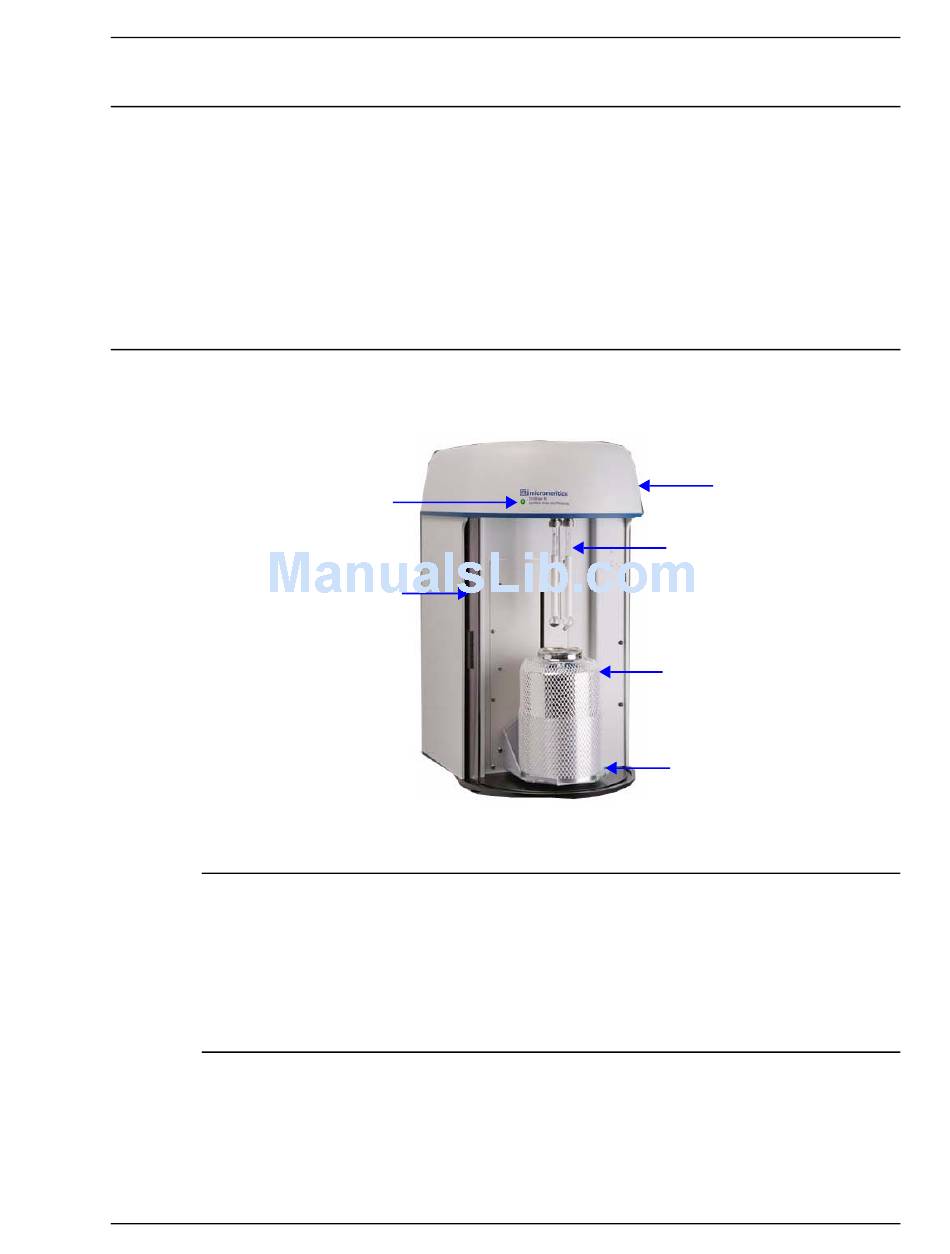

Cabinetry/Sample Chamber
Due to the elimination of the vacuum pump cavity, the redesigned TriStar II 3020 analyzer is
significantly smaller than its predecessor.
Communications status
indicator

Top Panel

The top panel of the TriStar provides access to the interior analysis module and its
subassemblies. The top panel is molded from plastic and internally coated with a special
conductive coating to prevent radio frequency interference.

Front

The redesigned front of the TriStar II 3020 consists of a tinted and transparent rounded sample
chamber door. The front panel is intended to shield the operator from any flying debris
resulting from a sample tube explosion or liquid nitrogen splatter. When the door is opened, it
allows for easy, 270-degree access to the three sample ports.
Jul 09
Door
Instrument Components
Top Panel
Sample Tubes
Dewar
Elevator
2-3
