FEATURES

Full featured evaluation board for the
High speed and high precision transimpedance amplifiers
Selectable transimpedance gain with rotary switch
On-board or external power supply
On-board or external voltage reference
Usable with controller boards SDP-H1 and Digilent ZedBoard
DAC channel aggregation

EVALUATION KIT CONTENTS

EVAL-AD3552RFMCZ

HARDWARE REQUIRED

The evaluation board can be used with one of the following control-
lers, that must be purchased separately:
SDP-H1
board
Digilent ZedBoard

SOFTWARE REQUIRED

If using the SDP-H1 controller board:
ACE
software
Board.AD35X2R ACE plugin (automatically downloaded within
ACE)
If using the Digilent ZedBoard as controller (see
Wiki):
Kuiper Linux Image
IIO Scope tool
UART terminal tool

ONLINE RESOURCES

Bill of materials and layout files

GENERAL DESCRIPTION

The EVAL-AD3552RFMCZ is an evaluation board for the AD3552R,
a dual-channel, 16-bit fast precision digital-to-analog converter
(DAC). Each channel of the AD3552R is equipped with a differ-
ent transimpedance amplifier: Channel 0 has a fast amplifier that
achieves the optimal dynamic performance and Channel 1 has a
precision amplifier that guarantees the optimal DC precision over
temperature.
The board allows testing all the output ranges of the DAC, wave-
form generation, power supply, and reference options.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Evaluating the AD3552R, 16-Bit, Dual-Channel, Current Output DAC
AD3552R
EVAL-AD3552R
User Guide | EVAL-AD3552R

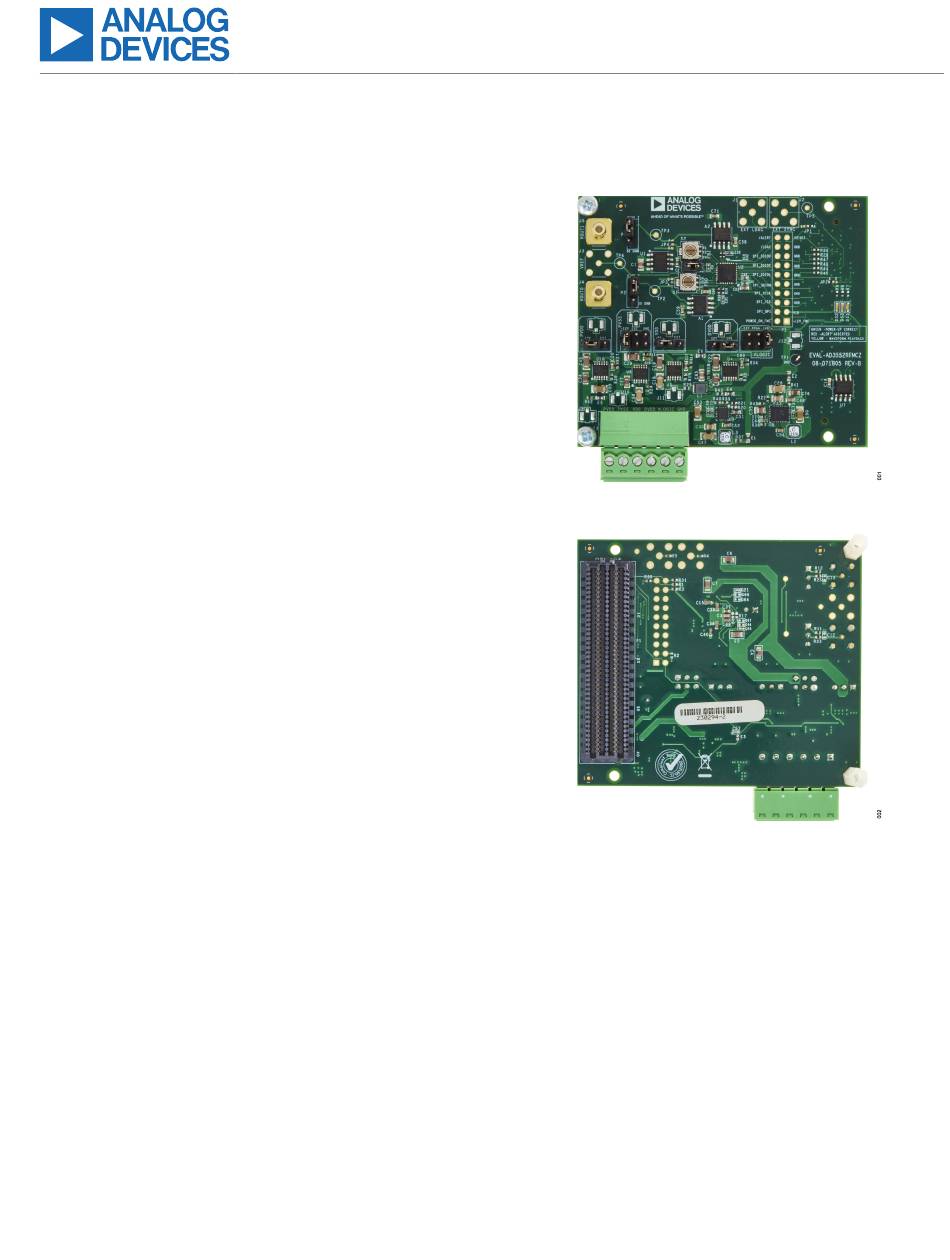

EVALUATION BOARD PHOTOGRAPH

Figure 1. EVAL-AD3552RFMCZ Top View
Figure 2. EVAL-AD3552RFMCZ Bottom View
The EVAL-AD3552RFMCZ interfaces to the USB port of a PC
via a system demonstration platform (SDP-H1 board). It can also
be connected to the ZedBoard or a different controller board
using the pin header connector at position P5. Refer to the
EVAL-AD3552RFMCZ Wiki page
AD3552RFMCZ with the ZedBoard.
This user guide covers the details of the configuration and opera-
tion of the EVAL-AD3552RFMCZ board and the associated ACE
plugin. Refer to the AD3552R data sheet for additional information
on the DAC operation.
UG-2217
for details on using the EVAL-
Rev. A | 1 of 20
