Installation and Reference Manual – What's New

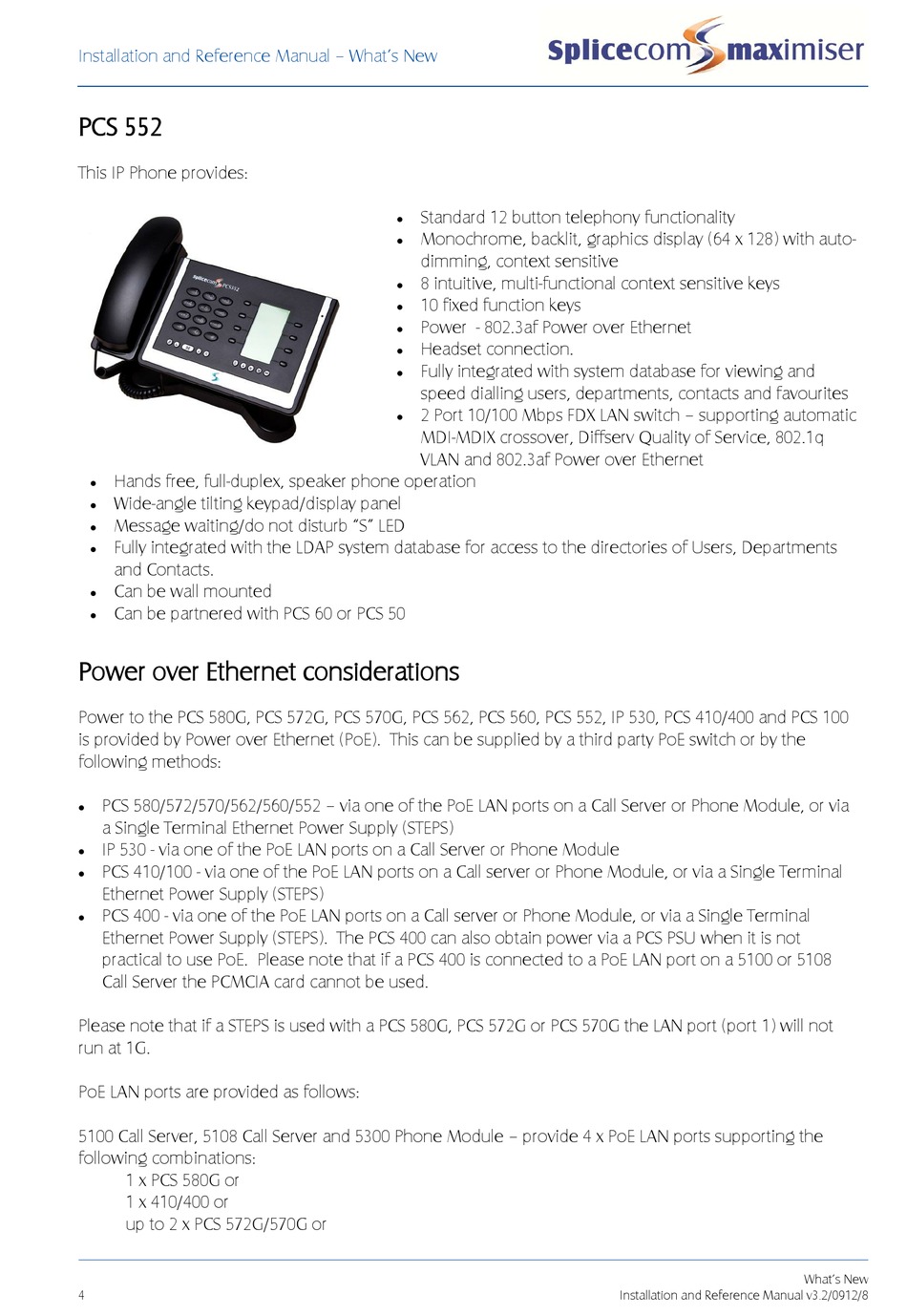

PCS 552

This IP Phone provides:
Hands free, full-duplex, speaker phone operation

Wide-angle tilting keypad/display panel

Message waiting/do not disturb "S" LED

Fully integrated with the LDAP system database for access to the directories of Users, Departments

and Contacts.
Can be wall mounted

Can be partnered with PCS 60 or PCS 50


Power over Ethernet considerations

Power to the PCS 580G, PCS 572G, PCS 570G, PCS 562, PCS 560, PCS 552, IP 530, PCS 410/400 and PCS 100
is provided by Power over Ethernet (PoE). This can be supplied by a third party PoE switch or by the
following methods:
PCS 580/572/570/562/560/552 – via one of the PoE LAN ports on a Call Server or Phone Module, or via

a Single Terminal Ethernet Power Supply (STEPS)
IP 530 - via one of the PoE LAN ports on a Call Server or Phone Module

PCS 410/100 - via one of the PoE LAN ports on a Call server or Phone Module, or via a Single Terminal

Ethernet Power Supply (STEPS)
PCS 400 - via one of the PoE LAN ports on a Call server or Phone Module, or via a Single Terminal

Ethernet Power Supply (STEPS). The PCS 400 can also obtain power via a PCS PSU when it is not
practical to use PoE. Please note that if a PCS 400 is connected to a PoE LAN port on a 5100 or 5108
Call Server the PCMCIA card cannot be used.
Please note that if a STEPS is used with a PCS 580G, PCS 572G or PCS 570G the LAN port (port 1) will not
run at 1G.
PoE LAN ports are provided as follows:
5100 Call Server, 5108 Call Server and 5300 Phone Module – provide 4 x PoE LAN ports supporting the
following combinations:
1 x PCS 580G or
1 x 410/400 or
up to 2 x PCS 572G/570G or
4
Standard 12 button telephony functionality

Monochrome, backlit, graphics display (64 x 128) with auto-

dimming, context sensitive
8 intuitive, multi-functional context sensitive keys

10 fixed function keys

Power - 802.3af Power over Ethernet

Headset connection.

Fully integrated with system database for viewing and

speed dialling users, departments, contacts and favourites
2 Port 10/100 Mbps FDX LAN switch – supporting automatic

MDI-MDIX crossover, Diffserv Quality of Service, 802.1q
VLAN and 802.3af Power over Ethernet
Installation and Reference Manual v3.2/0912/8
What's New
