Installation and Reference Manual – What's New

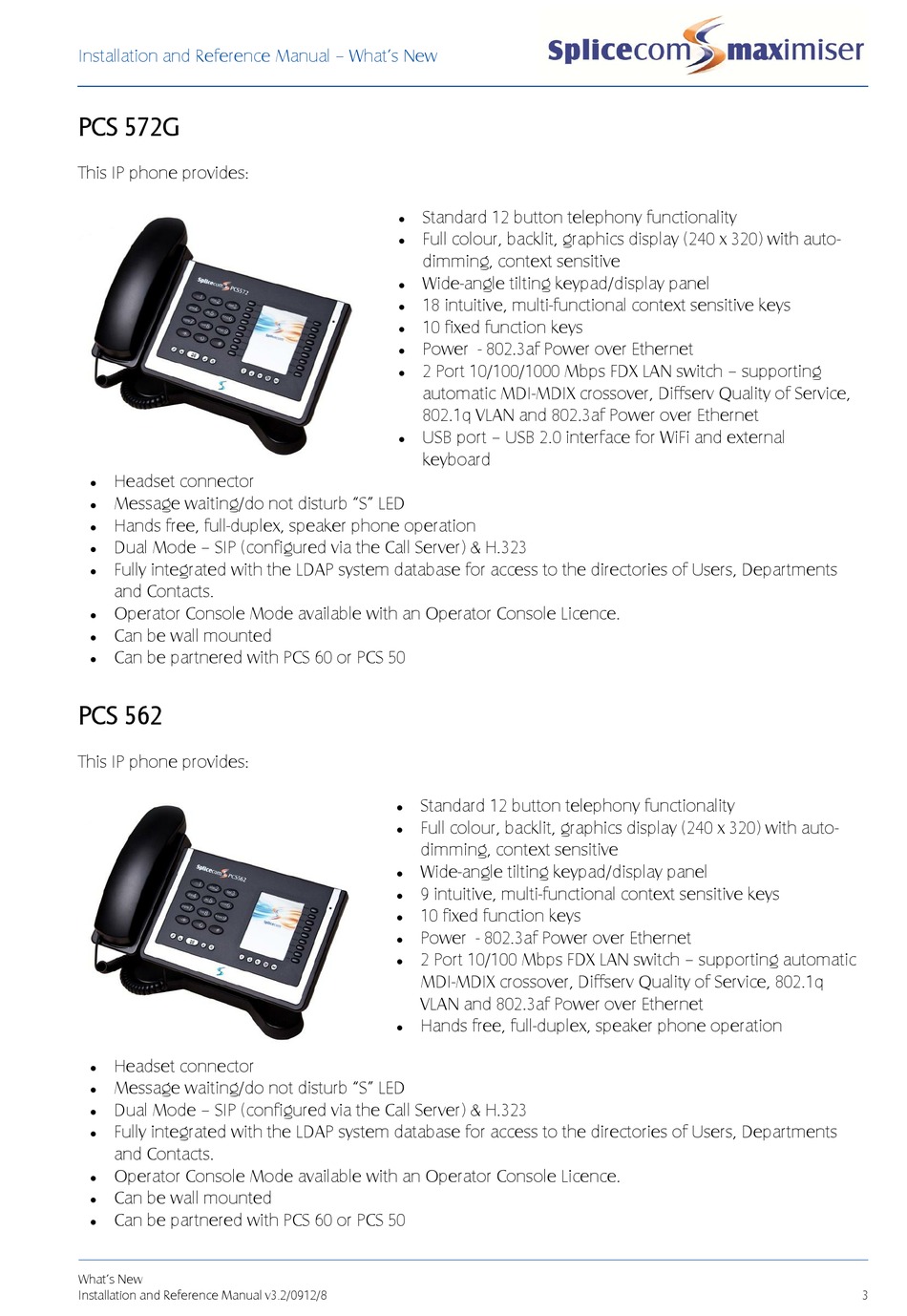

PCS 572G

This IP phone provides:
Headset connector

Message waiting/do not disturb "S" LED

Hands free, full-duplex, speaker phone operation

Dual Mode – SIP (configured via the Call Server) & H.323

Fully integrated with the LDAP system database for access to the directories of Users, Departments

and Contacts.
Operator Console Mode available with an Operator Console Licence.

Can be wall mounted

Can be partnered with PCS 60 or PCS 50


PCS 562

This IP phone provides:
Headset connector

Message waiting/do not disturb "S" LED

Dual Mode – SIP (configured via the Call Server) & H.323

Fully integrated with the LDAP system database for access to the directories of Users, Departments

and Contacts.
Operator Console Mode available with an Operator Console Licence.

Can be wall mounted

Can be partnered with PCS 60 or PCS 50

What's New
Installation and Reference Manual v3.2/0912/8
Standard 12 button telephony functionality

Full colour, backlit, graphics display (240 x 320) with auto-

dimming, context sensitive
Wide-angle tilting keypad/display panel

18 intuitive, multi-functional context sensitive keys

10 fixed function keys

Power - 802.3af Power over Ethernet

2 Port 10/100/1000 Mbps FDX LAN switch – supporting

automatic MDI-MDIX crossover, Diffserv Quality of Service,
802.1q VLAN and 802.3af Power over Ethernet
USB port – USB 2.0 interface for WiFi and external

keyboard
Standard 12 button telephony functionality

Full colour, backlit, graphics display (240 x 320) with auto-

dimming, context sensitive
Wide-angle tilting keypad/display panel

9 intuitive, multi-functional context sensitive keys

10 fixed function keys

Power - 802.3af Power over Ethernet

2 Port 10/100 Mbps FDX LAN switch – supporting automatic

MDI-MDIX crossover, Diffserv Quality of Service, 802.1q
VLAN and 802.3af Power over Ethernet
Hands free, full-duplex, speaker phone operation

3
