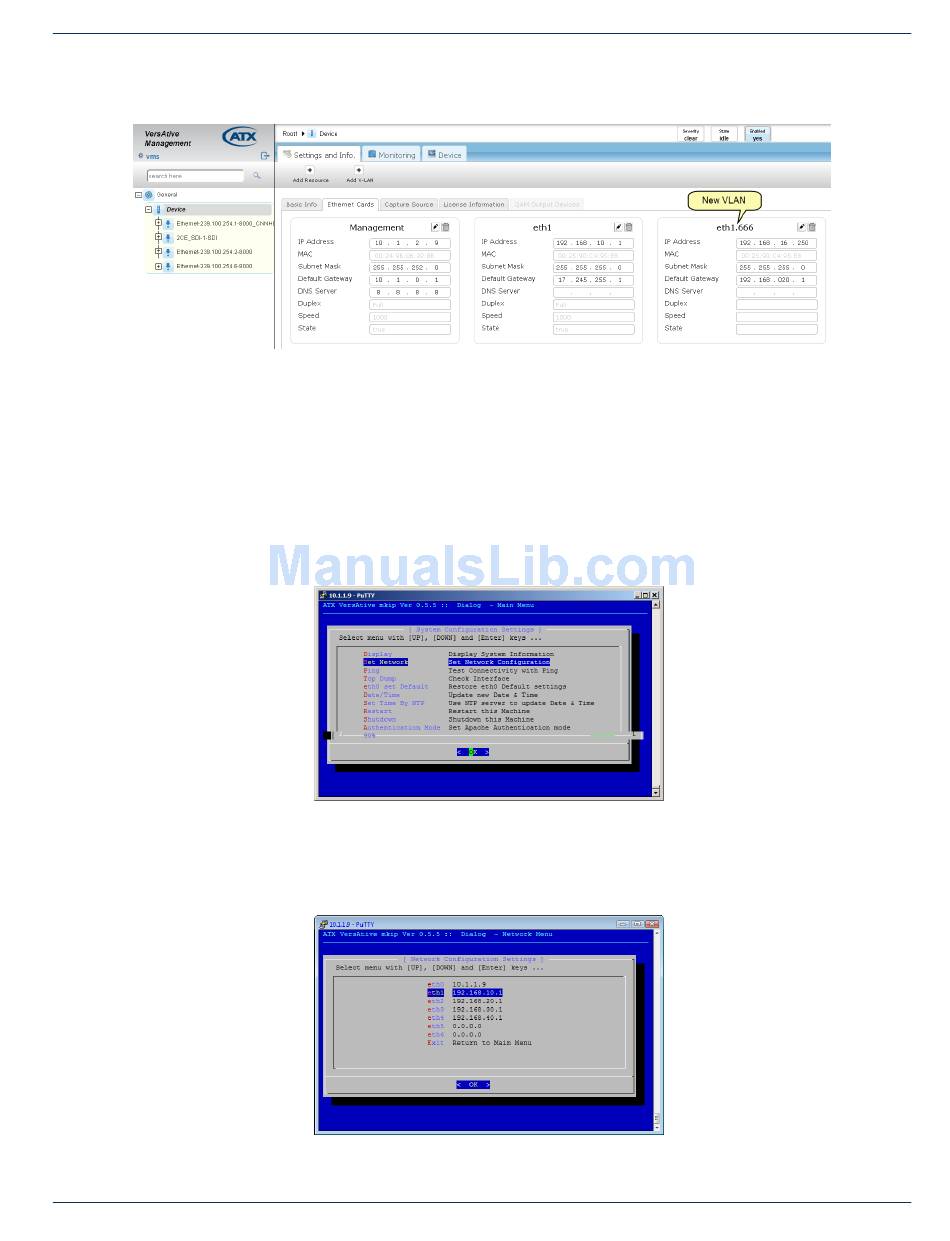

9. The new VLAN is listed with the other physical interfaces, Figure 1-3.
12.5

Create VLAN with MKIP Interface

There are two ways to create the VLAN. This procedure shows using the MKIP Interface. The MKIP interface is accessed
using an SSH client such as PuTTY which is shown here.
The VLAN can also be created in the GUI, see
Procedure
1. Install and run PuTTY (or another ssh client).
2. Configure PuTTY (or other ssh client) with the IP address of the Device and use the default SSH port 22.
3. Log in with user: mkip and password: 123456
4. Once connected and access to the menu is attained, arrow down to Set Network, then click OK, Figure 1-4.
5. Select the Streaming Ethernet Port that a virtual port will be created on. Select eth1, eth2, eth3 or eth4.
6. Click OK when the eth'x' is selected, Figure 1-5.
VersAtive Pro, DigiVu II, DigiVu
® ®
Figure 1-3: Newly Added VLAN displayed in GUI
"12.4 Create a VLAN Using the Device GUI".
Figure 1-4: Select 'Set Network'
Figure 1-5: Select a streaming port
II Micro – Operation Manual
®
CHAPTER 1: VLAN TAGGING
12-3
