ATX DigiVu II MICRO Operation Manual page 103

7. Setting the Gateway IP address is optional, Figure 1-12. This is usually the router providing internet access but if
there is no router, do not enter any IP address.
8. If the default gateway IP address was set and this interface default gateway is not already the current machine default
gateway, you are prompted next to set that, Figure 1-13. Select yes to set it as the machine default or no.
9. When finished and you accept the changes, Figure 1-14, the server will reboot.
10. Reconnect on the new IP address, if changed.
VersAtive Pro, DigiVu II, DigiVu
® ®

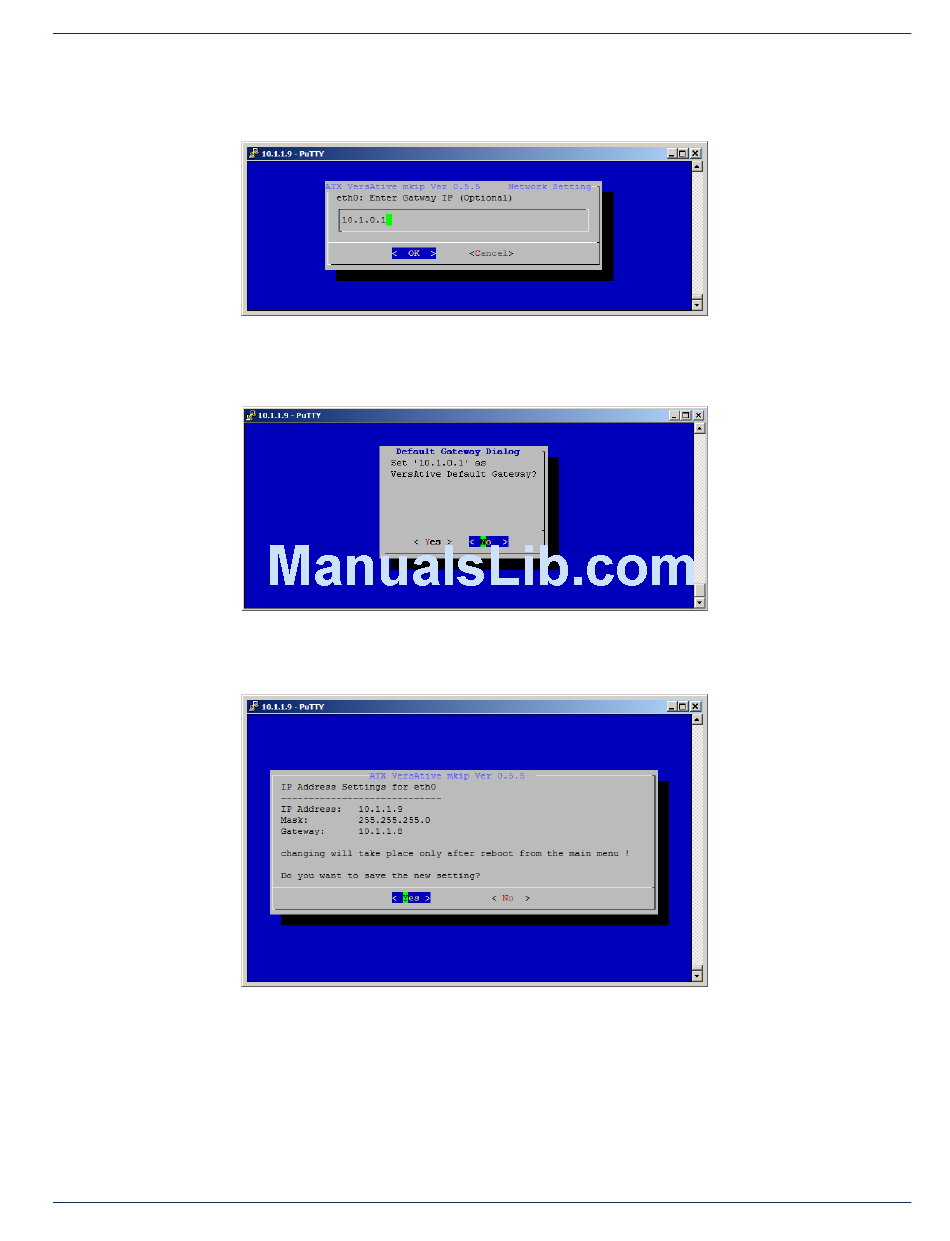

Figure 1-12: Set Gateway
Figure 1-13: Set as Machine Default Gateway
Figure 1-14: Save Settings
II Micro – Operation Manual
®
CHAPTER 1: MKIP SYSTEM SHELL
13-7
