ETHERNET MULTIPLEXER

9. Ethernet Multiplexer
Multiplexes comprised of one or many programs (SPTS or MPTS) may be created with outputs on Ethernet ports.
• Unicast or multicast addresses may be specified.
• SPTS or MPTS streams may be used as source.
• Output MUX maximum bitrate may be specified (however, there is no internal mechanism to limit bitrate).
9.1

Chapter Contents

•

"Create an Ethernet MUX"

• "Create a TS Source"
• "Adding TS Source Programs"
• "Adding Multiple TS Sources"
9.2 Create an Ethernet MUX
1. Click to select the Device in the Tree View, Figure 1-1.
Click Add MPTS Multiplex on the tool bar.
2.
3. Give a Name to the MUX(optional), Figure 1-2.
• By default, Ethernet is selected in Output Type.
4. Enter the output IP address and port.
• If a multicast IP address is entered, tick the Multicast box.
VersAtive Pro, DigiVu II, DigiVu
® ®

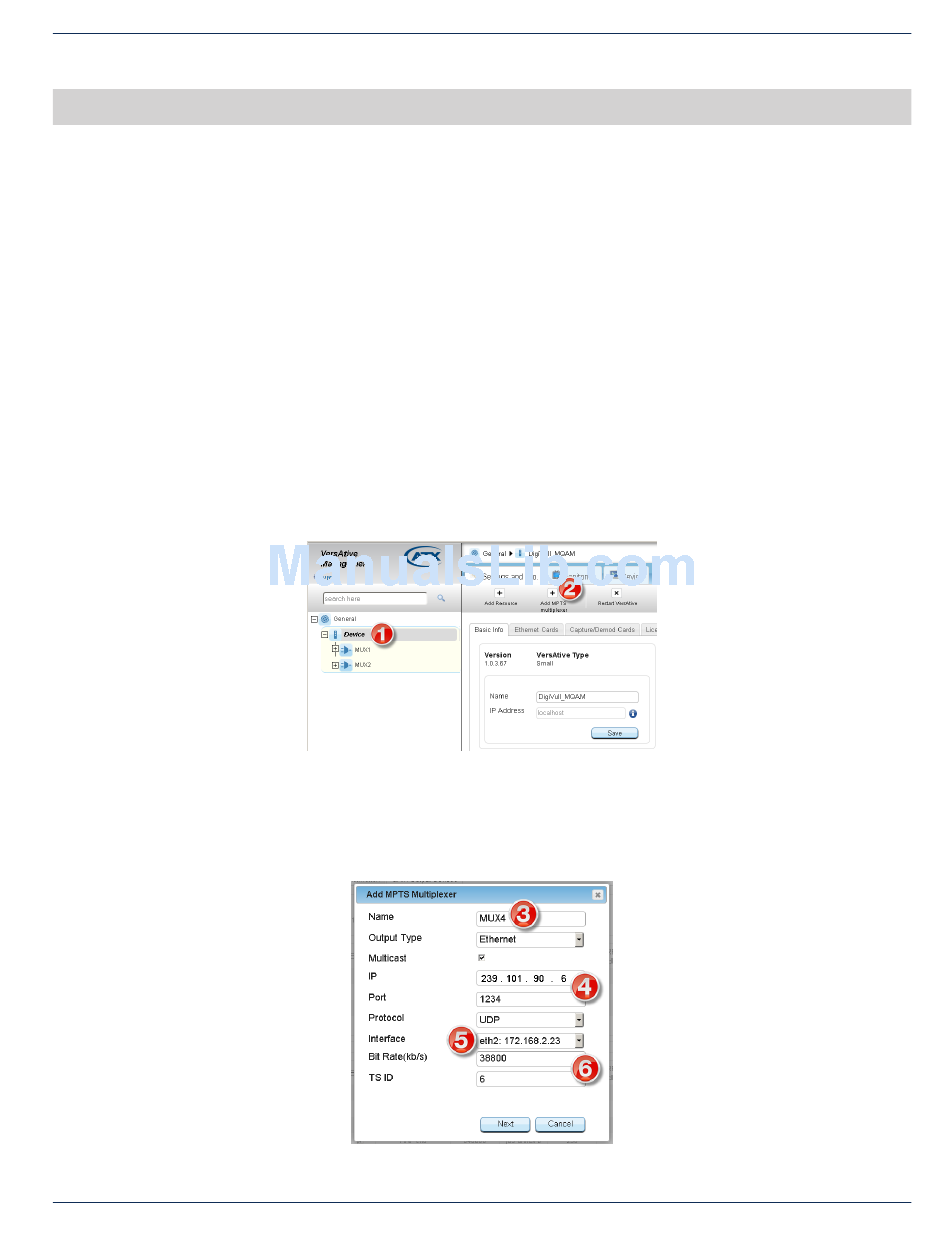

Figure 1-1: Create Ethernet Multiplex
Figure 1-2: Edit Ethernet Multiplex
II Micro – Operation Manual
®
CHAPTER 1: ETHERNET MULTIPLEXER
9-1
