CHAPTER 1: GUI ENVIRONMENT
The Preview function for each Resource is on by default, Figure 1-4, but may be disabled at each individual Resource by
unticking the Preview On box and then clicking Save.
1.3

Launch the GUI and Log in

1. Open the web browser of your choice, Figure 1-2.
2. Enter the IP address of the Management Port; factory default 192.168.0.23
3. Login with credentials, Figure 1-3, (case sensitive):
4. The GUI will open as shown in Figure 1-4.
1.4

Configuring the Device - Quick Summary

These are the key steps required to set up the Device.
1.4.1 Covered in this Chapter:
• GUI Overview
• Open the GUI and log in.
1.4.2 Covered in General Configuration Chapter
• Managing Firmware
• Managing Users
• SNMP
1.4.3 Covered in Device Configuration Chapter
• Configure Ethernet Input & Output Streaming Ports
• Configure QAM Output Modulators
1.4.4 Covered in Encode, Transcode & Publish Chapters
• Create Resources
The resource may come from an analog or digital program on a Capture Card or an Ethernet IP
stream address (Devices may have multiple physical Ethernet ports on which Resources may be
present).
• Create SPTS Streams
1-2

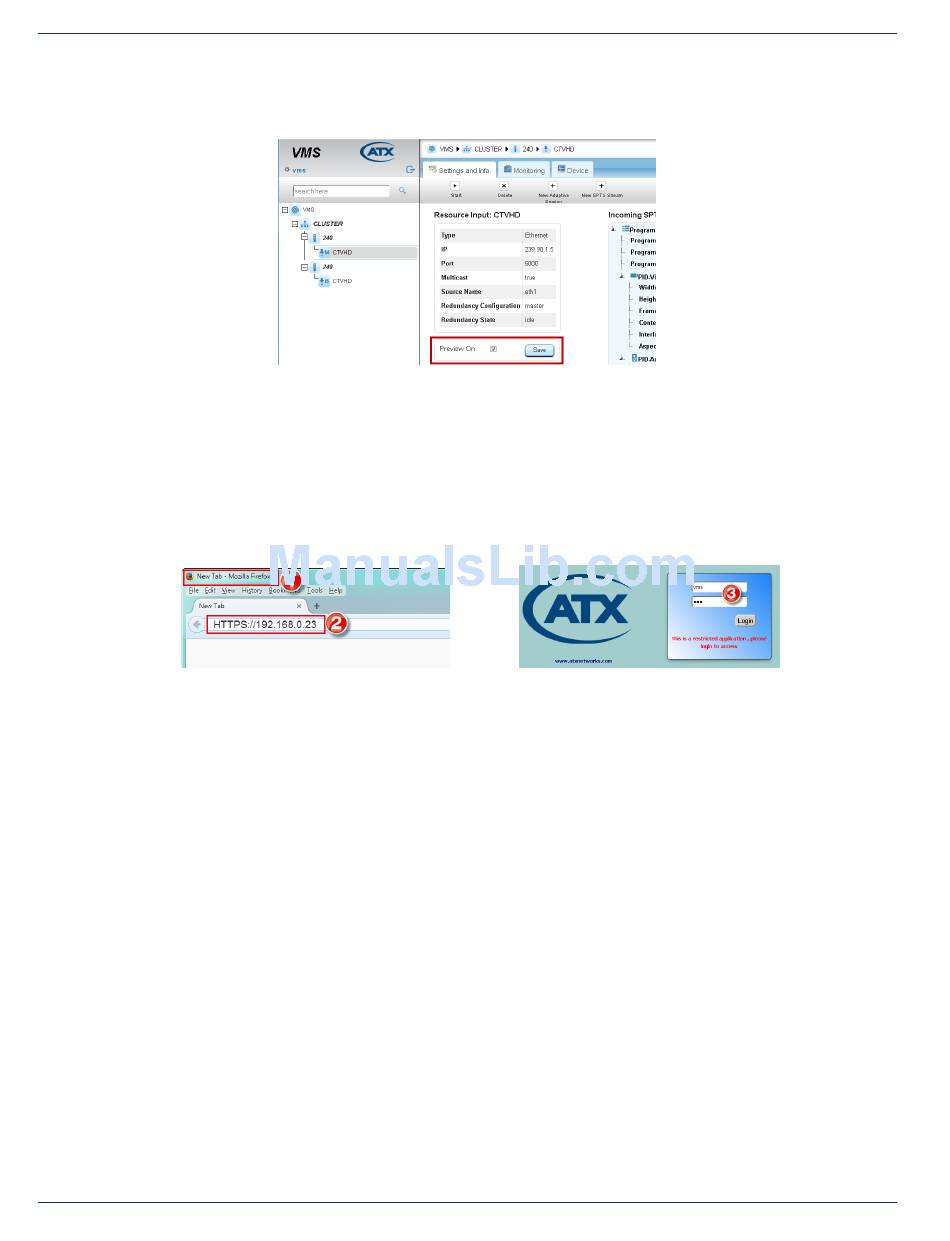

Figure 1-1: Preview Enabled
Figure 1-2: GUI Address
User Name: vms
Password: VMS
Figure 1-3: GUI Login
