ATX DigiVu II MICRO Operation Manual page 18

CHAPTER 2: GENERAL (GLOBAL) CONFIGURATION
3. Click Upload Version on the Tool Bar.
4. In the Dialog box that opens, click Choose File then browse to locate the file stored on your computer, Figure 2-3.
Click Upload to begin the process.
5.
When the upload is complete, the new version will be listed below any previous versions, Figure 2-4.
6. Click the selector Button to select the firmware you just uploaded, Figure 2-5.
7. Click Install Version.
The firmware upgrade process will begin and a progress screen is presented, Figure 2-6.
• Soon, the SEULA(Software End User Licence Agreement) is presented, Figure 2-7.
2-2

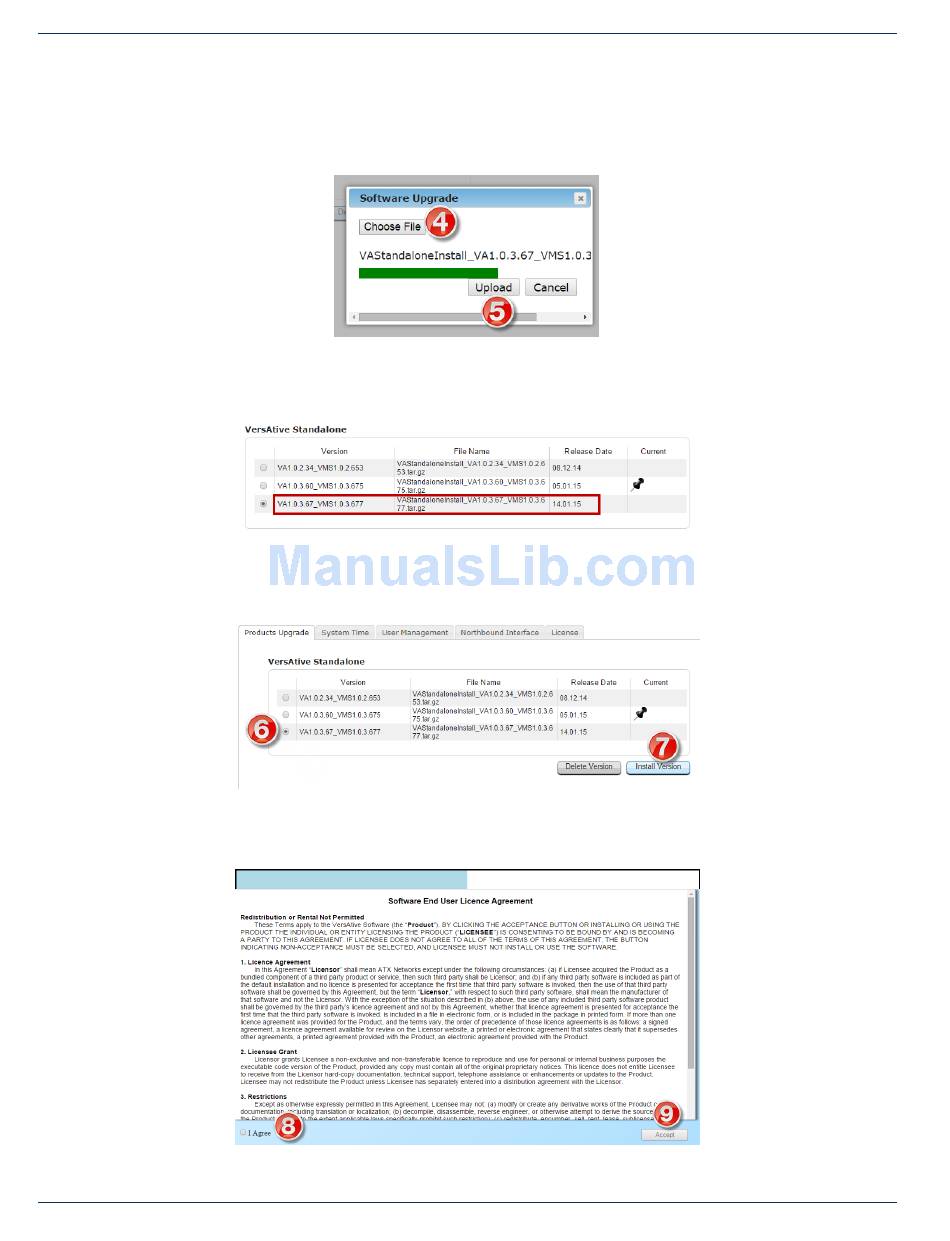

Figure 2-3: Select File
Figure 2-4: New Uploaded Version
Figure 2-5: Install Version
Figure 2-6: Install Progress
Figure 2-7: Accept SEULA Agreement
VersAtive Pro, DigiVu II, DigiVu
® ®
II Micro – Operation Manual
®
