An icon of a TV or Media Player representing a TV Program. Outgoing Programs are created here.
1.7.5 Stream
In icon of a Media Player or a Media Stream to be played out.
Stream
1.7.6 Publish
An icon of the Globe again, this time with an encircling arrow showing output to a broad area 'around the Globe'.
Publish
1.7.7 Configuration Icons
Some Icons in the GUI are for configuration and operation purposes.
Log Out
1.8

Context Sensitive Menus

These are menus that appear on Right Click and are different depending on the element that was first selected.
1.8.1 Device Menu & Tool Bar
Device Configuration options are available on both the Right Click menu and the Tool Bar, Figure 1-5.
1.
Add Resource
Add to this Device a Capture Card Resource for encoding content or an Ethernet Resource for
transcoding content.
2.
Add MPTS Multiplexer
Multiplexes may be built for Ethernet streaming to remote Edge QAMs or output directly to MQAMs
(if QAM Output equipped).
VersAtive
Pro, DigiVu
II, DigiVu
®
®
Stream Error
Publish Error
User Settings

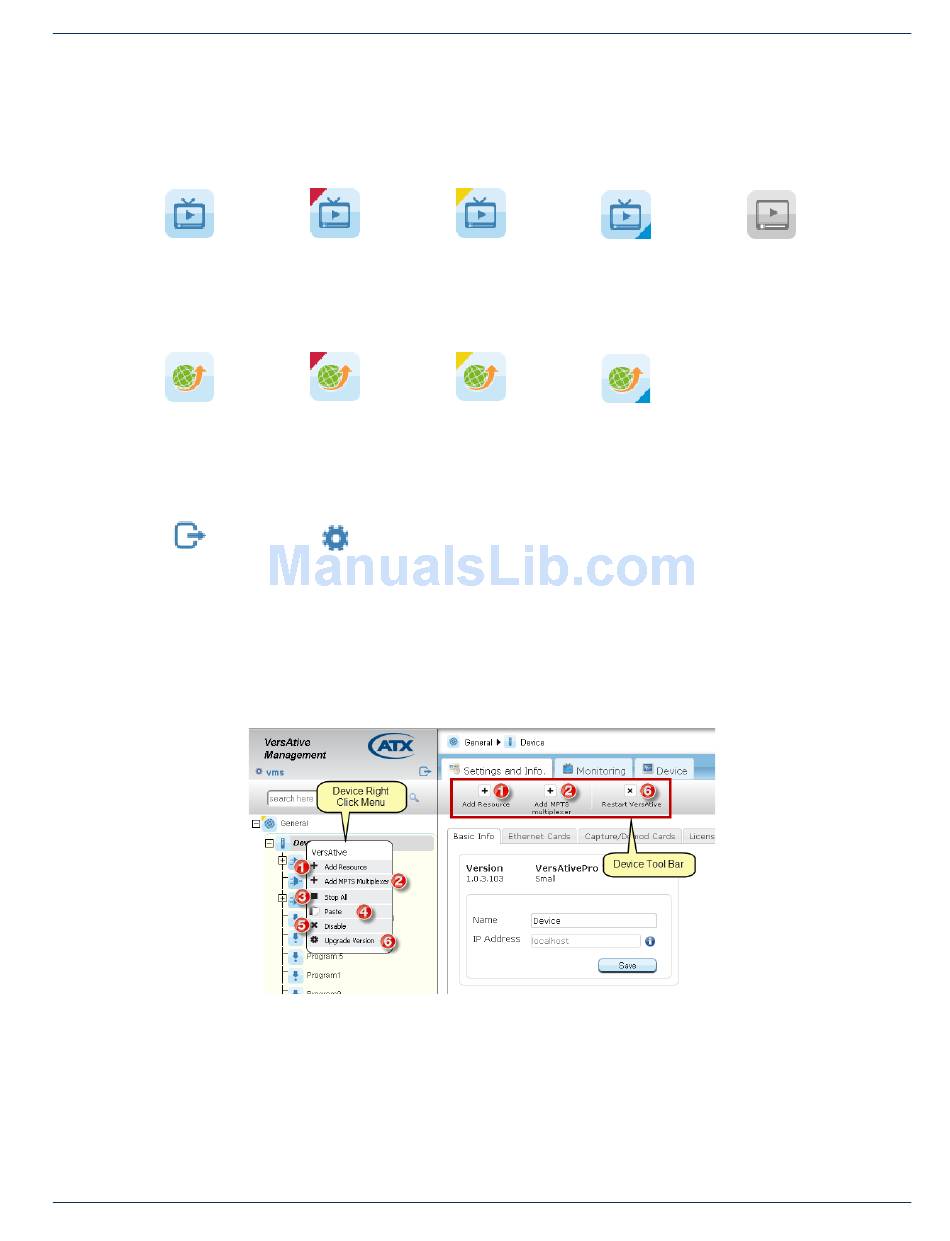

Figure 1-5: Device Right Click Menu & Tool Bar
II Micro – Operation Manual
®
Stream Warning
Stream Streaming
Publish Warning
Publish Streaming
CHAPTER 1: GUI ENVIRONMENT
Stream Disabled
1-5
