CHAPTER 1: VLAN TAGGING
12.4

Create a VLAN Using the Device GUI

There are two ways to create the VLAN. This procedure shows using the Device GUI.
The VLAN can also be created by MKIP, see
To start, open the GUI and login, refer to Figure 1-1.
Click on the Device in Tree View to select it, Figure 1-1.
1.
2. Click on Ethernet Cards tab.
3. Click Add V-LAN button on Tool Bar.
4. In the new dialog that opens, enter the VLAN Number(VLAN tag) in the 'name' window, Figure 1-2. The full name will
comprise the selected Ethernet port number plus the VLAN number or tag. In the example the selected physical port
is eth1 and we entered 666 with the resulting full name in the GUI being eth1.666
5. Chose the output Ethernet Interface that the VLAN should appear on. Changing the phy port changes the name.
6. Enter the VLAN Ethernet address, mask and gateway.
7. Click Add button to add this interface but it is not added immediately in the GUI.
8. Log out of the GUI then log back in again.
12-2
"12.5 Create VLAN with MKIP Interface"

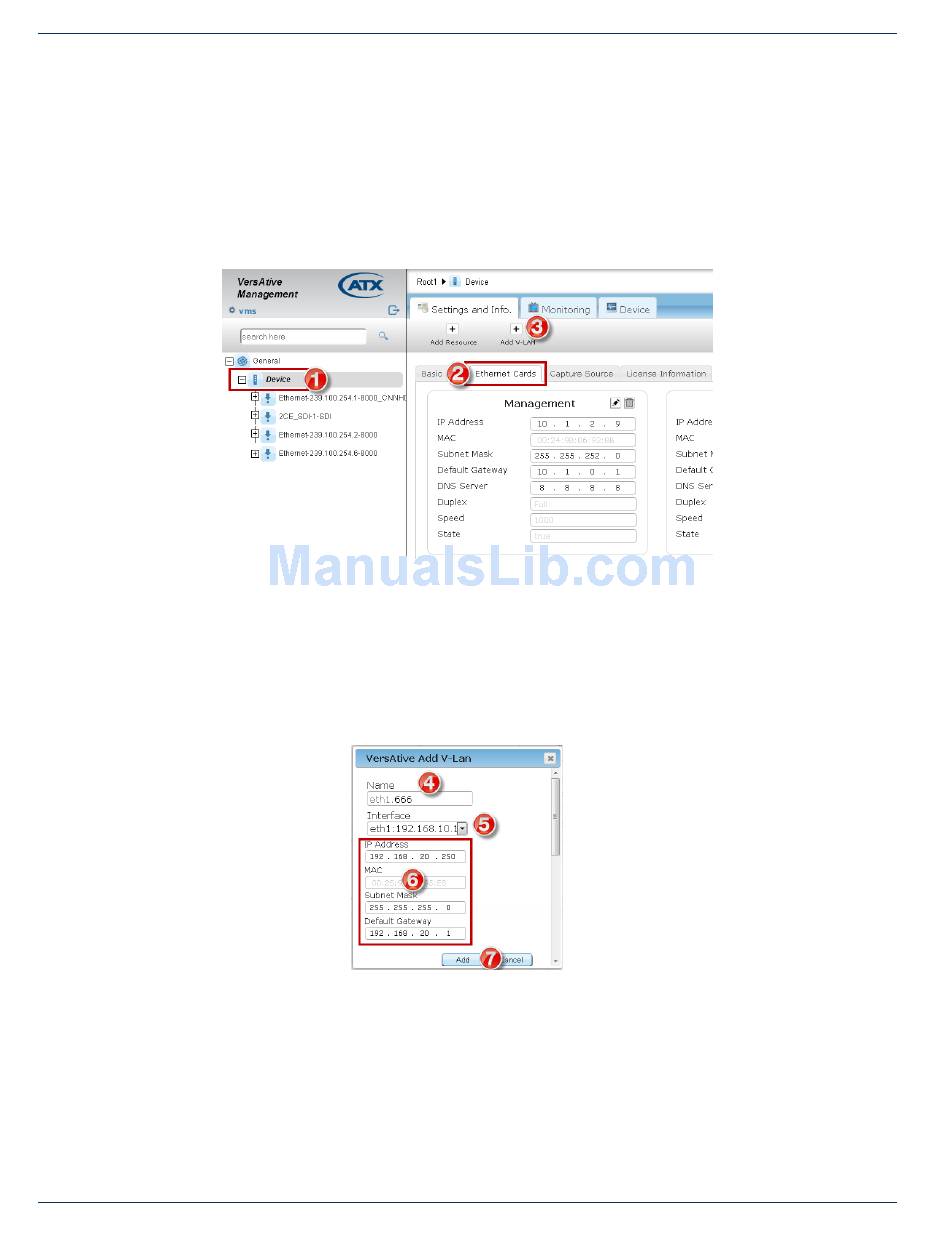

Figure 1-1: Adding New VLAN from GUI
Figure 1-2: Edit VLAN Properties
