ATX DigiVu II MICRO Operation Manual page 43

3. Give the Stream a meaningful name such as the Output Resolution size, Figure 1-20.
4. Refine the Audio and Video Codec parameters.
5. Select the Resolution and Aspect Ratio.
6. Click Apply to save the changes and create the stream.
7. The Adaptive Stream is added to the Session and is displayed on the Tree View, Figure 1-21.
8. The Adaptive Stream is also displayed on the Path Bar when the Stream is selected.
VersAtive Pro, DigiVu II, DigiVu
® ®

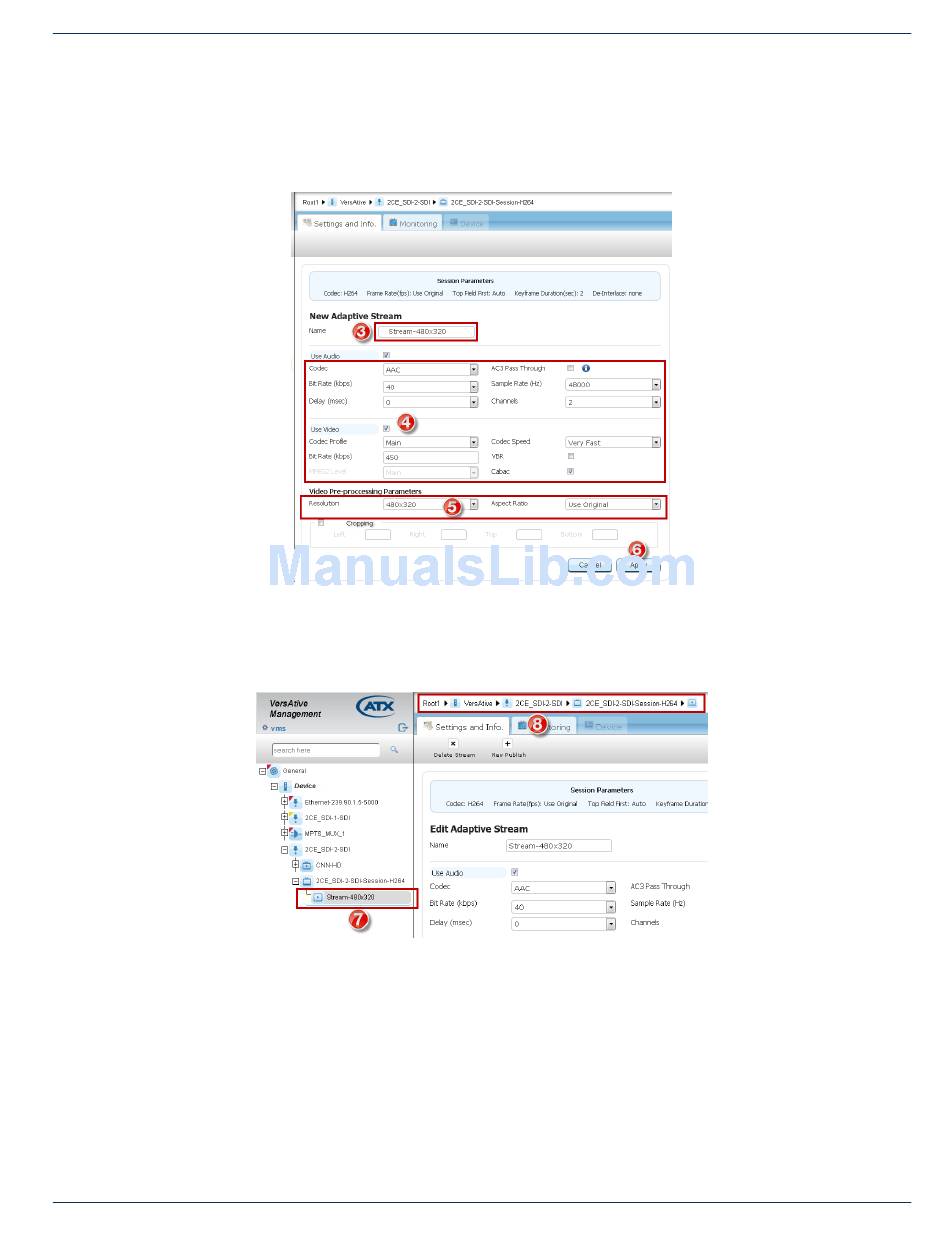

Figure 1-20: Refine Adaptive Stream Parameters
Figure 1-21: Adaptive Stream is Added to Session
II Micro – Operation Manual
®
CHAPTER 1: ENCODING APPLICATION
4-9
