5. The Program is added to the output MUX, Figure 1-11.
6. Click OK to save this result.
7. With input source selected in Tree View, added program is displayed under the MUX, Figure 1-12.
8.6

Adding Multiple TS Sources

Multiple input TS sources and programs may be added to any MUX up to the bitrate specified for the MUX, Figure 1-13.
1. Add more new TS Sources to a MUX, see
2. For each TS Source, add program(s) to the source, see
• Only the bitrate of added programs counts toward filling the output MUX.
VersAtive Pro, DigiVu II, DigiVu
® ®

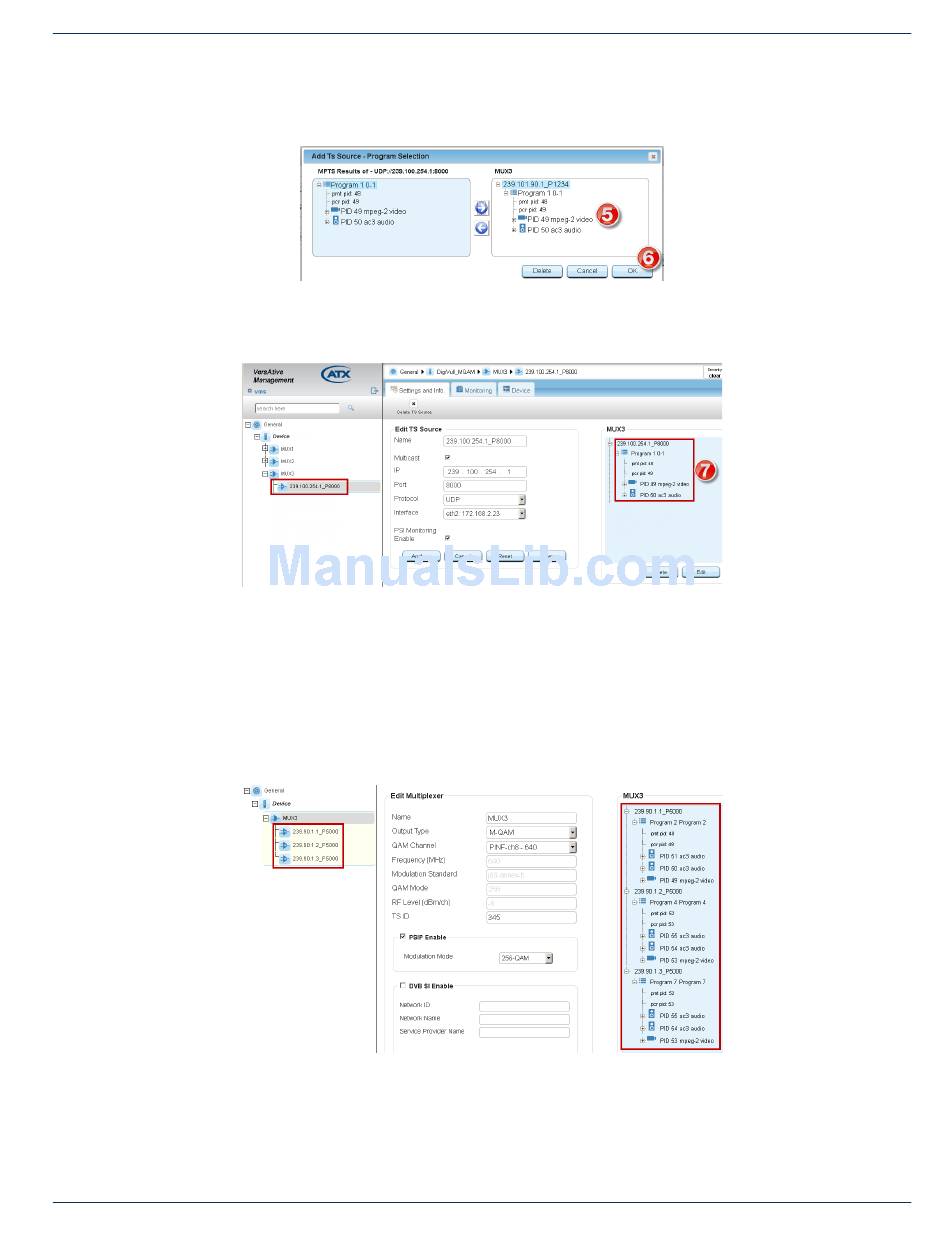

Figure 1-11: Program Added to TS Source
Figure 1-12: Program Displayed under TS Source
Figure 1-13: Added Program Displayed under TS Source
II Micro – Operation Manual
®
"Create A TS Source" on page
"Adding TS Source Programs" on page 8-4.
CHAPTER 1: QAM MULTIPLEXER
8-3.
8-5
