Adaptive Encoding Application - ATX DigiVu II MICRO Operation Manual

8. After the Connection is created or edited, click Save to apply the changes, Figure 1-15.
9. The Publish is added to the SPTS Stream and displayed in Tree View.
4.4

Adaptive Encoding Application

4.4.1 Create Adaptive Sessions
An Adaptive Session defines the Codec and Encoding parameters of the encoding. Multiple Adaptive Sessions with differing
resolutions and bitrate may be created.
1. Highlight the Resource that will have a new Adaptive Session, Figure 1-16.
2. Click New Adaptive Session on the Tool Bar.
3. Give the session a Name and refine parameters such as choice of Codec, Figure 1-17.
VersAtive Pro, DigiVu II, DigiVu
® ®

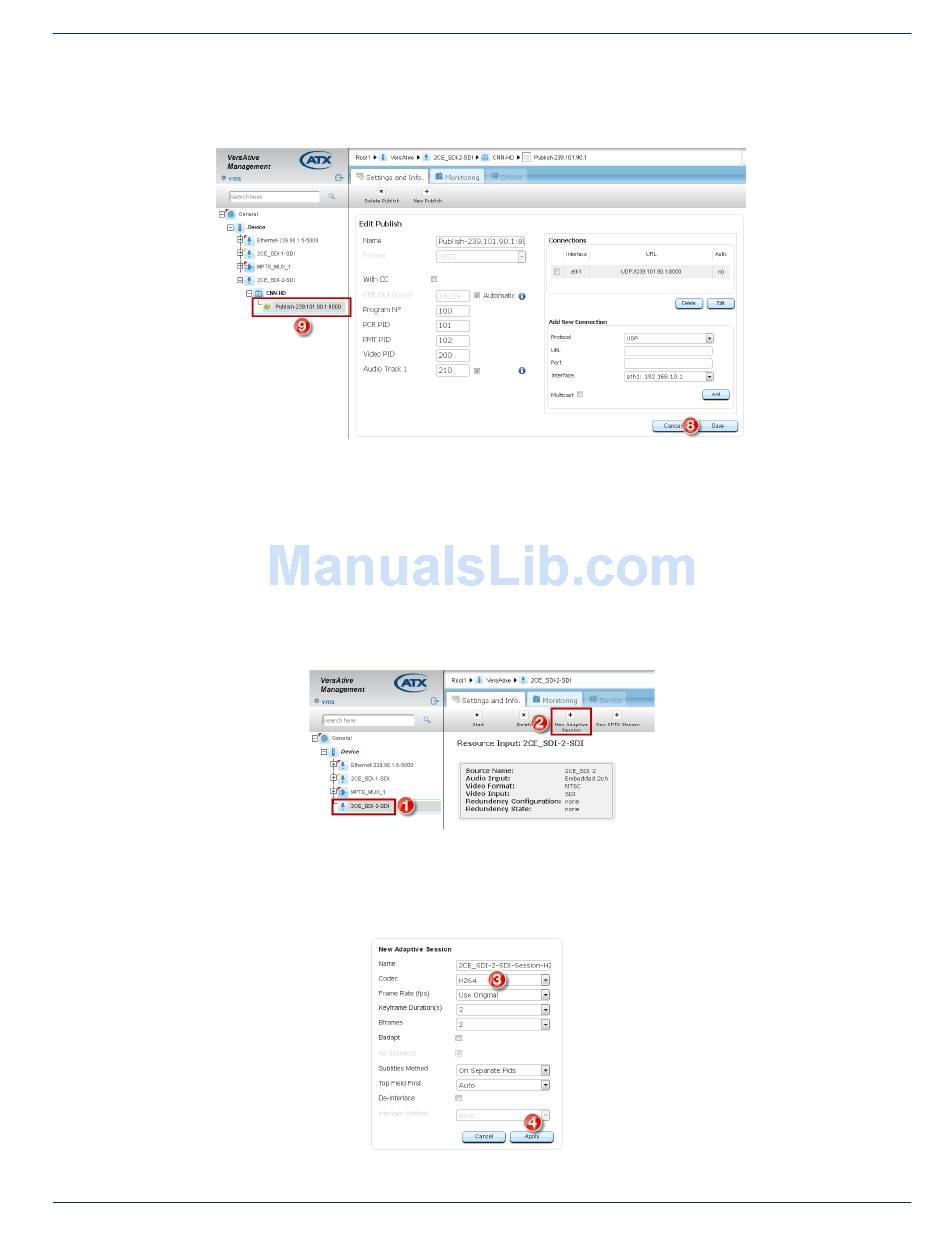

Figure 1-15: Publish Added to SPTS Stream
Figure 1-16: Create Adaptive Session
Figure 1-17: Refine Adaptive Session Parameters
II Micro – Operation Manual
®
CHAPTER 1: ENCODING APPLICATION
4-7
