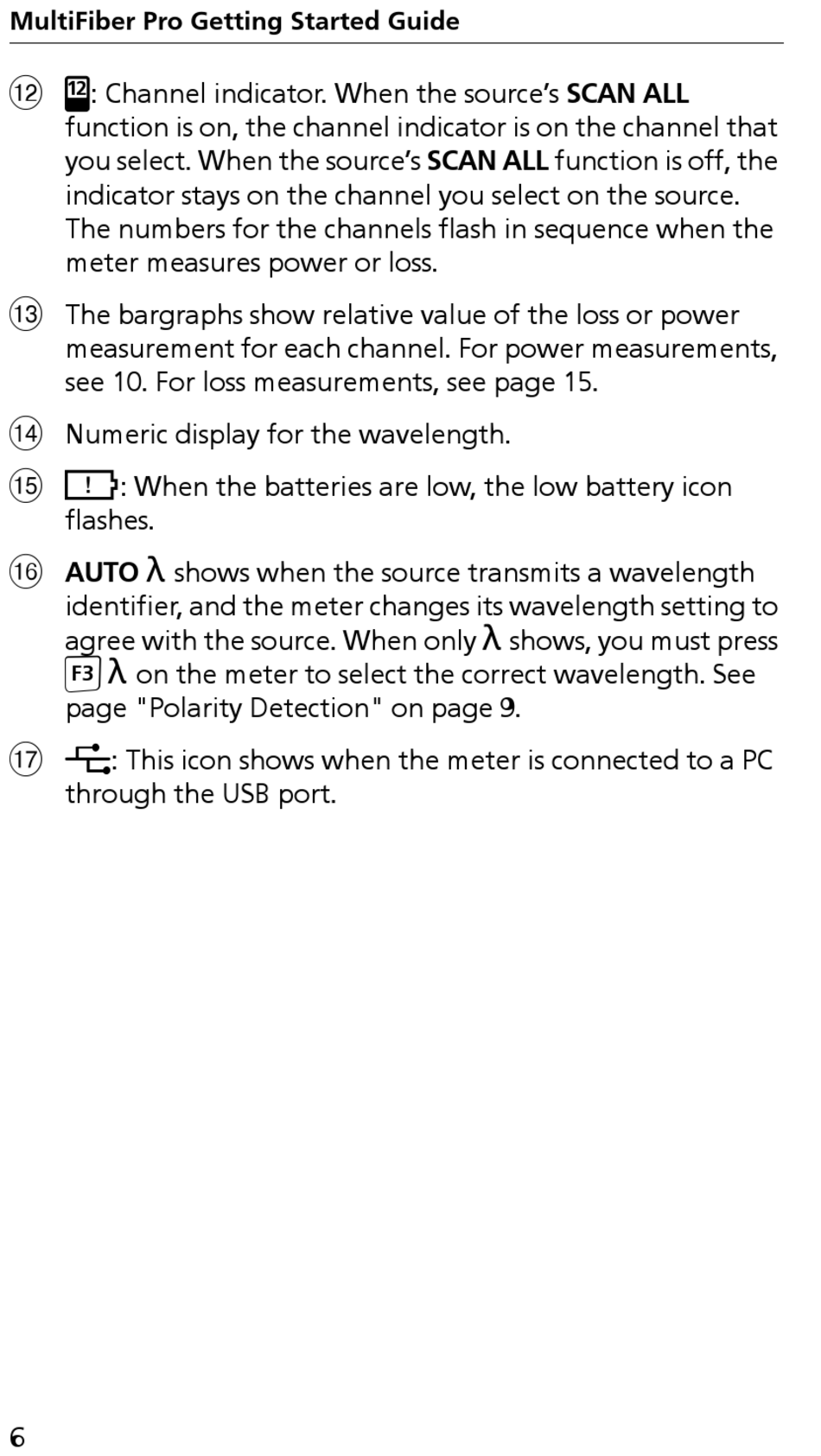

MultiFiber Pro Getting Started Guide
 
: Channel indicator. When the source's SCAN ALL
function is on, the channel indicator is on the channel that
you select. When the source's SCAN ALL function is off, the
indicator stays on the channel you select on the source.
The numbers for the channels flash in sequence when the
meter measures power or loss.

The bargraphs show relative value of the loss or power
measurement for each channel. For power measurements,
see 10. For loss measurements, see page 15.

Numeric display for the wavelength.
 
: When the batteries are low, the low battery icon
flashes.
 
AUTO
identifier, and the meter changes its wavelength setting to
agree with the source. When only
 
on the meter to select the correct wavelength. See
page "Polarity Detection" on page 9.
 
: This icon shows when the meter is connected to a PC
through the USB port.
6
shows when the source transmits a wavelength

shows, you must press
