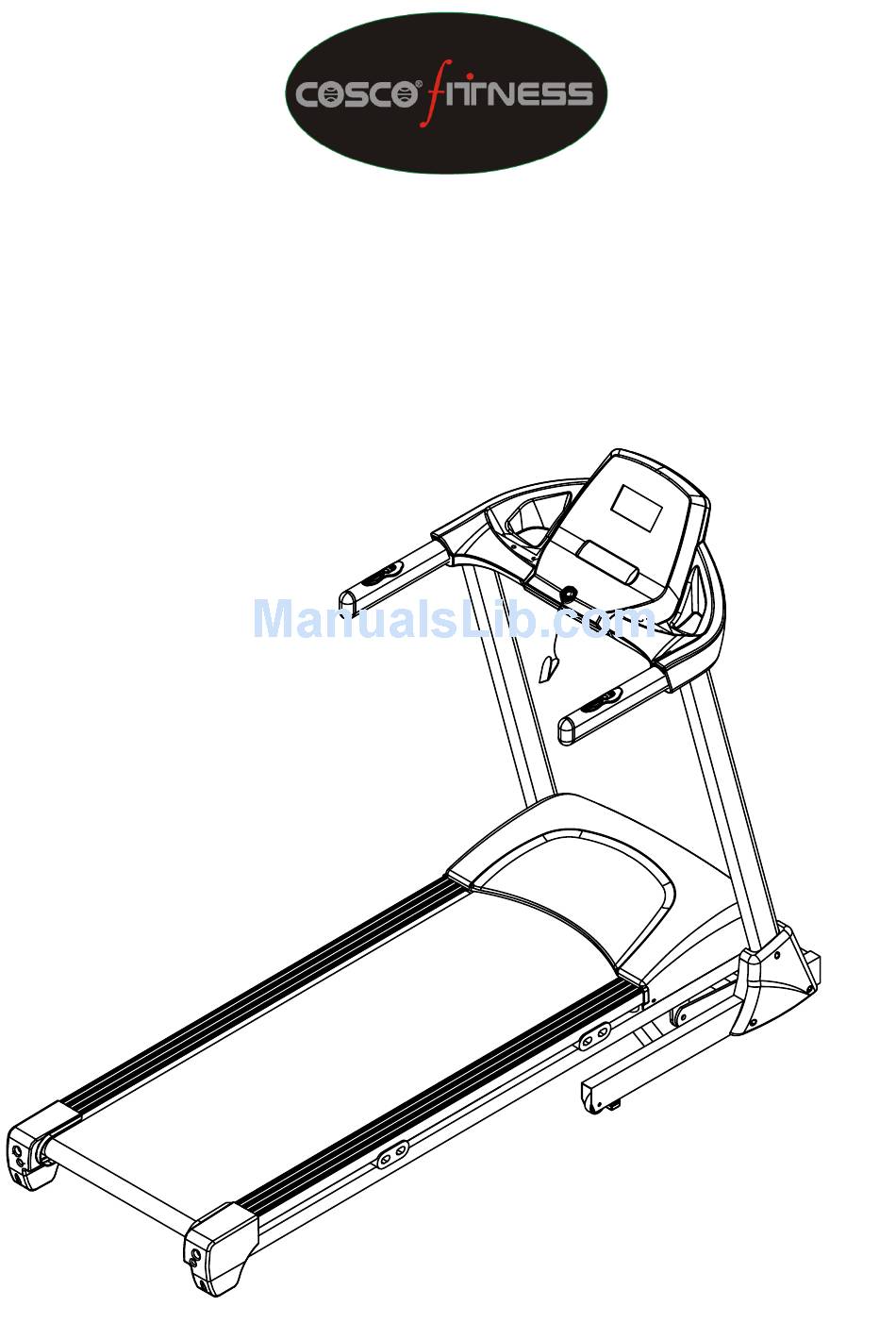

  • Page 1 TREADMILL MANUAL AC550...
  • Page 2 Thanks for buying our Fitness equipment, Do some warm-up exercise before use, you’ll get twice the result with half the effort. Such as follows: extend the neck up and down twist the waist left and right level push forwards upright straighten one's back - 2 -...

  • Page 3: Safety Guidelines

    left and right poise exercise up and down extend exercise thigh extend exercise calf extend exercise SAFETY GUIDELINES: Before beginning any exercise program, you should consult with your doctor. It is recommended that you undergo a complete physical examination. Please follow the instructions: 1.
  • Page 4 8. Keep hands away from moving parts 9. Please note that there is a weight limitation for this product. If your weight more than 140kgs. It is not recommended that you use this product. Serious injury may occur if the user weight exceeds the limit shown here.
  • Page 5 EXPLORE DRAWING - 5 -...
  • Page 6 PART LIST PART NO PART NAME Q'TY Computer frame Left upright Right upright Base frame Incline frame Running platform Computer main cover Computer belly pan Handlebar foam Handlebar tube plug Short cut key board Key press of short cut key Safety key Protective cover of left upright Protective cover of right upright...
  • Page 7 Running belt Motor belt Motor Buffered cushion of motor Fixed board of motor Motor cover Control board of motor 40*40 Rectangle tube plug Magnet ring M8*30mm Allen head bolt Ø8 Spring washer M8*20mm Allen head bolt ST4.2*12 Screw ST4.2*15 Screw M8*85mm Allen head bolt M8*50mm Allen head bolt ST4.8*15 Screw...

  • Page 8: Base Frame

    Control wire of upright Control wire of base frame HARDWARE COMPARISON CHART For your convenience, we have identified the hardware used in the assembly of this product. The chart below is provided to help you to identify items that may be unfamiliar to you. ST4.2*15 Screw M8*20mm Allen head bolt M10*20mm Allen head bolt...
  • Page 9 ASSEMBLING INSTRUCTIONS WARNING: Please put on all the screws, washers and bolts then tighten them. STEP1: First connect the control wire of upright 75 and the control wire of base frame 76. Then fix the uprights on the base frame with M10*20mm Allen head bolt 58 and Ø10 Washer 59 ATTENTION: Be careful when you connect the two console-controller wires.

  • Page 10: Damper

    STEP3: Fix the protective cover of uprights on the uprights with ST4.2*15 Screw 55. STEP4: Folding illustration: To unfold the treadmill: Folding illustration: To drop down treadmill: 1. Strike the damper. (as shown by the arrow on left side). 2. Hold on to the top end covers and pull down the treadmill slowly on the ground.

  • Page 11: Computer Operation

    To fold up the treadmill: To fold up treadmill: Both hands hold on the bottom end covers (arrows show in the left and right side) and lift up the treadmill. COMPUTER OPERATION Panel layout The Operation The required main power is 220~240VAC. - 11 -...
  • Page 12 ◆KEY PRESS & FUNCTION START: Press this key once, the treadmill start to run. STOP: during running, press STOP key to stop treadmill MODE: press this key to select time countdown, distance countdown, calorie countdown, calories countdown, fixed program P1、P2、P3、P4、P5、P6、P7、P8、P9、P10、P11、P12 and U-1,U-2, U-3, ENTER: confirm key in USER SPEED+: press this key to adjust speed value and increase the selected item (speed, time, distance, calories) value...
  • Page 13 FIX PROGRAM MODE · Press MODE key to select fixed program, time window flash and display “30:00”, range is 5-99 minutes, press speed+/- key to select time value · Press START key to start treadmill, treadmill will run at the speed set in fixed program, time window display countdown value, when time window display “0:00”, treadmill will stop to run.

  • Page 14: Side Rail

    segment · After setting, press START key to start to run. Treadmill will run at the speed set in user program, time window display countdown time value, when time window display “0:00”, the treadmill will stop to run. ◆ HEARTBEAT TEST Hands hold handlebar pulse, pulse window display the corresponding pulse value ·...

  • Page 15: Rear Roller

    BELT ADJUSTMENT: Belt adjustment and tension performs two functions: adjustment for tension and centering. The running belt has been adjusted properly at the factory. However transportation, uneven flooring or other unpredicted reasons could cause the belt to shift off center resulting in the belt rubbing with the plastic side rail or end caps and possibly causing damage.
  • Page 16 Every 3 months of operation lift the sides of the walking belt and feel the top surface of the walking board as far as you can reach. If you feel signs of silicone, no further lubrication is required. If it feels dry to the touch, follow the instructions below.
