Summary of Contents for Cosco Fitness SX-2277

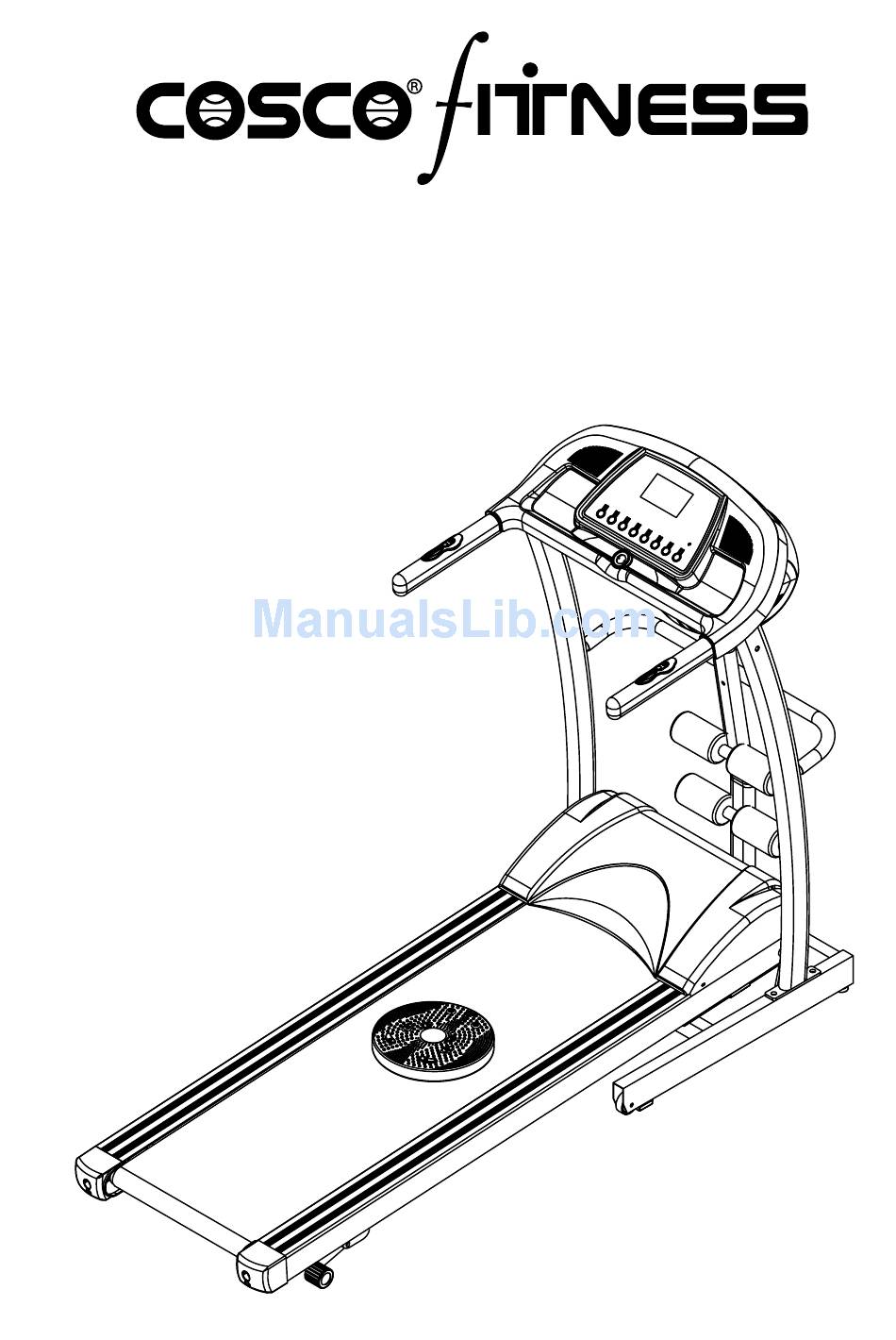

- Page 1 TREADMILL MANUAL SX-2277...
- Page 2 Thanks for buying our Fitness equipment, Do some warm-up exercise before use, you’ll get twice the result with half the effort. Such as follows: extend the neck up and down twist the waist left and right level push forwards upright straighten one's back - 2 -...
-
Page 3: Safety Guidelines
left and right poise exercise up and down extend exercise thigh extend exercise calf extend exercise SAFETY GUIDELINES: Before beginning any exercise program, you should consult with your doctor. It is recommended that you undergo a complete physical examination. Please follow the instructions: 1. - Page 4 5. Make sure all parts are assembled, nuts and bolts are tightened 6. Do not use the treadmill if the unit is disassembled in any way 7. When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the same circuit.
- Page 5 EXPLORE DRAWING - 5 -...
-
Page 6: Part List
PART LIST PART NO PART NAME Q'TY Motor cover Front roller with fly wheel Rear roller Running belt Massager Running deck Motor belt Motor Speed sensor frame Speed sensor Motor frame Side rail 60*30 Rectangle tube plug Control board of motor Transformer Power wire Power wire cushion... - Page 7 Base frame Level frame Connect sheath of running platform 70*30 Rectangle tube plug Right upright Foam Left upright M8*30mm Allen head bolt U-Tube Safety key Computer ST4.8*16 Screw M8*50mm Allen head bolt Ø8 washer M8*85mm Allen head bolt M6*30 Bolt M6*40 Bolt Ø6 Washer M6 Nylon nut...
-
Page 8: Hardware Comparison Chart
M10*35mm Allen head bolt M8*45mm Allen head bolt M10*20mm Allen head bolt M10 Nylon nut M8*45mm Allen head bolt M10*30mm Allen head bolt Manual incline metal sheath Ø13 Plastic washer Key press Start/stop board of handlebar Speed board of handlebar Start/stop key of handlebar Short cut key of speed of handlebar Pulse wire of handlebar... - Page 9 chart below is provided to help you to identify items that may be unfamiliar to you. e l l e l l e l l e l l e l l Ø Ø Ø - 9 -...
-
Page 10: Assembling Instructions
ASSEMBLING INSTRUCTIONS WARNING: Please put on all the screws, washers and bolts then tighten them. STEP1: 1: First connect the control wire 86of upright and control wire of base frame91 2: fix the uprights on the base frame with M10*20mm Allen head bolt 73, Ø10 washer70, M8*40mm Allen head bolt68and Ø8 washer 48. - Page 11 STEP3: 1. Fix U-Tube onto uprights with Support tube sleeve105, Ø8 Arc washer 101 and M8*90mm Allen head bolt100 2. Fix massager support frame onto U-Tube with M8*70mm Allen head bolt 102, Ø8 Arc washer 101, M8 Cover cap nut 103, Ø8 washer 48 3.
-
Page 12: Computer Operation
To fold up the treadmill: To fold up treadmill: Both hands hold on the bottom end covers (arrows show in the left and right side) and lift up the treadmill. COMPUTER OPERATION Panel layout - 12 -... - Page 13 The Operation ◆ Insert the safety key into the treadmill (if safety pin is deciduous, all display show 『- - - -』) ◆ How to Start? Power The required main power is 220 - 240 VAC. All field display initial value 0 and no flash MANUAL window light It is normal mode at this time.
-
Page 14: Key Instruction
KEY INSTRUCTION MODE In the stop state, press “MODE” key, treadmill will work Normal –DST countdown – time countdown – CAL countdown –15min – 30min– 45min – Normal SPEED+ In the running state, press this key to increase 0.1km/h every time. If you press it without leaving, the speed will increase quickly. -
Page 15: Program Table
In any case need under STOP state: press MODE key to switch into other function mode ◆ The Display Range The initial data of The Range of the The range of data of The initial data Count Down display Count Down 15Min、30Min、... - Page 16 SPEED ◆ Error Message Error condition Illustration Check Further action Connect error between Check that the lines between Replace the connection panel and controller panel and controller are lines connected or not Replace the device Replace the panel Replace the adapter Error on motor / MOS Check that the line to motor is Replace the device...
-
Page 17: Maintenance
MAINTENANCE Proper maintenance is very important to ensure your treadmill is always in top working condition. Improper maintenance could cause damage or shorten the life of your treadmill and exceed the LIMITED WARRANTY coverage. 1. Important: Never use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep liquids away and keep it out of direct sunlight. -
Page 18: Deck Lubrication
towards the center. Repeat the above procedure until the walking belt is centered. It may be necessary to set walking belt tension once you have completed this procedure if the belt feels like it is slipping while walking. Refer below to the “Walking belt slipping” instructions. 3. - Page 19 REMARK: When the treadmill is over load by any case, for the using safety the fuse will be broken and the power will be cut off . Change a new fuse and start again. - 19 -...
