vbBalancer+
Sensor Type
Accelerometer
Velocity Sensor
Displacement
Sensor
(or prox probe)
For information on how to define a sensor see Defining and Editing
Sensors (page 101).

Connecting Sensors to the Instrument

Sensors are connected to the instrument via BNC and, in the case of
the vbBalancer+ instrument, seven-pin LEMO socket. Use the
provided triple BNC adapter (LEMO breakout cable) to connect
channels 2 through 4 if using these channels on a vbBalancer+
instrument.
Note: The triple BNC adapter's three BNC inputs are numbered to
indicate channel.
BNC Attach the sensor cable plug to the BNC connector(s) by
inserting and gently turning clockwise. Remove by turning in an
anti-clockwise direction then pulling up
Sensitivity
mV/g 0.1-10 000
mV/in/s 0.1-10 000
mV/mm/s 0.34-90.55
mV/mil 0.1-10 000
mV/µm 0.34-90.55

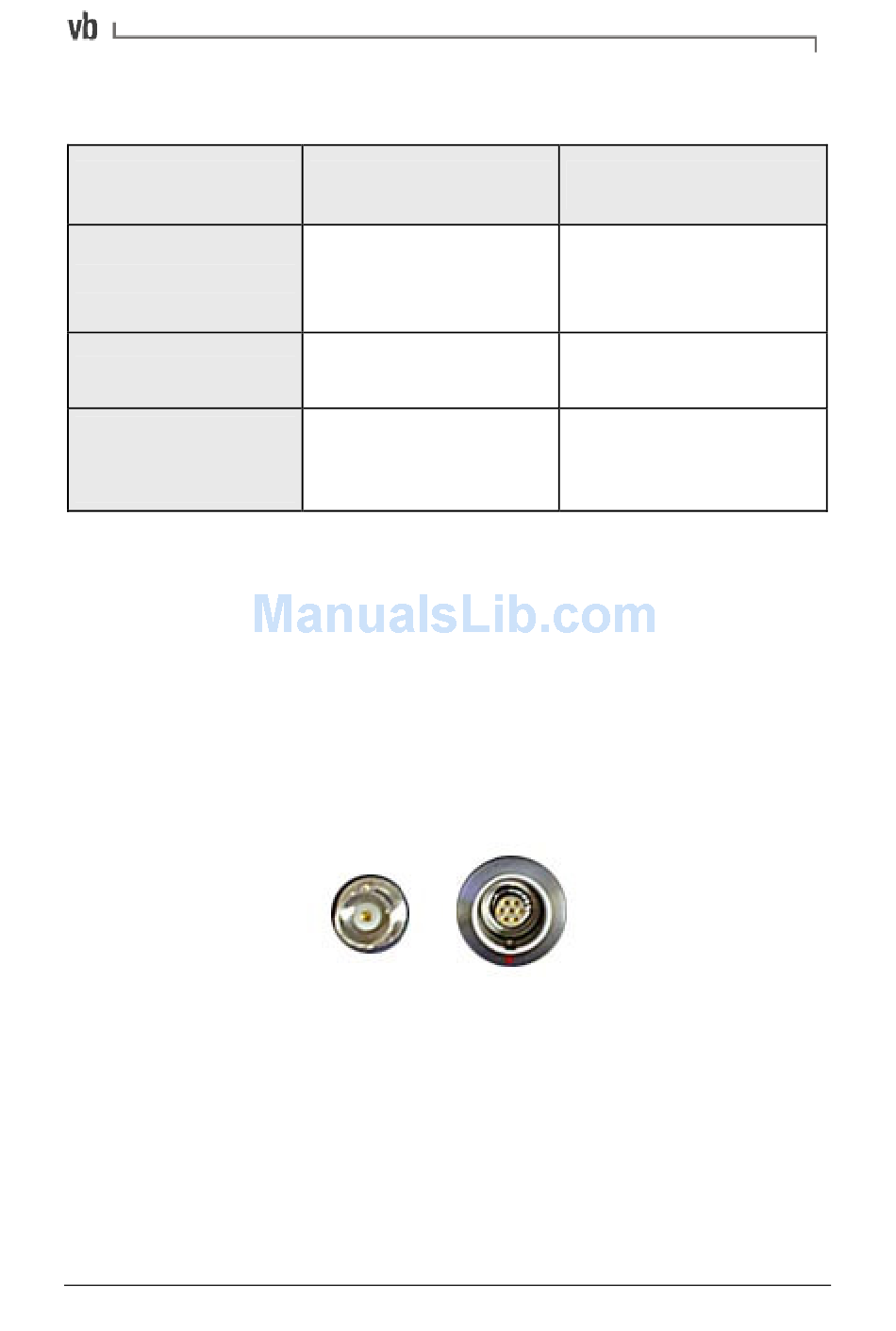

BNC (left), seven-pin LEMO (right)
Measurement Types
Acceleration
Velocity
Displacement
Velocity
Displacement
Displacement
Section 3: Using Sensors 29
