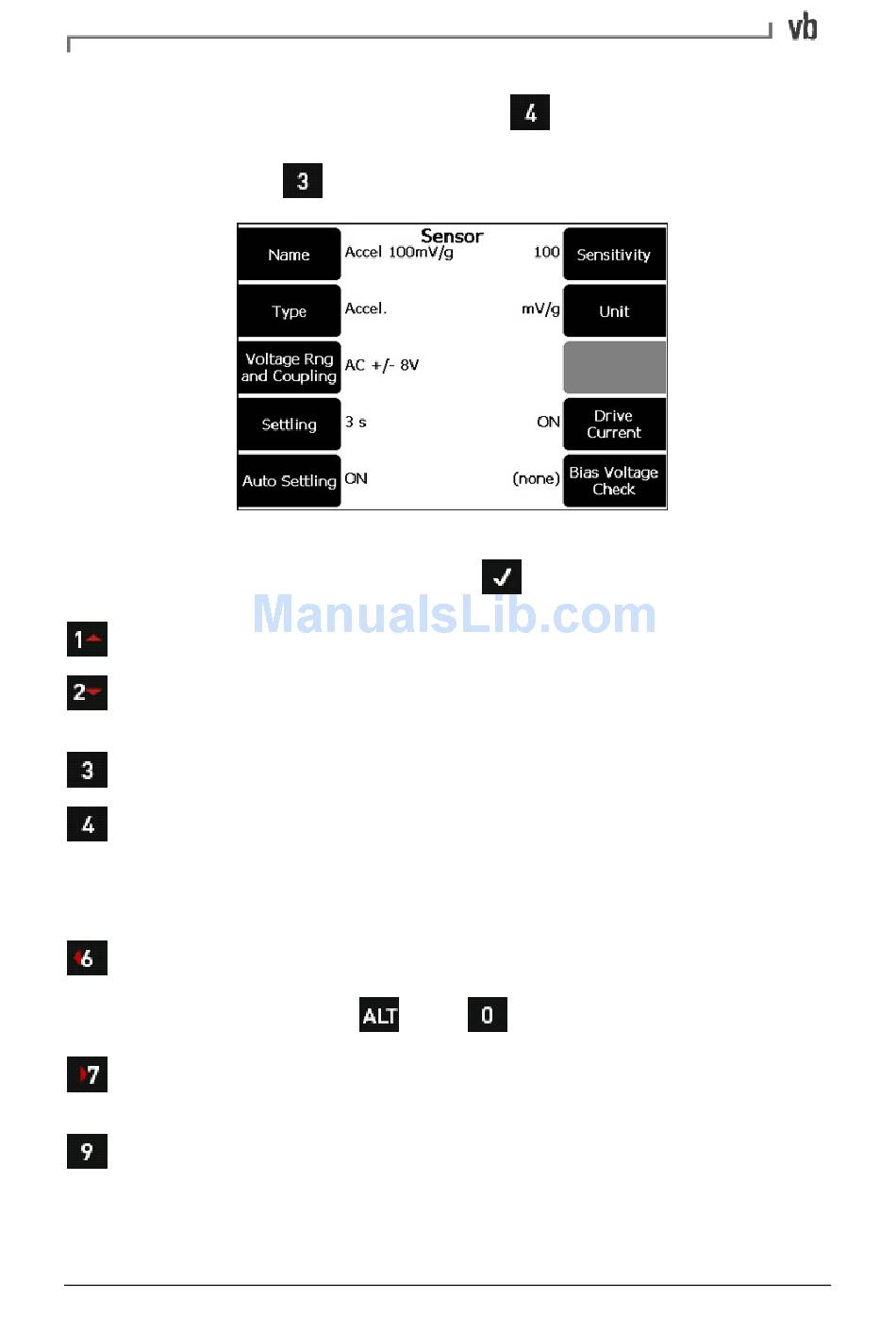

To create a new sensor press
•
use the left-hand arrow keys to select an existing sensor
then press
Define the settings by pressing the corresponding keys.
•
When you are finished press
Edit the Name.
Toggle the Sensor Type between acceleration, velocity,
displacement and current.
Toggle Voltage Ring and Coupling settings.
Toggle Auto Settling ON/OFF. When Auto Settling is ON the
instrument will ignore the user-specified settling time (see
above) and will automatically select the most efficient settling
time for your sensor type.
Edit the Sensitivity. The range of sensitivities will vary
depending on the selected sensor's Store Unit. To enter a
decimal point press
Toggle the Store Unit e.g between mV/g and mV/m/s
accelerometers.
Toggle the sensor's Drive Current ON/OFF. (Drive Current is
the
2.2
accelerometers).
102
Section 10: Creating, Editing and Deleting Items
to change its settings.
then
mA
power
Create New Sensor or
supply
for
2
for
®
IEPE/ICP
-type
