PCI-DAS6031 & PCI-DAS6033 User's Guide

DAQ-Sync connector and pinout

Connector type
Compatible cables
Signal Name
DS A/D START TRIGGER
DS A/D STOP TRIGGER
DS A/D CONVERT
DS D/A UPDATE
DS D/A START TRIGGER
RESERVED
SYNC CLK

Field wiring, signal termination and conditioning

You can use the following accessory boards with the C100HD50-x cable.
! ISO-RACK16/P—16-channel, 5B module rack. Details are available at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept%5Fid=127&pf%5Fid=1111.
! ISO-DA02/P—2-channel, 5B module rack. Details are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept%5Fid=128&pf%5Fid=710.
! BNC-16SE—16-channel single-ended BNC connector box. Details are available at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept%5Fid=101&pf%5Fid=713.
! BNC-16DI—8-channel differential BNC connector box. Details are available at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept%5Fid=101&pf%5Fid=714.
! CIO-MINI50—50-pin screw terminal board. Details are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=258.
! CIO-TERM100—100-pin screw terminal board with positions for pull-up resistors. Details are available
on our web site at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=281.
! SCB-50—50-conductor, shielded signal connection box. Details are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1168.
You can use the following accessory boards with the C100MMS-x cable.
! SCB-100—100-conductor, shielded signal connection box. Details are available at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1169.
! BNC-16DI-FE—16-channel BNC connector box. Details are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=101&pf_id=1541.
Table 2-4. DAQ-Sync Connector & Cable Types
14-pin right-angle 100 mil box header
MCC p/n: CDS-14-x, 14-pin ribbon cable for board-to board DAQ-Sync connection;
x = number of boards (from 2 - 5). See Figure 2-3.
Table 2-5. DAQ-Sync connector pinout (view from top)
Pin Pin
1 ■ ■ 2
3 ■ ■ 4
5 ■ ■ 6
7 ■ ■ 8
9 ■ ■ 10
11 ■ ■ 12
13 14
■ ■
2
1
14
13
14
14-pin Ribbon Cable

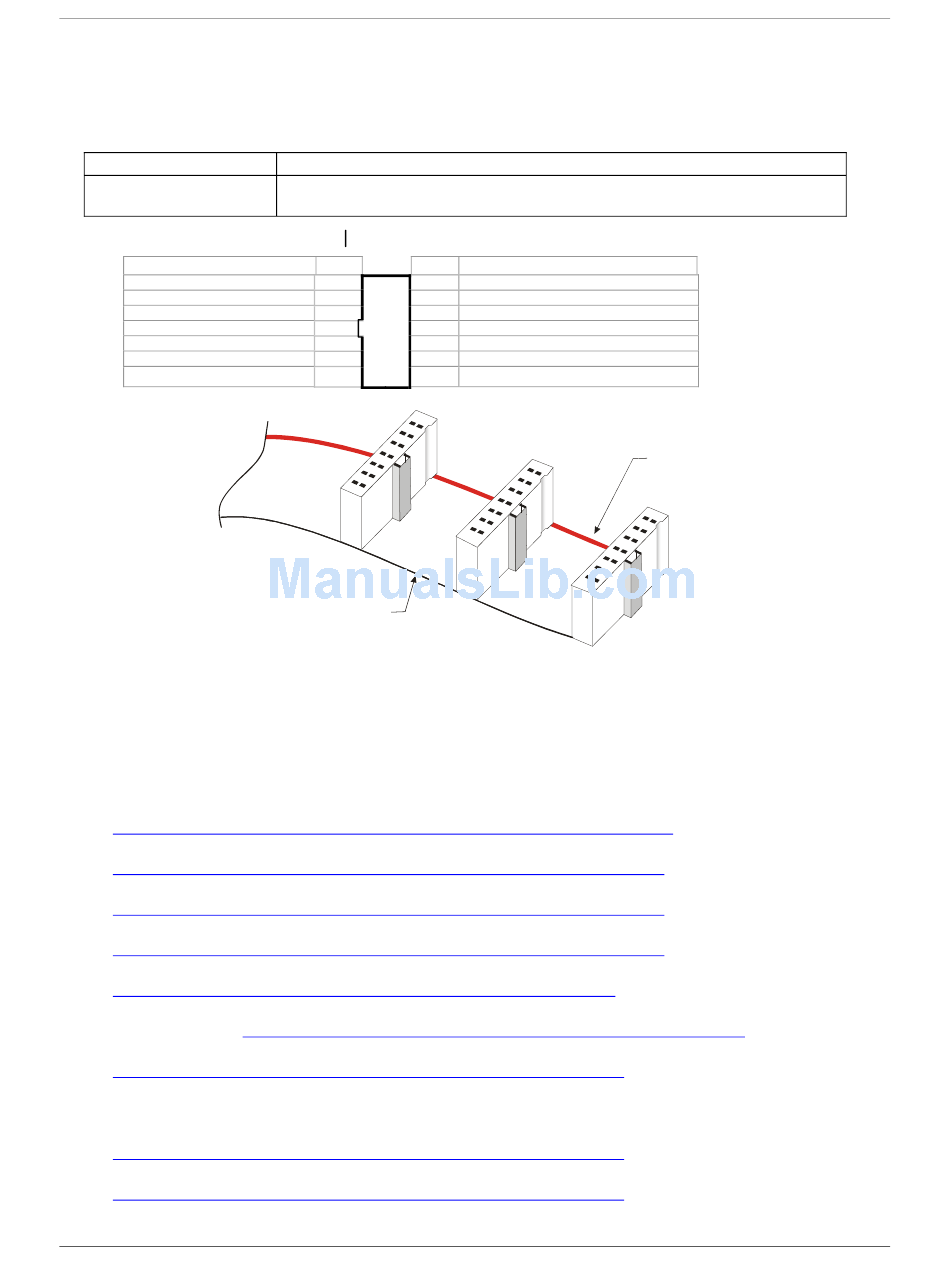

Figure 2-3. CDS-14-3 cable
Installing the PCI-DAS6031 and PCI-DAS6033
Signal Name
GND
GND
GND
GND
GND
GND
GND
2
1
2
13
14
13
2-8
The red stripe
identifies pin # 1
1
