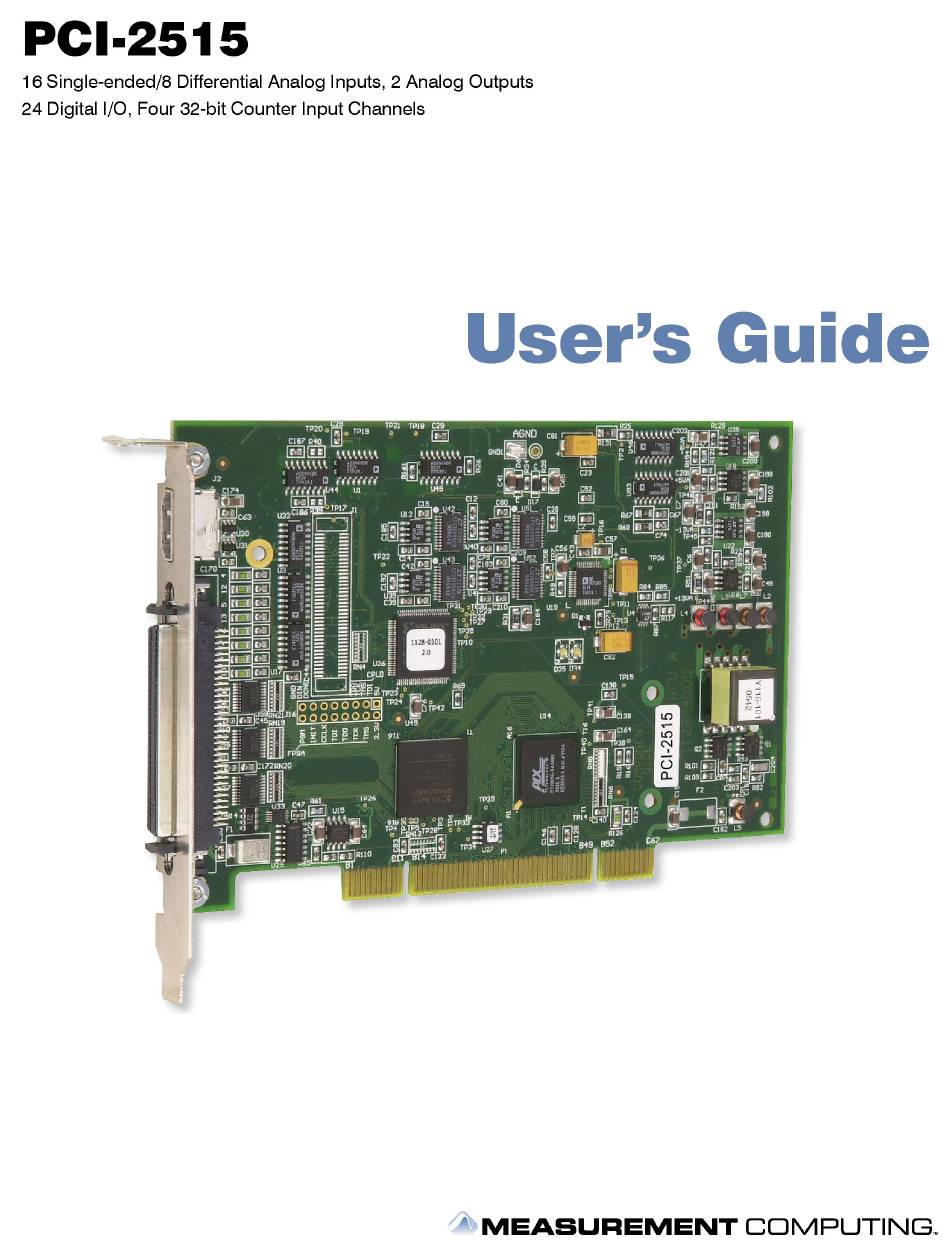

- Page 2 PCI-2515 User's Guide Document Revision 1, September, 2006 © Copyright 2006, Measurement Computing Corporation...
- Page 3 Measurement Computing. Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our two missions: To offer the highest-quality, computer-based data acquisition, control, and GPIB hardware and software available—at...
- Page 4 Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of Measurement Computing Corporation.
-
Page 5: Table Of Contents
Chapter 1 Introducing the PCI-2515........................8 Overview: PCI-2515 features ..........................8 Software features ..............................8 Chapter 2 Installing the PCI-2515..........................9 What comes with your PCI-2515 shipment? ......................9 Hardware ..................................9 Additional documentation..............................10 Unpacking the PCI-2515 ..........................10 Installing the software ............................10 Installing the hardware .............................10 Configuring the hardware ..........................11... - Page 6 PCI-2515 User's Guide Mapped channels ................................20 Counter modes .................................21 Debounce modes................................22 Timer outputs..............................25 Example: Timer outputs..............................25 Multiple PCI-2515s per PC ..........................25 Chapter 5 Calibrating the PCI-2515........................26 Chapter 6 Specifications............................27 Analog input ..............................27 Accuracy ..................................27 Analog outputs..............................28 Digital input/output............................28 Counters................................29 Input sequencer..............................29 Trigger sources and modes ..........................30...
-
Page 7: Preface
About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the PCI-2515 so that you get the most out of its analog input, digital I/O, and counter/timer I/O features. -
Page 8: Introducing The Pci-2515
±10 V, ±5 V, ±2 V, ±1 V, ±0.5 V, ±0.2 V, and ±0.1V. The PCI-2515 also has two 16-bit, 1 MHz analog output channels with an output range of -10V to +10V. The board has 24 high-speed lines of digital I/O, two timer outputs, and four 32-bit counters. It provides up to 12 MHz scanning on all digital input lines. -
Page 9: Installing The Pci-2515
PCI-2515 Optional components Cables and signal conditioning accessories that are compatible with the PCI-2515 are not included with PCI- 2515 orders, and must be ordered separately. If you ordered any of the following products with your board, they should be included with your shipment. -
Page 10: Additional Documentation
As with any electronic device, you should take care while handling to avoid damage from static electricity. Before removing the PCI-2515 from its packaging, ground yourself using a wrist strap or by simply touching the computer chassis or other grounded object to eliminate any stored static charge. -
Page 11: Configuring The Hardware
Configuring the hardware All hardware configuration options on the PCI-2515 are software-controlled. You can select some of the configuration options using InstaCal, such as the analog input configuration (16 single-ended or eight differential channels), and the edge used for pacing when using an external clock. -
Page 12: Pin Out - Main I/O Connector
PCI-2515 User's Guide Installing the PCI-2515 Pin out – main I/O connector Table 2-2. PCI-2515 pin out Signal name Signal name • • ACH0 (ACH0 HI) ACH8 (ACH0 LO) • • AGND ACH1 (ACH1 HI) • • ACH9 (ACH1 LO) -
Page 13: Field Wiring And Signal Termination
PCI-2515 User's Guide Installing the PCI-2515 Figure 2-1. CA-68-3R cable Figure 2-2. CA-68-3S and CA-68-6S cable Field wiring and signal termination You can use the following MCC screw terminal board to terminate field signals and route them into the PCI- 2515 board using the CA-68-3R, CA-68-3S, or CA-68-6S cable: : Termination board with screw terminals. -
Page 14: Programming And Developing Applications
2, your PCI-2515 should now be installed and ready for use. Although the board is part of the larger Measurement Computing hardware family, in general there may be no correspondence among registers for different boards. Software written at the register level for other models will not function correctly with your board. -
Page 15: Functional Details
PCI-2515 block diagram Figure 4-1 is a simplified block diagram of the PCI-2515. This board provides all of the functional elements shown in the figure. Figure 4-1. PCI-2515 functional block diagram Synchronous I/O –... -
Page 16: Bus Mastering Dma
The PCI-2515 supports bus mastering DMA. With multiple DMA channels, analog, digital, and counter input data, as well as digital output data, can flow between the PC and the PCI-2515 without consuming valuable CPU time. The driver supplied with the PCI-2515 automatically uses bus mastering DMA to efficiently conduct I/O from the PC to the PCI-2515. -
Page 17: Digital I/O
You can also synchronize everything—input scans, DACs, pattern digital outputs—to one clock, which is either internally-generated or externally-applied. Digital I/O Twenty-four TTL-level digital I/O lines are included in each PCI-2515. You can program digital I/O in 8-bit groups as either inputs or outputs and scan them in several modes (see "Digital input scanning"... -
Page 18: Digital Input Scanning
Digital outputs can be updated asynchronously at anytime before, during, or after an acquisition. You can use two of the 8-bit ports to generate a digital pattern at up to 12 MHz. The PCI-2515 supports digital pattern generation with bus mastering DMA. The digital pattern can be read from PC RAM. -
Page 19: Digital Triggering
Software-based triggering usually results in long period of inactivity between the trigger condition being detected and the data being acquired. However, the PCI-2515 avoids this situation by using pre-trigger data. When software-based-triggering is used, and the PC detects the trigger condition—which may be thousands of readings after the actual occurrence of the signal—the PCI-2515 driver automatically looks back to the location... -
Page 20: Counter Inputs
Counter inputs Four 32-bit counters are built into the PCI-2515. Each counter accepts frequency inputs up to 20 MHz. The counters can concurrently monitor time periods, frequencies, pulses, and other event driven incremental occurrences directly from pulse-generators, limit switches, proximity switches, and magnetic pick-ups. -
Page 21: Counter Modes
Sets the signal on the mapped counter input to latch the count. By default, the start of scan signal—a signal internal to the PCI-2515 pulses once every scan period to indicate the start of a scan group—latches the count, so the count is updated each time a scan is started. -
Page 22: Debounce Modes
PCI-2515 User's Guide Functional Details Any counter can be gated by the mapped channel. When the mapped channel is high, the counter is enabled. When the mapped channel is low, the counter is disabled (but holds the count value). The mapped channel can be any counter input channel other than the counter being gated. - Page 23 PCI-2515 User's Guide Functional Details Figure 4-6. Debounce module – trigger after stable mode The following time periods (T1 through T5) pertain to Figure 4-6. In trigger after stable mode, the input signal to the debounce module is required to have a period of stability after an incoming edge, in order for that edge to be accepted (passed through to the counter module.) The debounce time for this example is equal to T2 and T5.
- Page 24 PCI-2515 User's Guide Functional Details Figure 4-8. Example of two debounce modes interpreting the same signal Debounce times should be set according to the amount of instability expected in the input signal. Setting a debounce time that is too short may result in unwanted glitches clocking the counter. Setting a debounce time too long may result in an input signal being rejected entirely.
-
Page 25: Timer Outputs
Multiple PCI-2515s per PC PCI-2515 features can be replicated up to four times, as up to four boards can be installed in a single host PC. The serial number on each PCI-2515 distinguishes one from another. When multiple PCI-2515s are installed, they can be operated synchronously. -
Page 26: Calibrating The Pci-2515
Calibrating the PCI-2515 Every range of a PCI-2515 device is calibrated at the factory using a digital NIST traceable calibration method. This method works by storing a correction factor for each range on the unit at the time of calibration. For analog inputs, the user can adjust the calibration of the board while it is installed in the acquisition system. -
Page 27: Specifications
Chapter 6 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Analog input Table 1. Analog input specifications A/D converter type Successive approximation Resolution 16-bits Number of channels 16 single-ended/8 differential, software selectable Input ranges (SW programmable) Bipolar: ±10 V, ±5 V, ±2 V, ±1 V , ±0.5 V, ±0.2 V, ±0.1 V Maximum sample rate... -
Page 28: Analog Outputs
PCI-2515 User's Guide Specifications Analog outputs Analog output channels can be updated synchronously relative to scanned inputs, and clocked from either an internal onboard clock, or an external clock source. Analog outputs can also be updated asynchronously, independent of any other scanning system. -
Page 29: Counters
PCI-2515 User's Guide Specifications Counters Counter inputs can be scanned based on an internal programmable timer or an external clock source. Table 5. Counter specifications Channels 4 independent Resolution 32-bit Input frequency 20 MHz maximum Input signal range -5 V to 10 V Input characteristics 10 kΩ... -
Page 30: Trigger Sources And Modes
PCI-2515 User's Guide Specifications Trigger sources and modes Table 7. Trigger sources and modes Input scan Single channel analog hardware trigger trigger sources Single channel analog software trigger External-single channel digital trigger (TTL TRG input) Digital pattern trigger Counter/totalizer trigger... -
Page 31: Environmental
PCI-2515 User's Guide Specifications Environmental Table 11. Environmental specifications Operating temperature range 0 to +60 °C Storage temperature range -40 to +80 °C Relative humidity 0 to 95% non-condensing Mechanical Table 12. Mechanical specifications Vibration MIL STD 810E cat 1 and 10 Dimensions 165 mm (W) x 15 mm (D) x 108 mm (H) (6.5"... - Page 32 PCI-2515 User's Guide Specifications Table 15. 8-channel differential pin out Function Function ACH0 HI ACH0 LO AGND ACH1 HI ACH1 LO AGND ACH2 HI ACH2 LO AGND ACH3 HI ACH3 LO AGND SGND ACH4 HI ACH4 LO AGND ACH5 HI...
- Page 33 Category: Information technology equipment. IOTech, Incorporated declares under sole responsibility that the product PCI-2515 to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents: EU EMC Directive 89/336/EEC: Electromagnetic Compatibility, EN 61326 (1997) Amendment 1 (1998) Emissions: Group 1, Class A EN 55022 (1990)/CISPR 22: Radiated and Conducted emissions.
- Page 34 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com...
