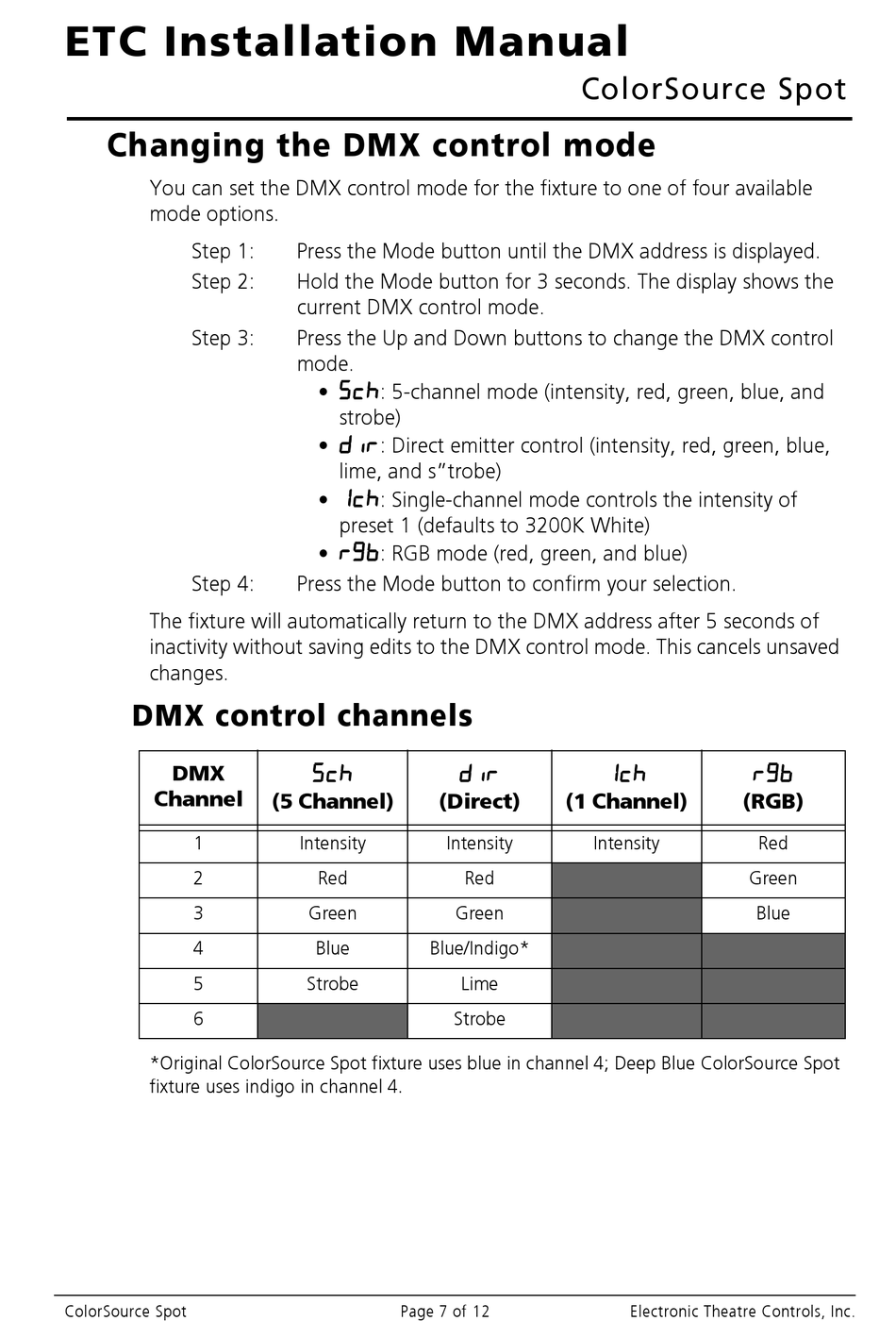

Changing the DMX control mode

You can set the DMX control mode for the fixture to one of four available
mode options.
Step 1:
Step 2:
Step 3:
Step 4:
The fixture will automatically return to the DMX address after 5 seconds of
inactivity without saving edits to the DMX control mode. This cancels unsaved
changes.

DMX control channels

DMX
Channel
1
2
3
4
5
6
*Original ColorSource Spot fixture uses blue in channel 4; Deep Blue ColorSource Spot
fixture uses indigo in channel 4.
ColorSource Spot
Press the Mode button until the DMX address is displayed.
Hold the Mode button for 3 seconds. The display shows the
current DMX control mode.
Press the Up and Down buttons to change the DMX control
mode.

• : 5-channel mode (intensity, red, green, blue, and
strobe)

• : Direct emitter control (intensity, red, green, blue,
lime, and s"trobe)

• : Single-channel mode controls the intensity of
preset 1 (defaults to 3200K White)

• : RGB mode (red, green, and blue)
Press the Mode button to confirm your selection.

(5 Channel) (Direct)
Intensity
Red
Green
Blue Blue/Indigo*
Strobe
Page 7 of 12
ColorSource Spot
 
(1 Channel)
Intensity Intensity
Red
Green
Lime
Strobe

(RGB)
Red
Green
Blue
