Operating Elements and Interfaces

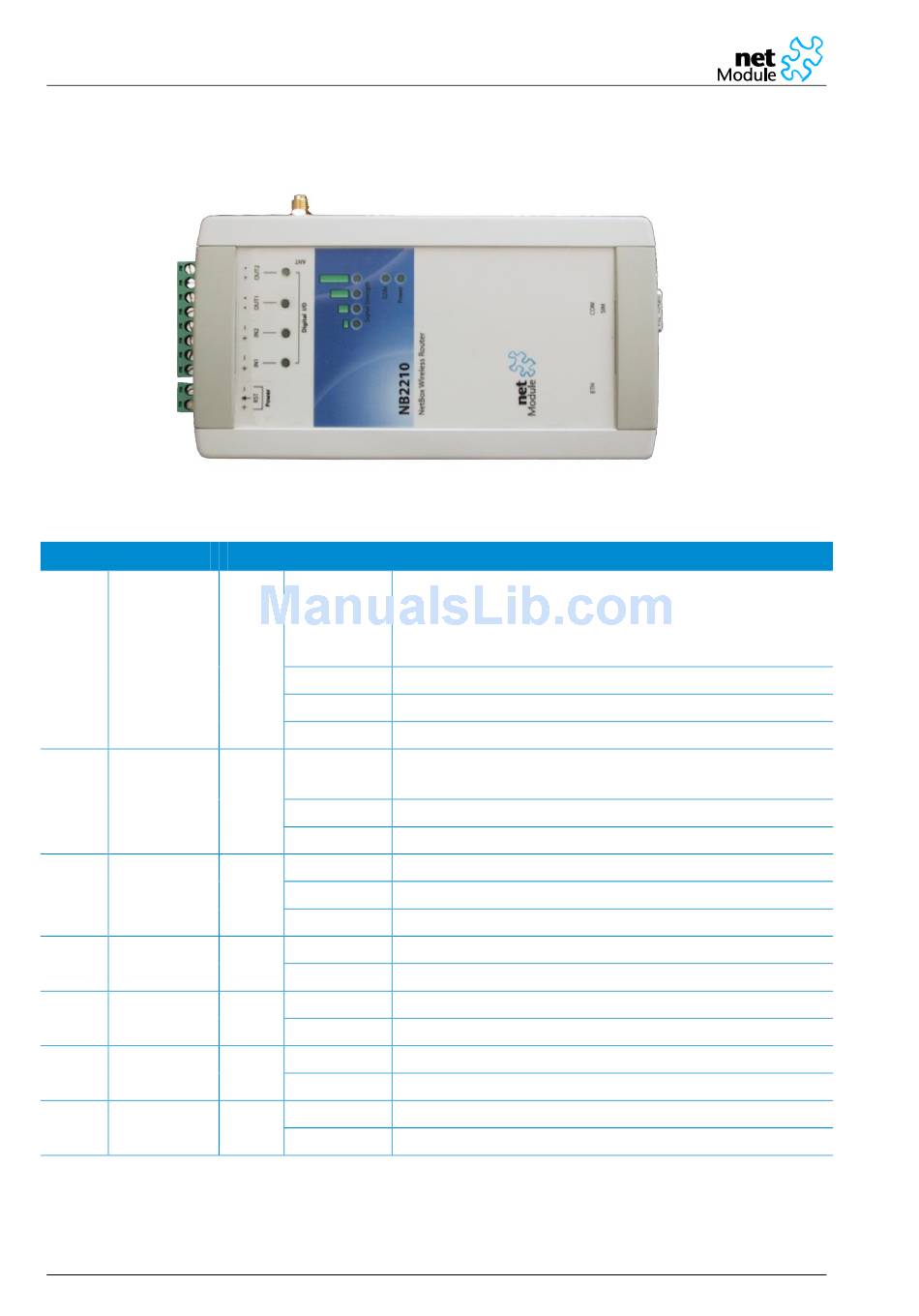

The following table describes the meaning of the status indicators:
Panel Label
Front Power
Front Signal
Strength
Front GSM
Front IN1
IN2
Front OUT1
OUT2
Bottom Link
Bottom Activity
Table 2: NB2210 status indicators
User Manual NetBox Wireless Routers
26 October 2011
Color State Function
green blinking This indicates one of the following conditions:
slowly
the device is starting up
loading a new configuration
factory reset initiated by Web Manager
on The device is ready
off The device is not powered and/or does not start up
blinking fast Restart triggered by watchdog
green on 1 LED on: weak signal, 2 LEDs on: medium signal
3 LEDs on: strong signal, 4 LEDs on: very strong signal
off No or insufficient signal
running Software update
green on Mobile connection is being established
on Mobile connection is up
off Mobile connection is down
green on Input set
off Input not set
green on Output on
off Output off
green on Physical link
off No physical link
orange on Data transmission
off Not data transmission
