2.3

NB2500

2.3.1

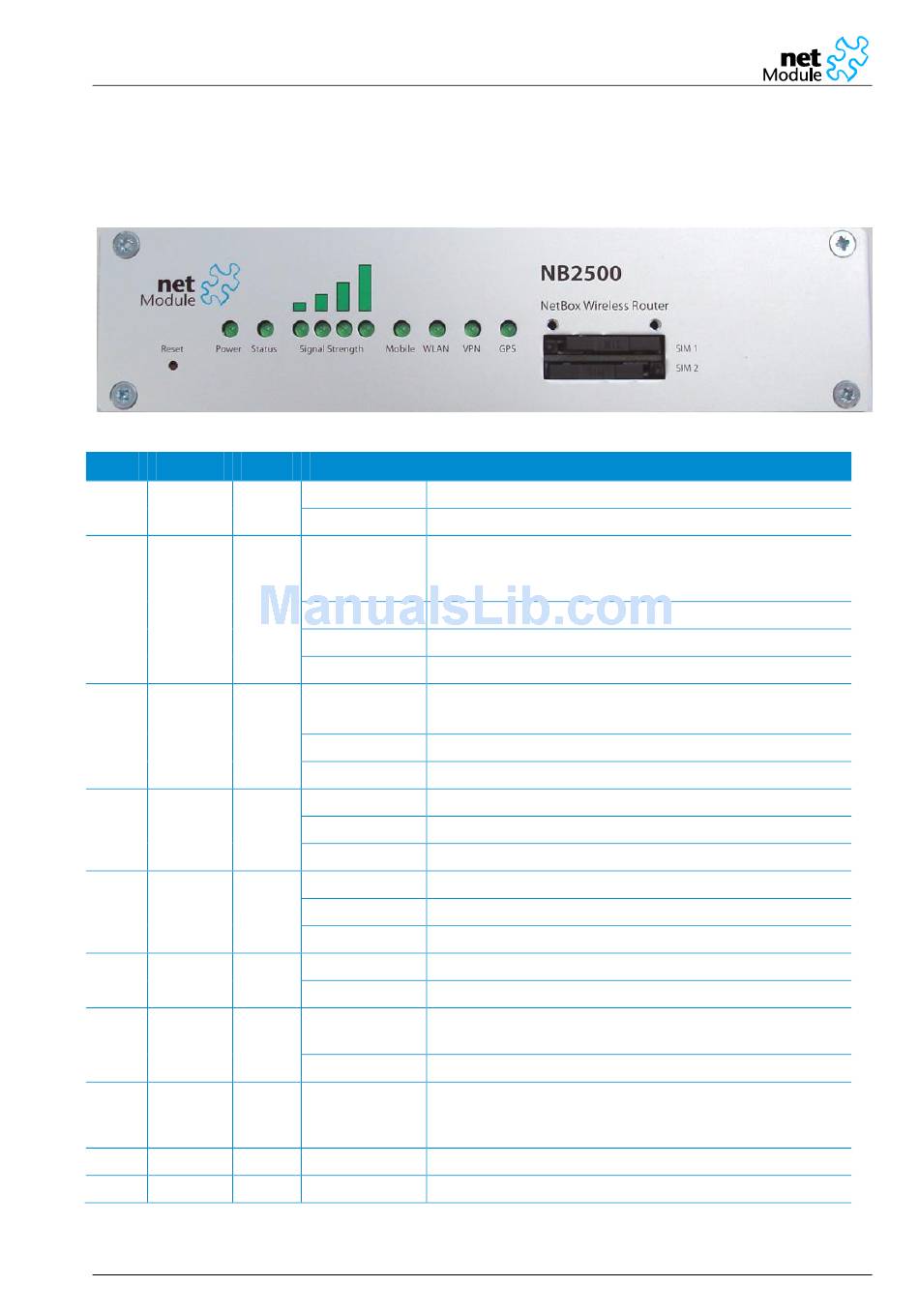

Operating Elements and Interfaces

The front panel has 10 status indicators. In addition there are two SIM card slots and a reset button at the
front panel.
The following table describes the components on the front panel:
Panel Label Color
Front Power green
Front Status green
Front Signal green
Strength
Front Mobile green
(UMTS /
GSM)
Front WLAN green
Front VPN green
Front GPS green
Front Reset -
Front SIM 1 -
Front SIM 2 -
Table 4: NB2500 components on the front panel
User Manual NetBox Wireless Routers
26 October 2011
State Function
on The device is powered
off Power is missing
blinking slowly This indicates one of the following conditions: 1) the device
is starting up, 2) loading a new configuration, 3) factory reset
initiated by Web Manager
on The device is ready
blinking fast Restart triggered by watchdog
off The device does not start up
on 1 LED on: weak signal, 2 LEDs on: medium signal
3 LEDs on: strong signal, 4 LEDs on: very strong signal
off No or insufficient signal
running Software update
blinking slowly Mobile connection is being established
on Mobile network connection is up
off Mobile network connection is down
blinking slowly Mobile connection is being established
on WLAN connection is up
off WLAN connection is down
on VPN connection is up
off VPN connection is down
on Service is enabled and valid GPS data is received and trans-
mitted
off No GPS data transmitted (not available or service disabled)
- Restart: press this button when the status LED is on
Factory reset: press and hold this button for at least 5 se-
conds.
- SIM socket 1
- SIM socket 2
