2.5.2

Pin Assignments

2.5.2.1
Power
Pin:
Signal
1
V+ (20-50V=)
2
Not connected
3
V
GND
4
Not connected
2.5.2.2
Ethernet
Pin:
Signal
1
Tx+
2
Rx+
3
Tx-
4
Rx-
2.5.2.3
Digital I/0
Pin:
Signal
1
In1 +
2
In1 -
3
In2 +
4
In2 -
5
Out1: Dry contact relay
Normally open
6
7
Out2: Dry contact relay
Normally closed
8
User Manual NetBox Wireless Routers
26 October 2011

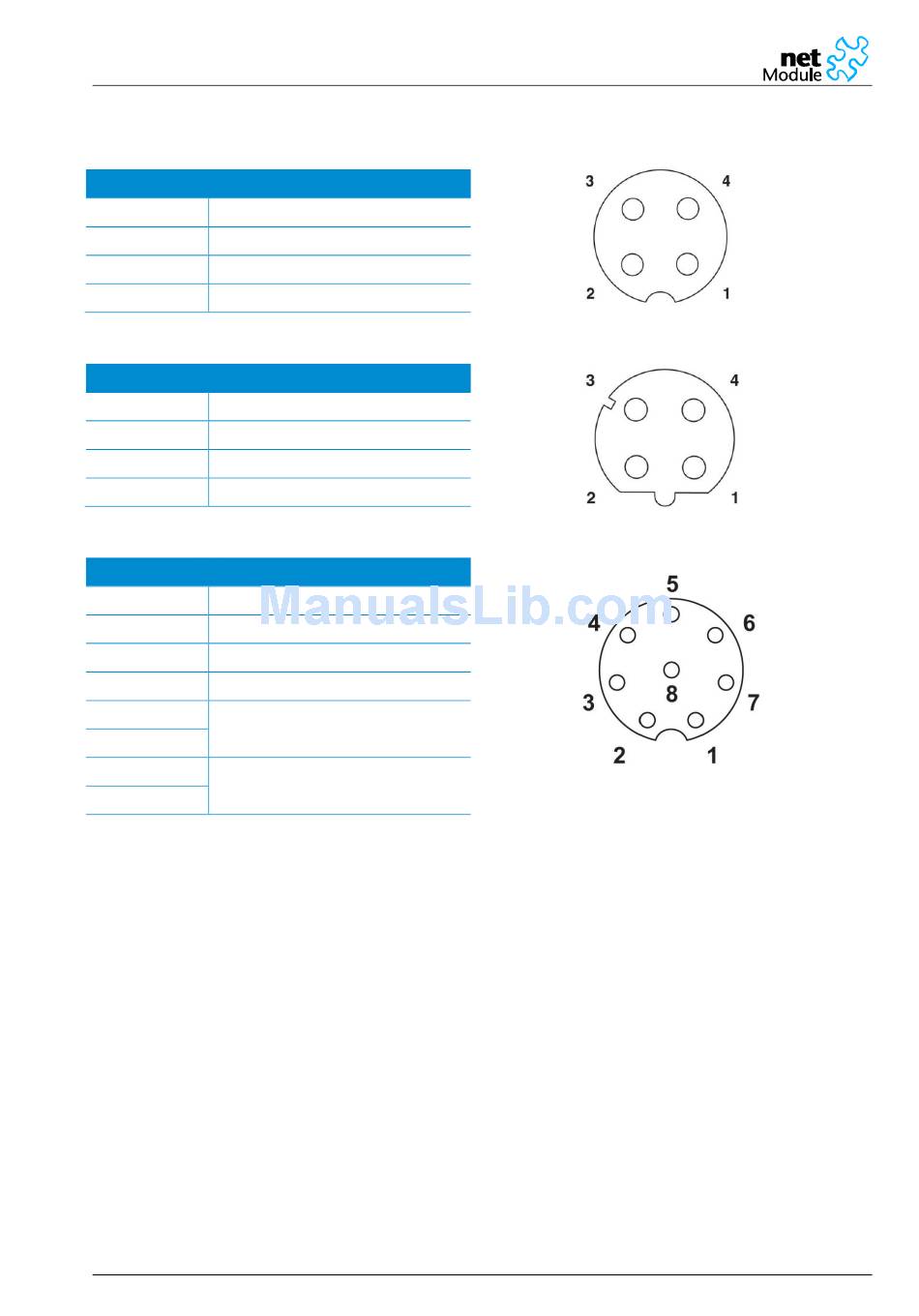

Image 1: M12 4-pole A-coded
Image 2: M12 4-pole D-coded
Image 3: M12 8-pole A-coded
netbox_manual_e_v1.4.docx
19/111
