Pin Assignments

2.3.2.1 Power
Pin: Signal:
- V
GND
+ 9-32 V =
Table 5: Pin assignment power plug
2.3.2.2 Ethernet
Pin: Signal
1 TX+
2 TX-
3 RX+
4 -
5 -
6 RX-
7 -
8 -
Table 6: Pin assignment Ethernet
2.3.2.3 Serial
Pin: RS232
1 RTS
2 DTR
3 TXD
4 GND
5 GND
6 RXD
7 DSR
8 CTS
Table 7: Pin assignment COM port
User Manual NetBox Wireless Routers
26 October 2011
RS485
Do not connect
Do not connect
Do not connect
GND
GND
Do not connect
RxD/TxD-
RxD/TxD+
netbox_manual_e_v1.4.docx

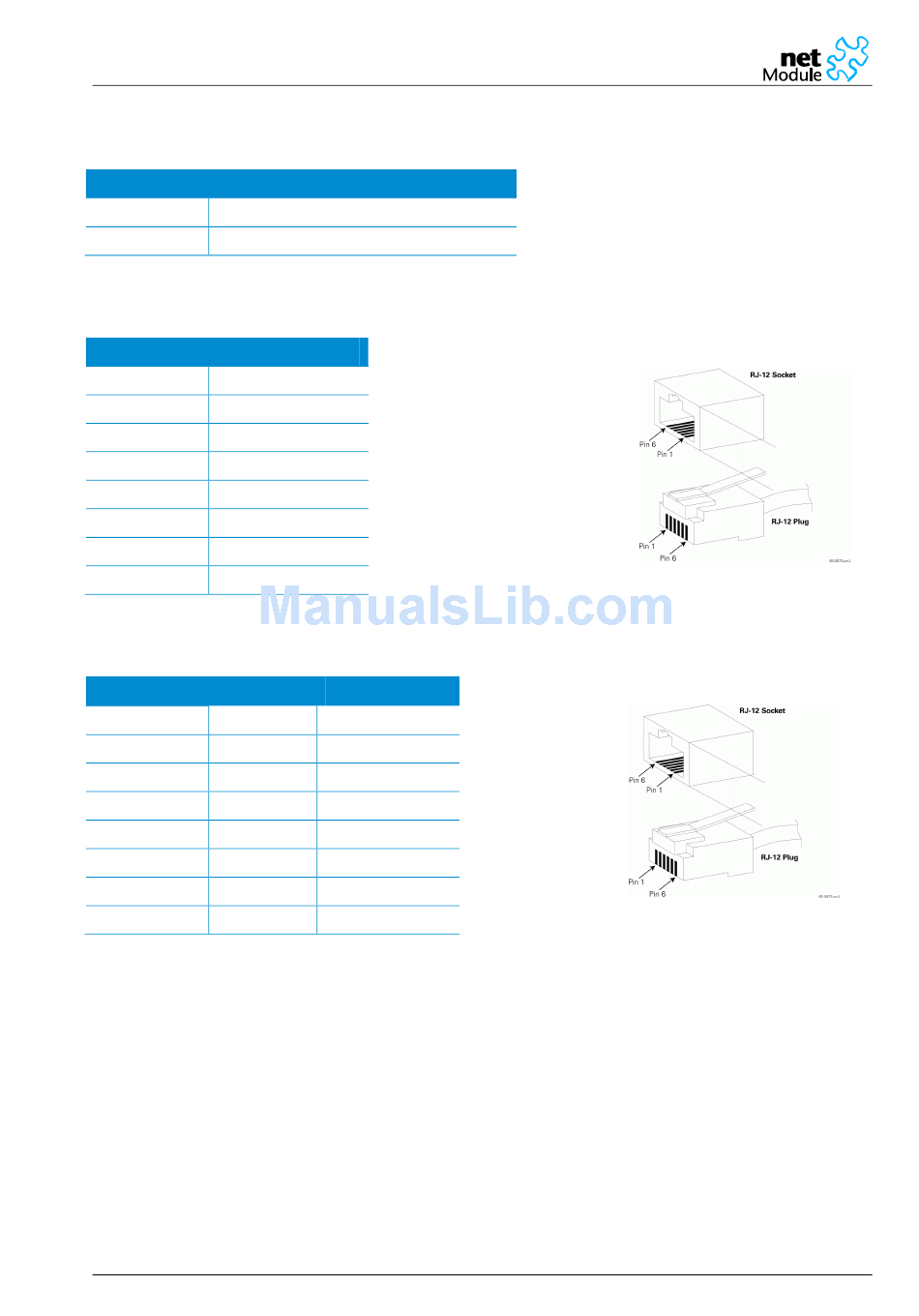

Figure 4: RJ45
Figure 5: RJ45
13/111
