Nb2600R; Operating Elements And Interfaces - NetModule NB2500 User Manual

2.5

NB2600R

2.5.1

Operating Elements and Interfaces

All connectors and status indicators are located at the front panel

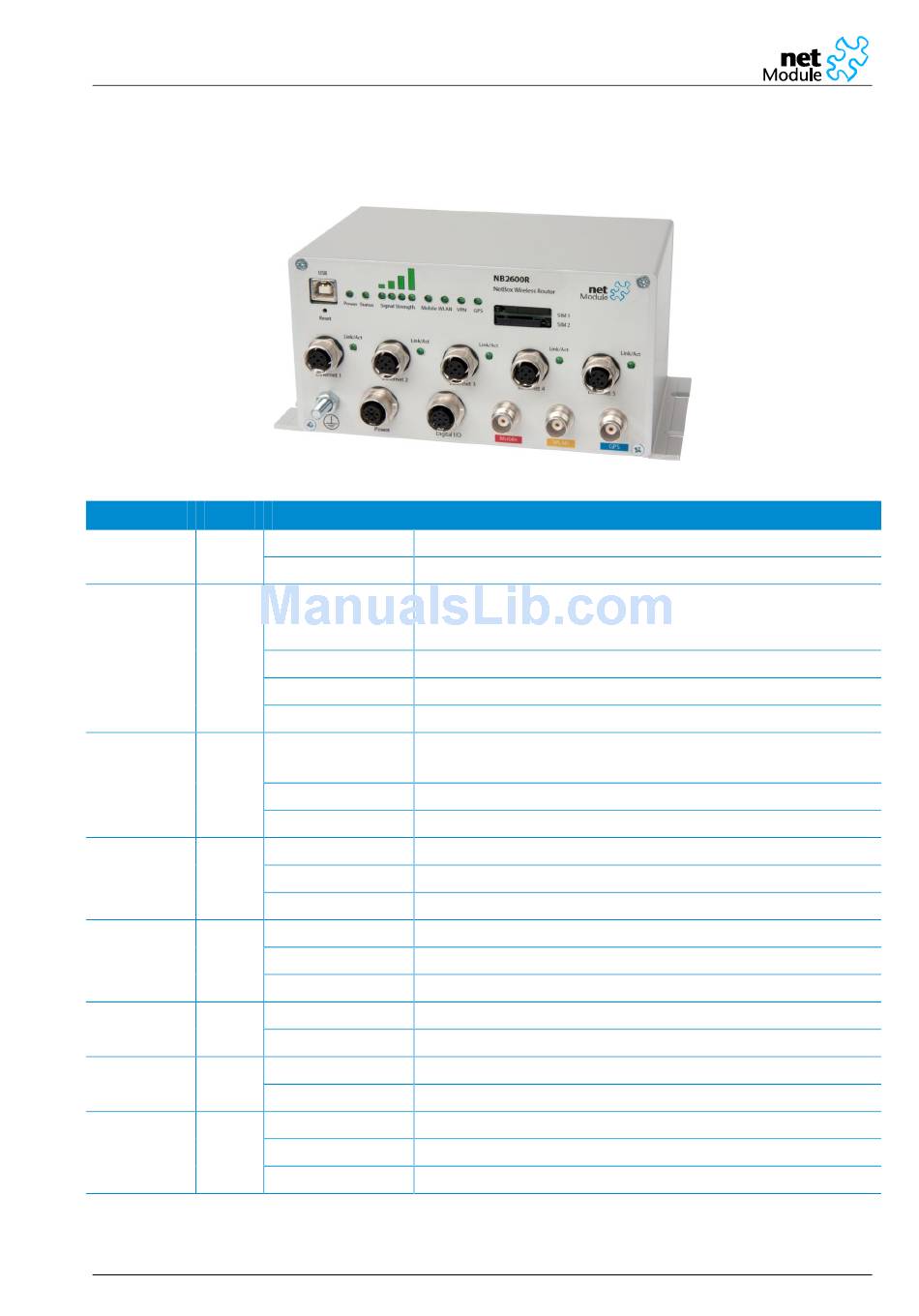

The following table describes the indicators on the front panel:
Label Color
Power green
Status green
Signal green
Strength
Mobile green
(UMTS / GSM)
WLAN green
VPN green
GPS green
Link/Activity green
(Ethernet
Ports)
Table 8: NB2600R indicators on the front panel
User Manual NetBox Wireless Routers
26 October 2011
State Function
on The device is powered
off Power is missing
blinking slowly This indicates one of the following conditions: 1) the device is start-
ing up, 2) loading a new configuration, 3) factory reset initiated by
Web Manager
on The device is ready
blinking fast Restart triggered by watchdog
off The device does not start up
on 1 LED on: weak signal, 2 LEDs on: medium signal
3 LEDs on: strong signal, 4 LEDs on: very strong signal
off No or insufficient signal
running Software update
blinking slowly Mobile connection is being established
on Mobile network connection is up
off Mobile network connection is down
blinking slowly Mobile connection is being established
on WLAN connection is up
off WLAN connection is down
on VPN connection is up
off VPN connection is down
on Service is enabled and valid GPS data is received and transmitted
off No GPS data transmitted (not available or service disabled)
on Physical link
off No physical link
flashing Data transmission
