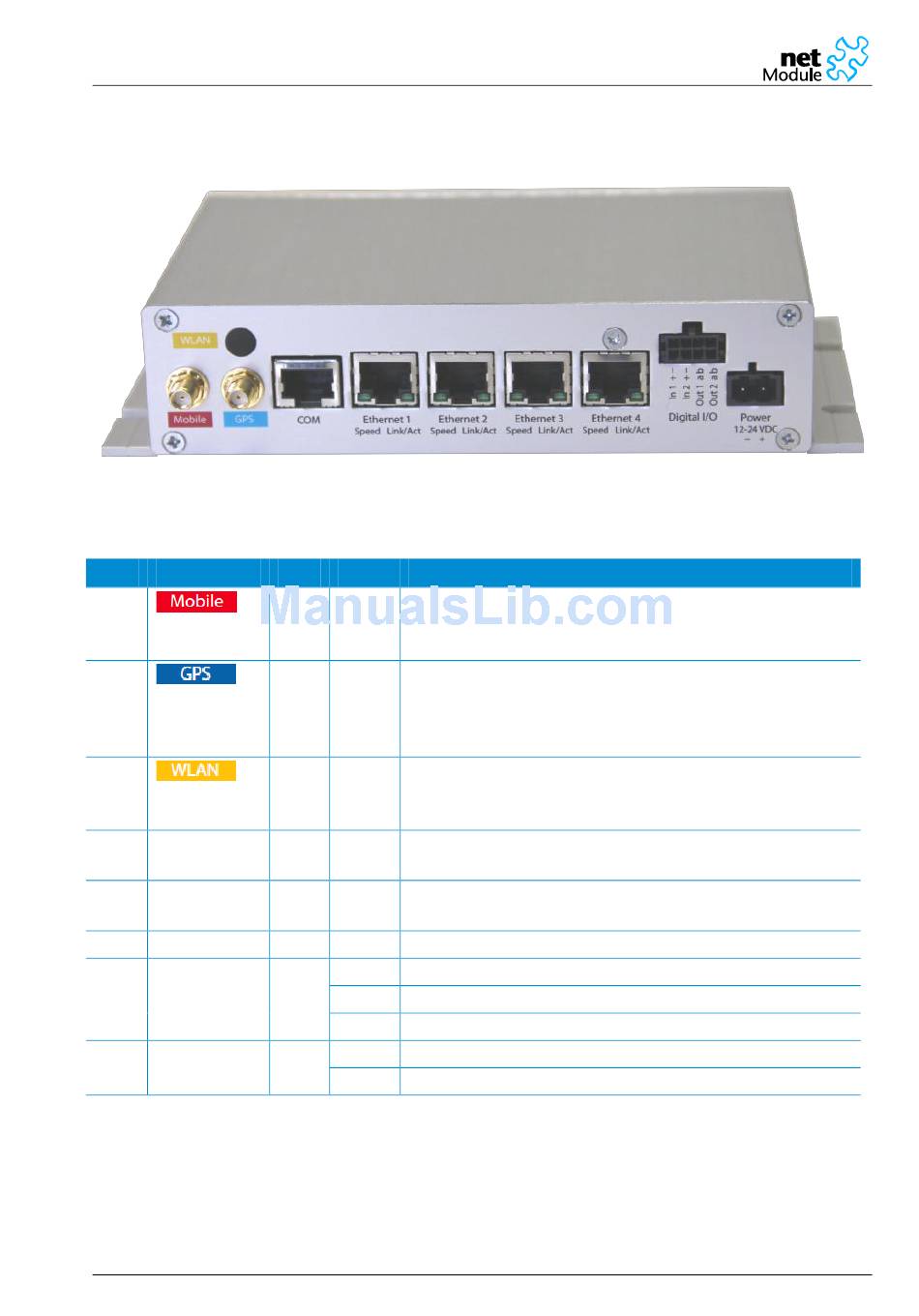

The back panel has the interfaces described in the table below:
Panel Label
Back
Back
Back
Back COM
Back Ethernet Ports
Back Power
Back Link/Activity
(Ethernet Ports)
Back Speed 10/100
(Ethernet Ports)
User Manual NetBox Wireless Routers
26 October 2011
Color State Function
- - GSM/UMTS antenna connector
Impedance: 50 Ohm
Connector: SMA female
- - GPS antenna connector
Impedance: 50 Ohm
Connector: SMA female
Support for active and passive GPS antennas
- - WLAN antenna connector
Impedance: 50 Ohm
Connector: SMA female
- - RJ45 port
RS232 (default) or RS485 (configurable)
- - 4 port Ethernet switch
The default IP address is set to 192.168.1.1.
- - Voltage feed connector (12-24 V=)
green on Physical link
off No physical link
flashing Data transmission
green on Data rate 100 MBit/s
off Data rate 10 MBit/s
Table 7: NB2600 components on the back panel
