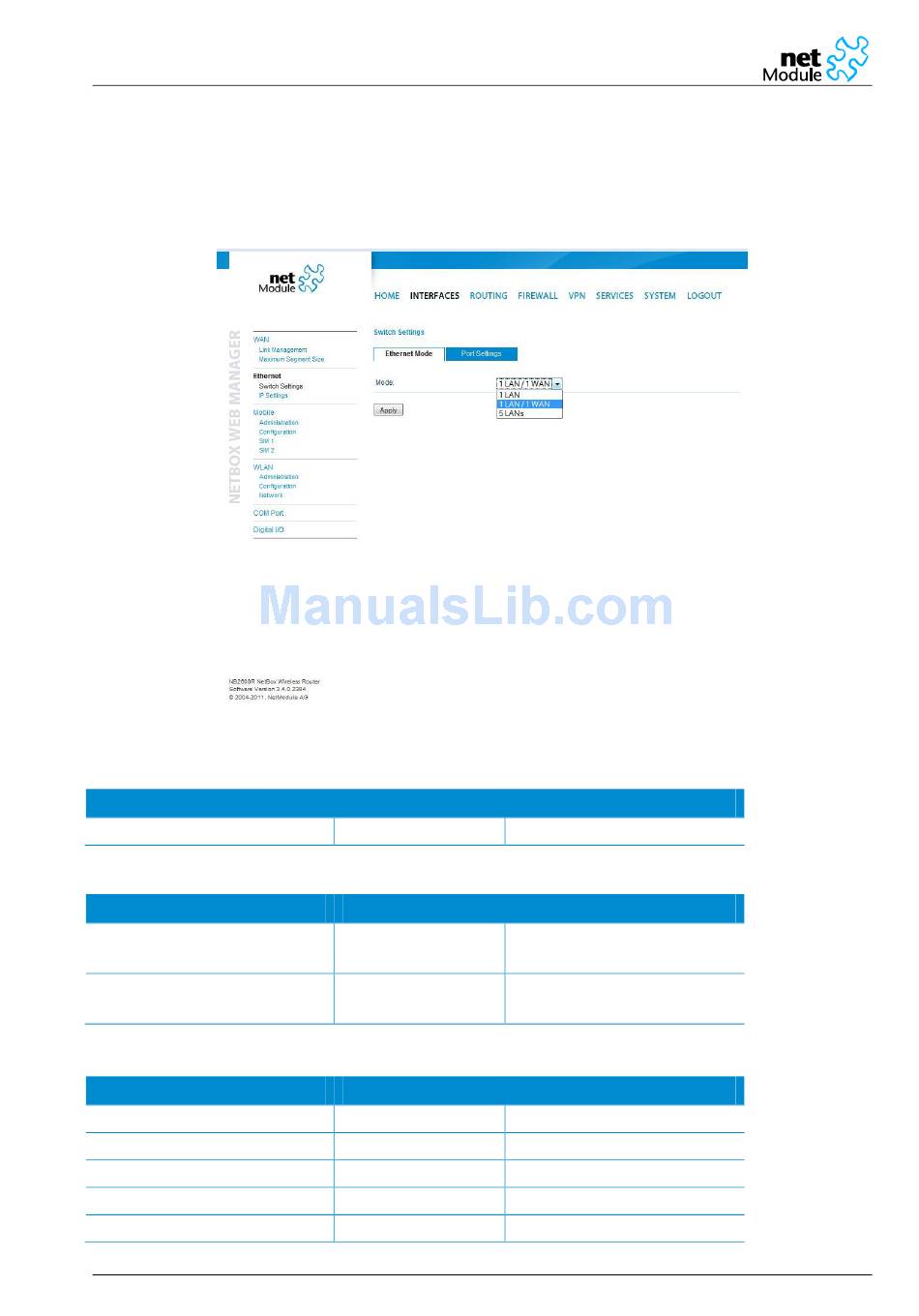

5.1.3.2 Ethernet Interface
5.1.3.2.1 Switch Settings
Choose whether you want to have all Ethernet ports in one LAN (default) or apply a subnet for every
Ethernet port or have a WAN port separated.
Depending on the Ethernet mode chosen above one network or four networks can be defined. The facto-
ry defaults are as follows:
Combined mode (LAN)
Ports Network
Port 1, 2, 3, 4, (5)
Mixed mode ( LAN / WAN)
Ports
Port 1-3 (NB2500)
Port 1-4 (NB2600R)
Port 4 (NB2500/NB2600)
Port 5 (NB2600R)
Separated mode (LANs )
Ports
Port 1
Port 2
Port 3
Port 4
Port 5 (NB2600R)
User Manual NetBox Wireless Routers
26 October 2011
NetBox IP Address
192.168.1.0/24 192.168.1.1
Network NetBox IP Address
192.168.1.0/24 192.168.1.1
192.168.2.0/24 192.168.2.1
Network NetBox IP Address
192.168.1.0/24 192.168.1.1
192.168.2.0/24 192.168.2.1
192.168.3.0/24 192.168.3.1
192.168.4.0/24 192.168.4.1
192.168.5.0/24 192.168.5.1
