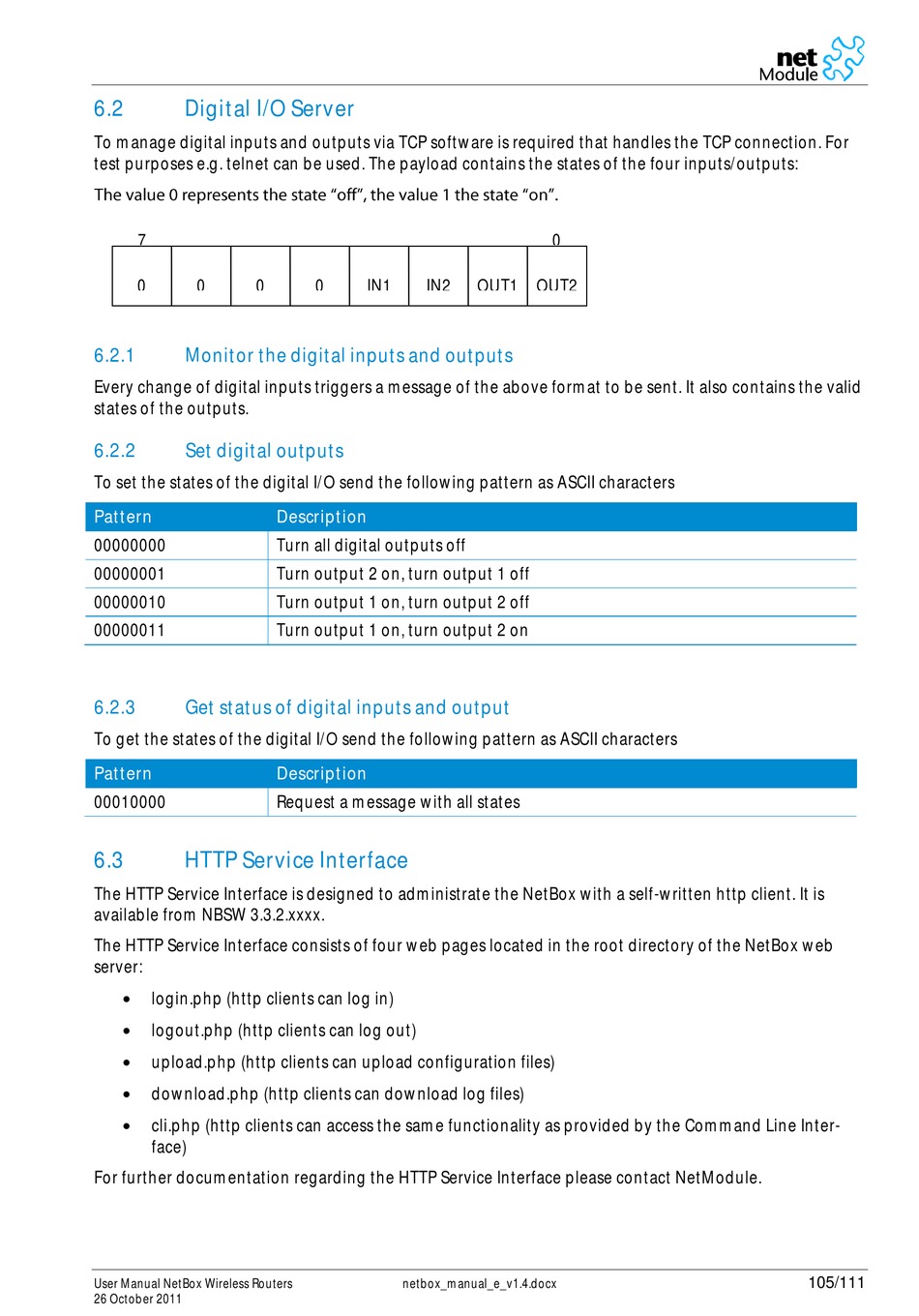

6.2

Digital I/O Server

To manage digital inputs and outputs via TCP software is required that handles the TCP connection. For
test purposes e.g. telnet can be used. The payload contains the states of the four inputs/outputs:
7
0 0 0
6.2.1

Monitor the digital inputs and outputs

Every change of digital inputs triggers a message of the above format to be sent. It also contains the valid
states of the outputs.
6.2.2

Set digital outputs

To set the states of the digital I/O send the following pattern as ASCII characters
Pattern
00000000
00000001
00000010
00000011
6.2.3

Get status of digital inputs and output

To get the states of the digital I/O send the following pattern as ASCII characters
Pattern
00010000
6.3

HTTP Service Interface

The HTTP Service Interface is designed to administrate the NetBox with a self-written http client. It is
available from NBSW 3.3.2.xxxx.
The HTTP Service Interface consists of four web pages located in the root directory of the NetBox web
server:

login.php (http clients can log in)

logout.php (http clients can log out)

upload.php (http clients can upload configuration files)

download.php (http clients can download log files)

cli.php (http clients can access the same functionality as provided by the Command Line Inter-
face)
For further documentation regarding the HTTP Service Interface please contact NetModule.
User Manual NetBox Wireless Routers
26 October 2011
0 IN1 IN2
Description
Turn all digital outputs off
Turn output 2 on, turn output 1 off
Turn output 1 on, turn output 2 off
Turn output 1 on, turn output 2 on
Description
Request a message with all states
netbox_manual_e_v1.4.docx
0
OUT1 OUT2
