10 Snap the two cover plates back into place.
Washing module installation
USB connector types
The MicroCal iTC
with different connector types. You have been supplied with two cables that have Type
A and Type B connector ends.
An additional cable has been supplied that has Type A and Type B (mini) connector ends.

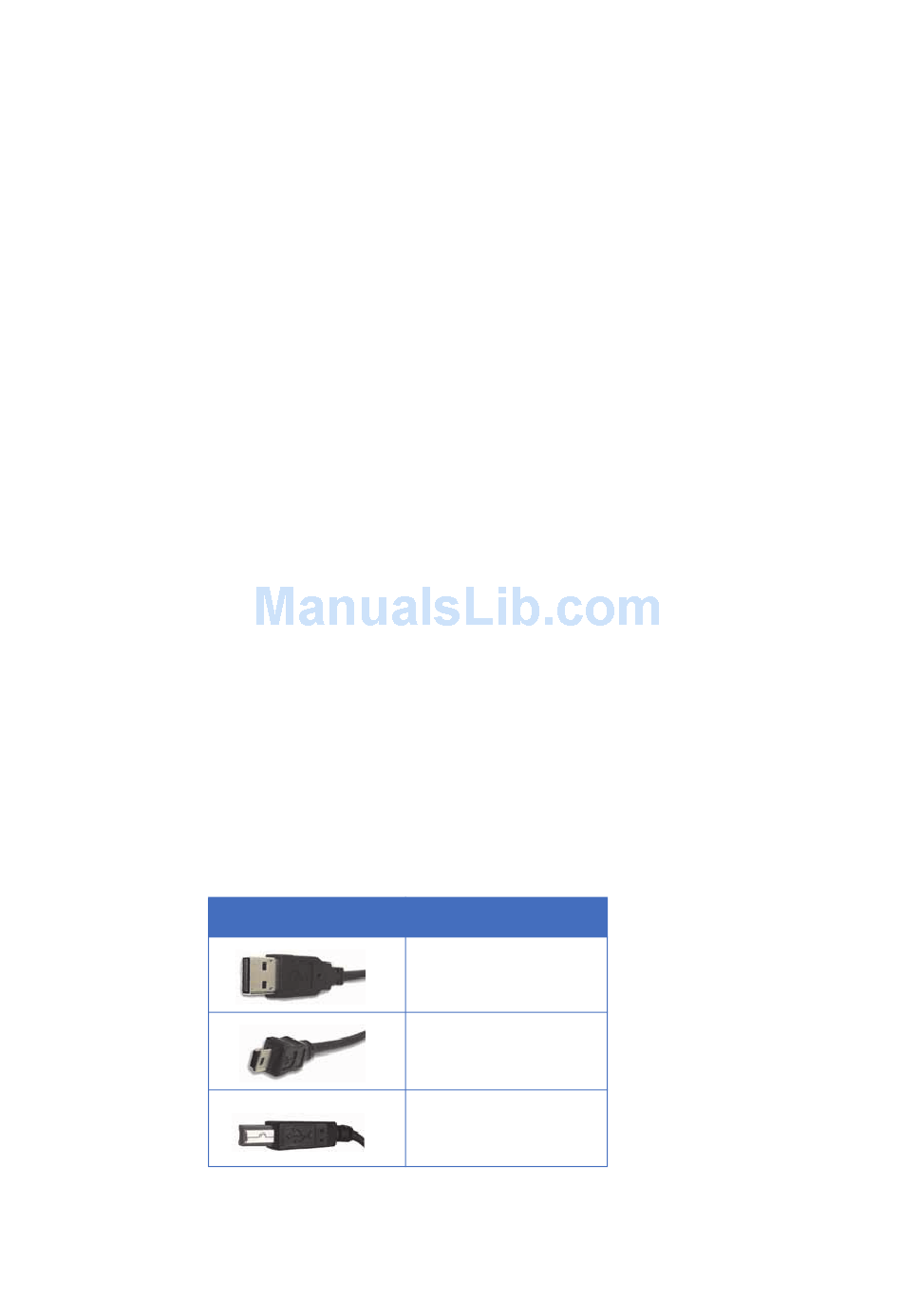

Table 3-3. Cable connectors.
Connector
MicroCal iTC Operating Instructions 28-9639-77 AA
200
Attach the tower with the washers and screws. Do not seat the screws but leave
them just slightly loose enough to slide the injector around for alignment in step 5.
Carefully insert the pipette into the lock ring. Ensure that the pipette is fully seated
and the black cable is parallel with the arm before tightening the screw (below).
Very carefully insert the pipette into the cell. You may need to move the injector a
small amount to achieve this, and avoid bending the syringe.
Align the pipette in the center of the port such that the pipette slides in/out of the
cell easily and the spaces on both sides of the pipette are even. This alignment is
critical to achieve acceptable noise levels. Hold the injection tower down firmly
with one hand while tightening the screws with the other.
Plug the pipette connector to the back of the injector tower riser and tighten the
lock screws with a 0.05 inch hex driver (1.3mm).
Lift the black locking clip on the front of the instrument on the interconnection
board behind the faceplate. Insert the ribbon cable from the injection mechanism
until it seats.
Alternately push the locking clip down to hold the cable in place.
cell and Washing Module connect to the host PC through USB ports
200
Description
Type A
Type B (mini)
Type B
Installation 3
Set up 3.4
